Warm Dimming
Watt
Optics
Lumen delivered
Efficacy
Driver code
1800 K-3000 K
Up to:
1-10V
DALI
20 W
M 65°/67° Very wide
Up to: 2008 lm
95 lm/W
V.30426.0000
D.30446.0000
Tunable White
Watt
Optics
Lumen delivered (lm)
Efficacy
Driver code
2700 K-6500 K
Up to:
DALI
23 W
M 65°/67° Very wide
1753 - 2025 lm
75 - 90 lm/W
D.30426.TW00

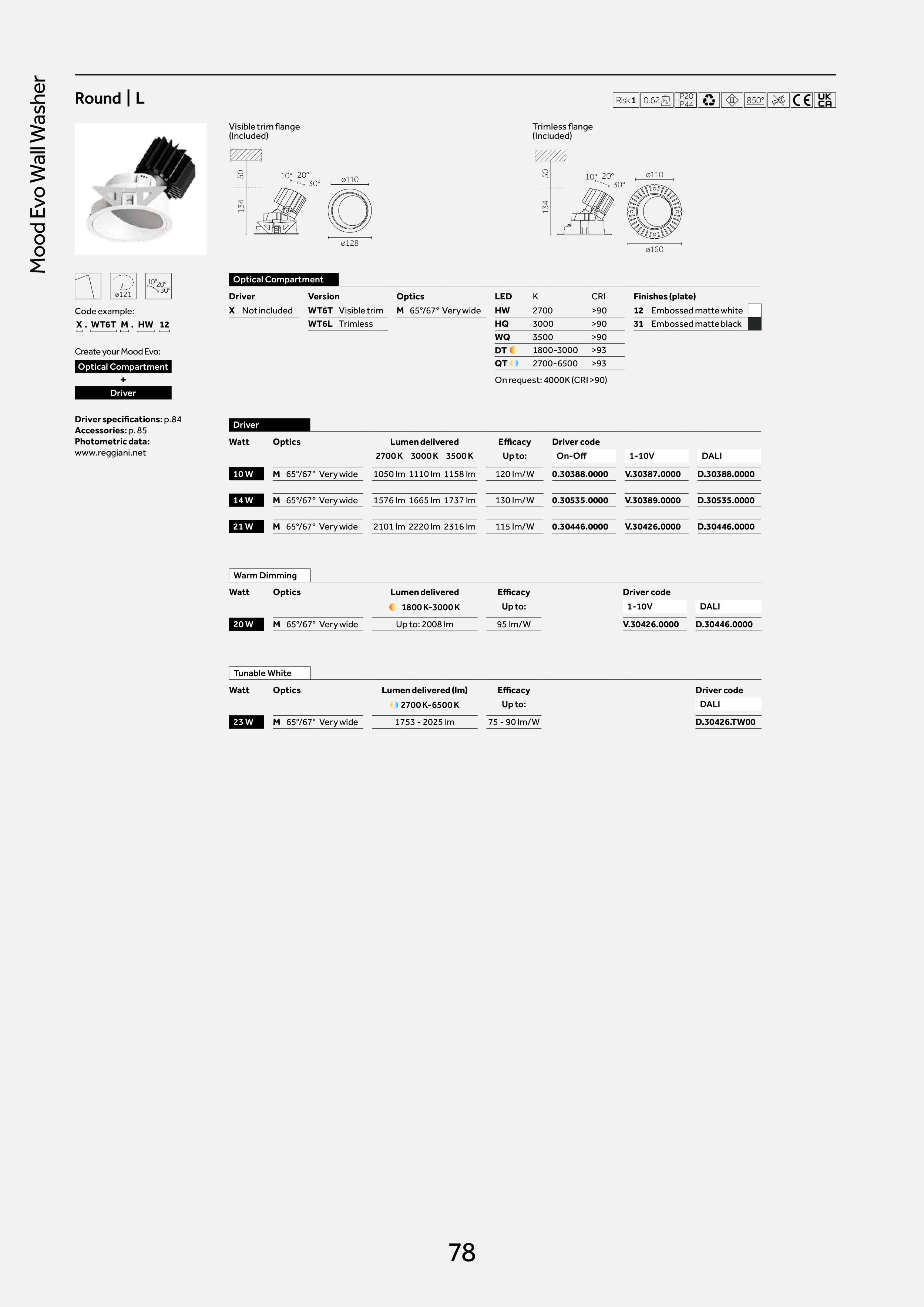

Round | L
Risk 1 0.62 Kg
IP20
IP44
850°
Visible trim flange
(Included)
Trimless flange
(Included)
ø128
ø110
134
10° 20°
30°
50
ø160
ø110
134
10° 20°
30°
50
ø121
10°20°
30°
Code example:
X . WT6T M . HW 12
Create your Mood Evo:
Optical Compartment
+
Driver
Driver specifications: p.84
Accessories: p. 85
Photometric data:
www.reggiani.net
Optical Compartment
Driver
Version
Optics
LED
K
CRI
Finishes (plate)
X Not included
WT6T Visible trim
M 65°/67° Very wide
HW
2700
>90
12
Embossed matte white
WT6L Trimless
HQ
3000
>90
31
Embossed matte black
WQ
3500
>90
DT
1800-3000
>93
QT
2700-6500
>93
On request: 4000K (CRI >90)
Driver
Watt
Optics
Lumen delivered
Efficacy
Driver code
2700 K
3000 K
3500 K
Up to:
On-Off
1-10V
DALI
10 W
M 65°/67° Very wide
1050 lm 1110 lm 1158 lm
120 lm/W
0.30388.0000
V.30387.0000
D.30388.0000
14 W
M 65°/67° Very wide
1576 lm 1665 lm 1737 lm
130 lm/W
0.30535.0000
V.30389.0000
D.30535.0000
21 W
M 65°/67° Very wide
2101 lm 2220 lm 2316 lm
115 lm/W
0.30446.0000
V.30426.0000
D.30446.0000
78
Mood Evo Wall Washer
