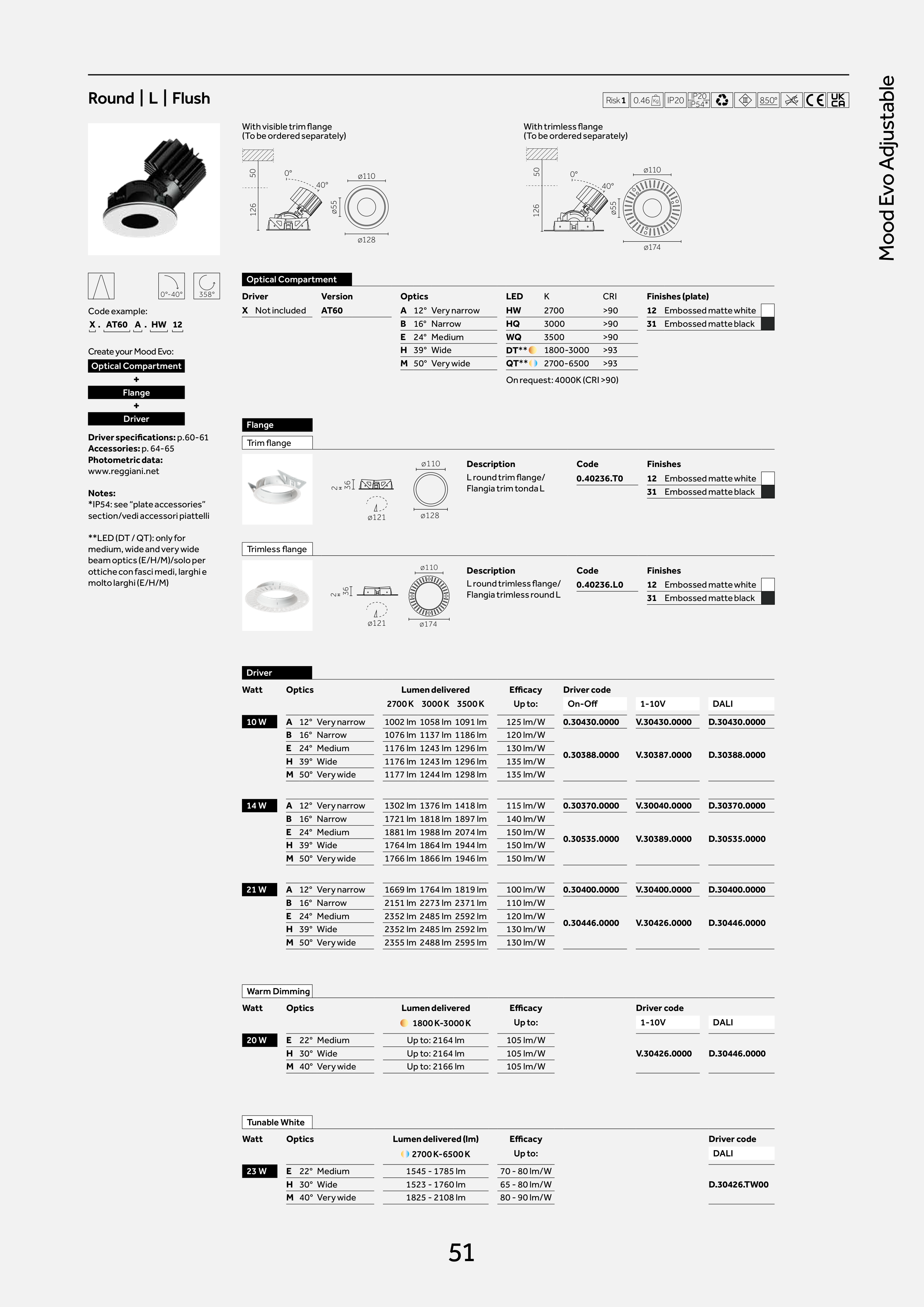

Round | L | Flush
Risk 1 0.46 Kg IP20
IP20
IP54*
850°
With visible trim flange
(To be ordered separately)
With trimless flange
(To be ordered separately)
ø55
ø128
ø110
126
0°
40°
50
ø55
ø174
ø110
126
0°
40°
50
0°-40°
358°
Code example:
X . AT60 A . HW 12
Create your Mood Evo:
Optical Compartment
+
Flange
+
Driver
Driver specifications: p.60-61
Accessories: p. 64-65
Photometric data:
www.reggiani.net
Notes:
*IP54: see “plate accessories”
section/vedi accessori piattelli
**LED (DT / QT): only for
medium, wide and very wide
beam optics (E/H/M)/solo per
ottiche con fasci medi, larghi e
molto larghi (E/H/M)
Optical Compartment
Driver
Version
Optics
LED
K
CRI
Finishes (plate)
X Not included
AT60
A 12° Very narrow
HW
2700
>90
12
Embossed matte white
B
16° Narrow
HQ
3000
>90
31
Embossed matte black
E
24° Medium
WQ
3500
>90
H 39° Wide
DT**
1800-3000
>93
M 50° Very wide
QT**
2700-6500
>93
On request: 4000K (CRI >90)
Driver
Watt
Optics
Lumen delivered
Efficacy
Driver code
2700 K
3000 K
3500 K
Up to:
On-Off
1-10V
DALI
10 W
A 12° Very narrow
1002 lm 1058 lm 1091 lm
125 lm/W
0.30430.0000
V.30430.0000
D.30430.0000
B
16° Narrow
1076 lm 1137 lm 1186 lm
120 lm/W
0.30388.0000
V.30387.0000
D.30388.0000
E
24° Medium
1176 lm 1243 lm 1296 lm
130 lm/W
H 39° Wide
1176 lm 1243 lm 1296 lm
135 lm/W
M 50° Very wide
1177 lm 1244 lm 1298 lm
135 lm/W
Warm Dimming
Watt
Optics
Lumen delivered
Efficacy
Driver code
1800 K-3000 K
Up to:
1-10V
DALI
20 W
E
22° Medium
Up to: 2164 lm
105 lm/W
V.30426.0000
D.30446.0000
H 30° Wide
Up to: 2164 lm
105 lm/W
M 40° Very wide
Up to: 2166 lm
105 lm/W
Tunable White
Watt
Optics
Lumen delivered (lm)
Efficacy
Driver code
2700 K-6500 K
Up to:
DALI
23 W
E
22° Medium
1545 - 1785 lm
70 - 80 lm/W
D.30426.TW00
H 30° Wide
1523 - 1760 lm
65 - 80 lm/W
M 40° Very wide
1825 - 2108 lm
80 - 90 lm/W
14 W
A 12° Very narrow
1302 lm 1376 lm 1418 lm
115 lm/W
0.30370.0000
V.30040.0000
D.30370.0000
B
16° Narrow
1721 lm 1818 lm 1897 lm
140 lm/W
0.30535.0000
V.30389.0000
D.30535.0000
E
24° Medium
1881 lm 1988 lm 2074 lm
150 lm/W
H 39° Wide
1764 lm 1864 lm 1944 lm
150 lm/W
M 50° Very wide
1766 lm 1866 lm 1946 lm
150 lm/W
21 W
A 12° Very narrow
1669 lm 1764 lm 1819 lm
100 lm/W
0.30400.0000
V.30400.0000
D.30400.0000
B
16° Narrow
2151 lm 2273 lm 2371 lm
110 lm/W
0.30446.0000
V.30426.0000
D.30446.0000
E
24° Medium
2352 lm 2485 lm 2592 lm
120 lm/W
H 39° Wide
2352 lm 2485 lm 2592 lm
130 lm/W
M 50° Very wide
2355 lm 2488 lm 2595 lm
130 lm/W
Flange
Trim flange
ø110
ø128
36
2
Description
Code
Finishes
L round trim flange/
Flangia trim tonda L
0.40236.T0
12
Embossed matte white
31
Embossed matte black
Trimless flange
ø110
ø174
36
2
Description
Code
Finishes
L round trimless flange/
Flangia trimless round L
0.40236.L0
12
Embossed matte white
31
Embossed matte black
ø121
ø121
51
Mood Evo Adjustable
