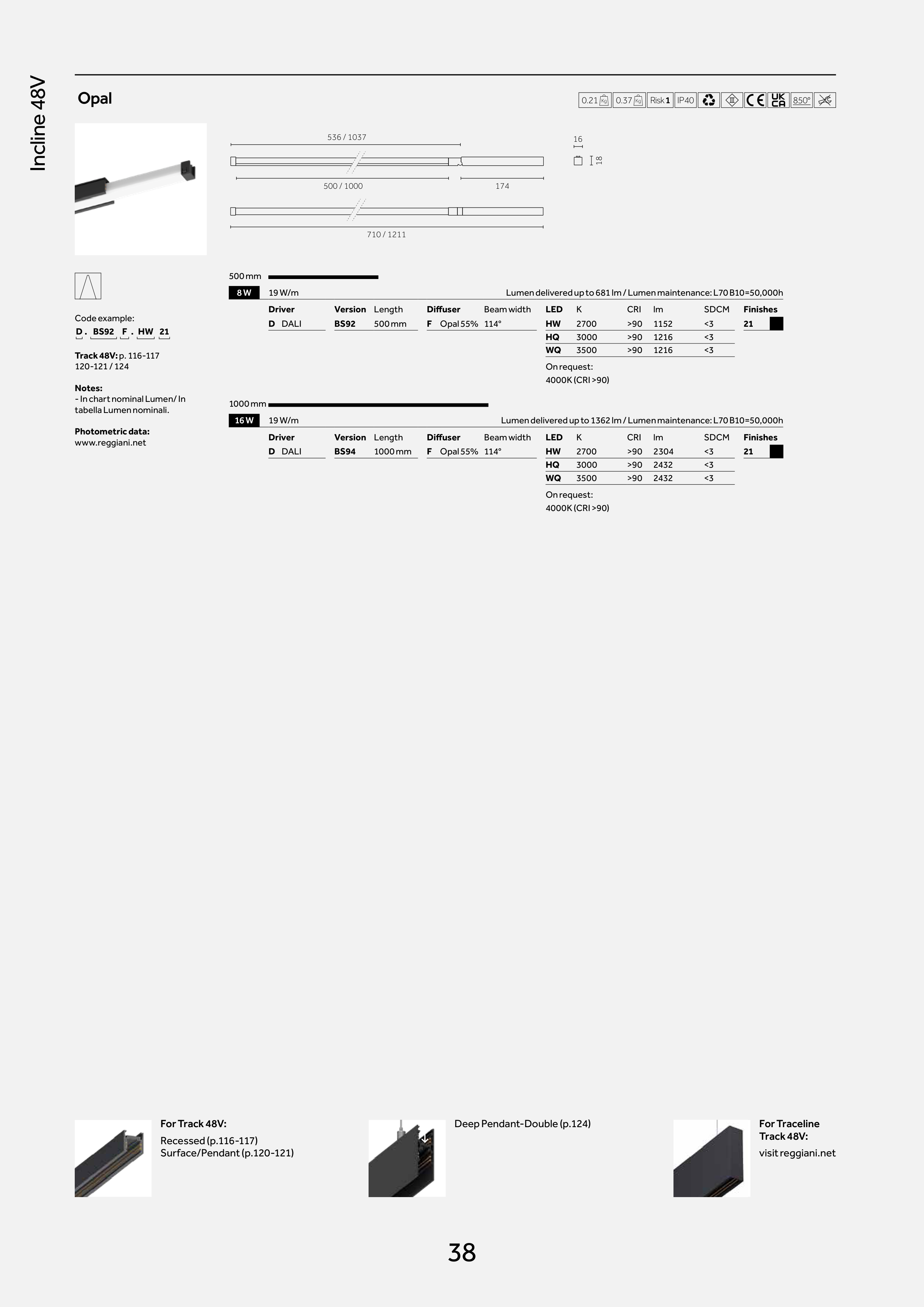

Code example:
D . BS92
F . HW 21
Track 48V: p. 116-117
120-121 / 124
Notes:
- In chart nominal Lumen/ In
tabella Lumen nominali.
Photometric data:
www.reggiani.net
500 mm
8 W
19 W/m
Lumen delivered up to 681 lm / Lumen maintenance: L70 B10=50,000h
Driver
Version
Length
Diffuser
Beam width
LED
K
CRI
lm
SDCM
Finishes
D DALI
BS92
500 mm
F
Opal 55% 114°
HW
2700
>90
1152
<3
21
HQ
3000
>90
1216
<3
WQ
3500
>90
1216
<3
On request:
4000K (CRI >90)
1000 mm
16 W
19 W/m
Lumen delivered up to 1362 lm / Lumen maintenance: L70 B10=50,000h
Driver
Version
Length
Diffuser
Beam width
LED
K
CRI
lm
SDCM
Finishes
D DALI
BS94
1000 mm
F
Opal 55% 114°
HW
2700
>90
2304
<3
21
HQ
3000
>90
2432
<3
WQ
3500
>90
2432
<3
On request:
4000K (CRI >90)
For Traceline
Track 48V:
visit reggiani.net
For Track 48V:
Recessed (p.116-117)
Surface/Pendant (p.120-121)
Opal
0.21 Kg 0.37 Kg Risk 1 IP40
850°
174
710 / 1211
500 / 1000
536 / 1037
16
18
Deep Pendant-Double (p.124)
Incline 48V
38
