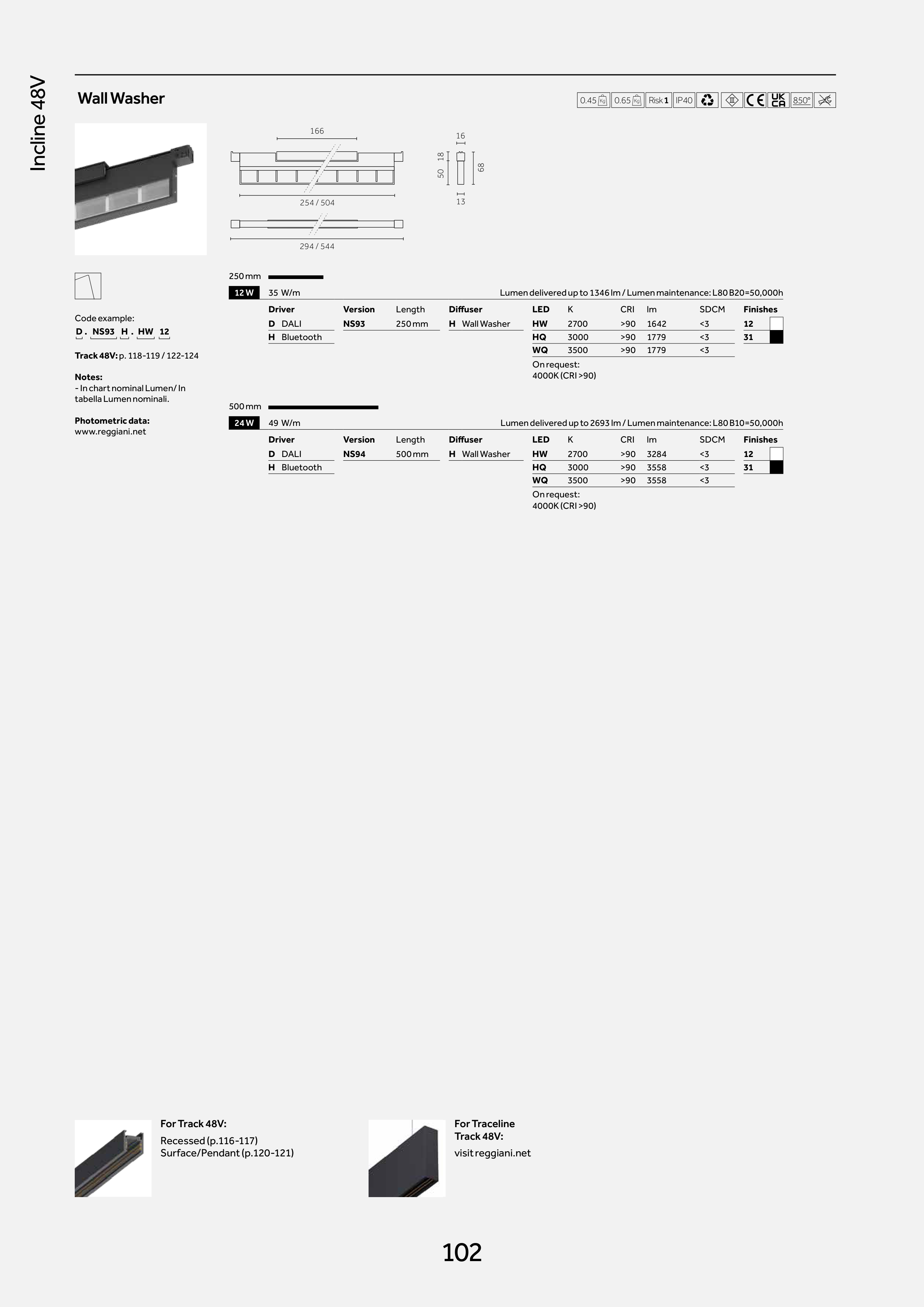

Wall Washer
0.45 Kg 0.65 Kg Risk 1 IP40
850°
254 / 504
294 / 544
166
16
13
68
50
18
250 mm
12 W
35 W/m
Lumen delivered up to 1346 lm / Lumen maintenance: L80 B20=50,000h
Driver
Version
Length
Diffuser
LED
K
CRI
lm
SDCM
Finishes
D DALI
NS93
250 mm
H Wall Washer
HW
2700
>90
1642
<3
12
H Bluetooth
HQ
3000
>90
1779
<3
31
WQ
3500
>90
1779
<3
On request:
4000K (CRI >90)
500 mm
24 W
49 W/m
Lumen delivered up to 2693 lm / Lumen maintenance: L80 B10=50,000h
Driver
Version
Length
Diffuser
LED
K
CRI
lm
SDCM
Finishes
D DALI
NS94
500 mm
H Wall Washer
HW
2700
>90
3284
<3
12
H Bluetooth
HQ
3000
>90
3558
<3
31
WQ
3500
>90
3558
<3
On request:
4000K (CRI >90)
For Traceline
Track 48V:
visit reggiani.net
For Track 48V:
Recessed (p.116-117)
Surface/Pendant (p.120-121)
Code example:
D . NS93 H . HW 12
Track 48V: p. 118-119 / 122-124
Notes:
- In chart nominal Lumen/ In
tabella Lumen nominali.
Photometric data:
www.reggiani.net
Incline 48V
