PMMA Lens
(11°,48°)
Micro Prismatic
(70°/90°)
Dark Performance
UGR<19 (42°)
Wall Washer
Dark Grid
UGR<16 (60°/20°)
Dark Frosted
(90°)
Opal High Uniformity
(110°)

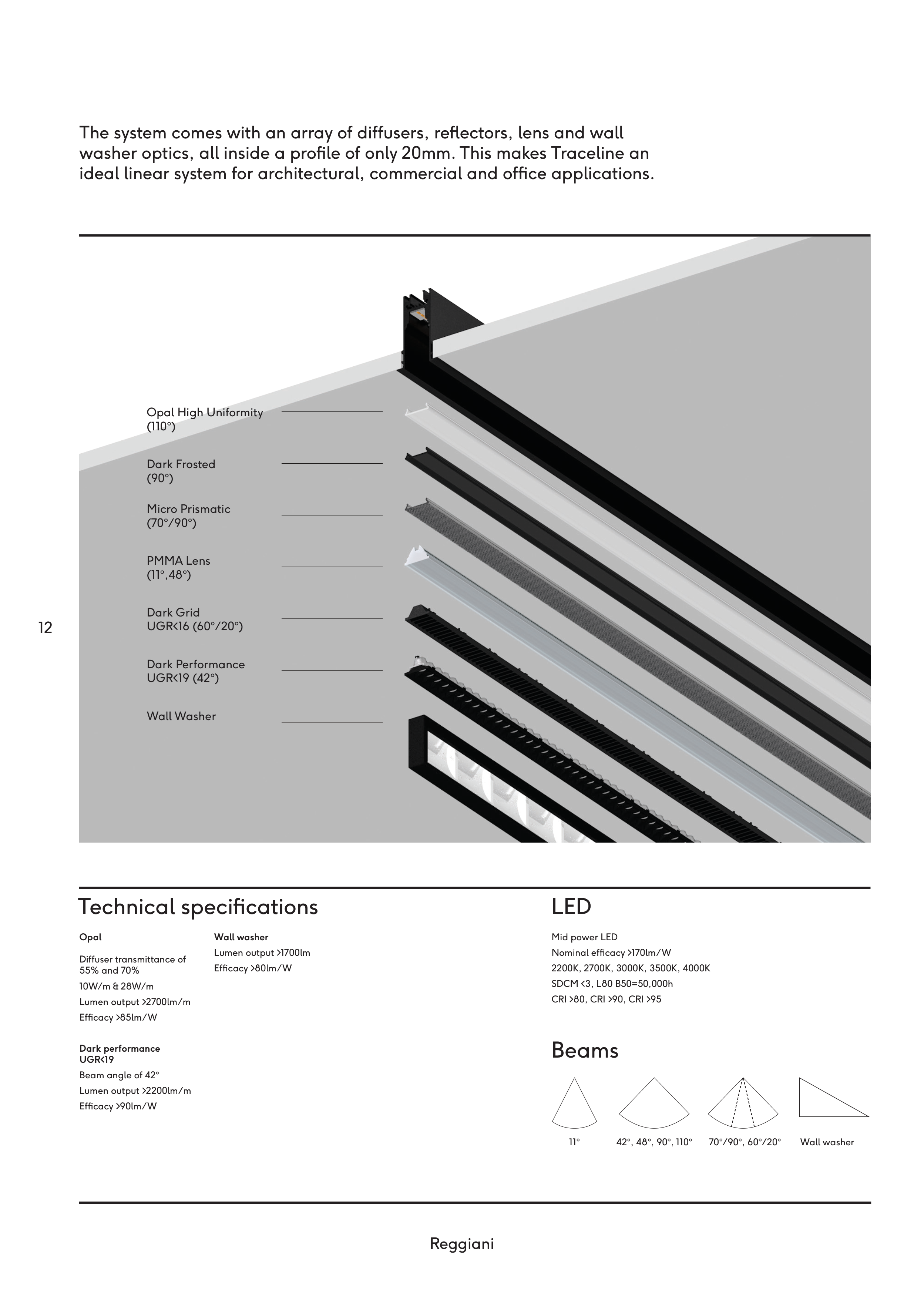

The system comes with an array of diffusers, reflectors, lens and wall
washer optics, all inside a profile of only 20mm. This makes Traceline an
ideal linear system for architectural, commercial and office applications.
Beams
Technical specifications
Opal
Diffuser transmittance of
55% and 70%
10W/m & 28W/m
Lumen output >2700lm/m
Efficacy >85lm/W
Dark performance
UGR<19
Beam angle of 42°
Lumen output >2200lm/m
Efficacy >90lm/W
Wall washer
Lumen output >1700lm
Efficacy >80lm/W
11°
42°, 48°, 90°, 110°
70°/90°, 60°/20°
Wall washer
LED
Mid power LED
Nominal efficacy >170lm/W
2200K, 2700K, 3000K, 3500K, 4000K
SDCM <3, L80 B50=50,000h
CRI >80, CRI >90, CRI >95
12
