Ø 60 mm | H 255 mm
Risk 1 0.57 Kg IP20
850°
255
ø60
166
18
9 W
COB LED
Lumen delivered up to 772 lm / Lumen maintenance: L90 B10=50,000h
Driver
Version
Optics
LED
K
CRI
lm
SDCM
Finishes
0
On-Off
XN62
A 8°
Very narrow
HW
2700
>90
725
<3
12
D
DALI
HQ
3000
>90
730
<3
31
H
Bluetooth
HN
4000
>90
840
<3
Special
On request:
3500K (CRI >90)
01
B0
C0
D0
E0
L0
M0
N0
T1
COB LED
Lumen delivered up to 1115 lm / Lumen maintenance: L90 B10=50,000h
Driver
Version
Optics
LED
K
CRI
lm
SDCM
Finishes
0
On-Off
ZN62
B
12° Narrow
HW
2700
>90
1050
<2
12
D
DALI
E
20° Medium
HQ
3000
>90
1100
<2
31
H
Bluetooth
H 32° Wide
HN
4000
>90
1300
<3
K -
Without optics
On request:
3500K (CRI >90)
Code example:
0 . XN62 A . HW 12
Accessories: p.86
Track 48V: p. 159-170
Notes:
- In chart nominal Lumen/ In
tabella Lumen nominali.
- Cable length 3mt/ Lunghezza
cavo 3mt
Photometric data:
www.reggiani.net
For Track 48V:
Recessed (p.162-163)
Surface/Pendant (p.166-167)
For Traceline - Track 48V:
visit reggiani.net
Deep Recessed (p.164-165)
Deep Surface/Pendant (p.168)
Deep Pendant-Indirect (p.169)
Deep Pendant-Double (p.170)
86

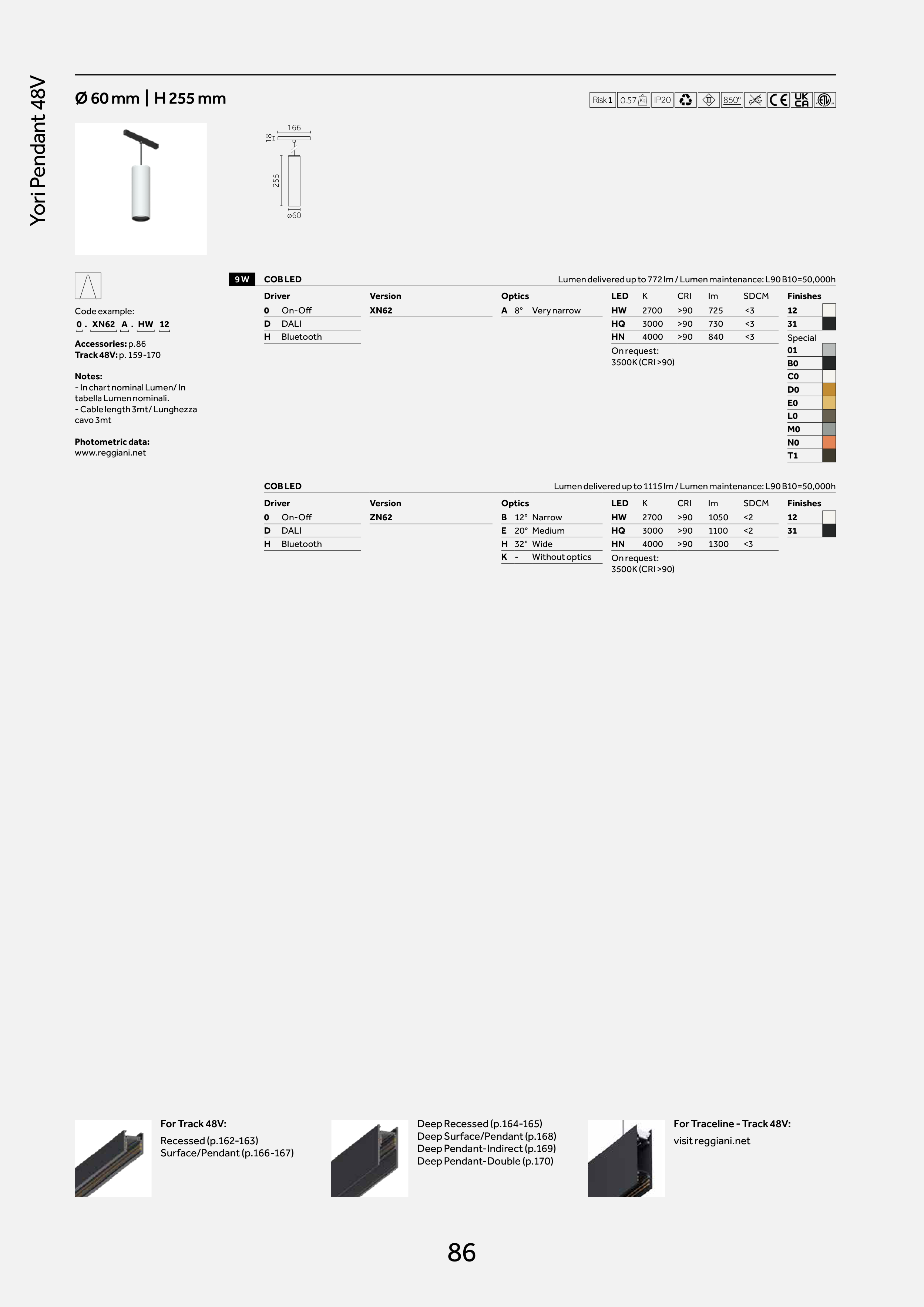

Yori Pendant 48V
