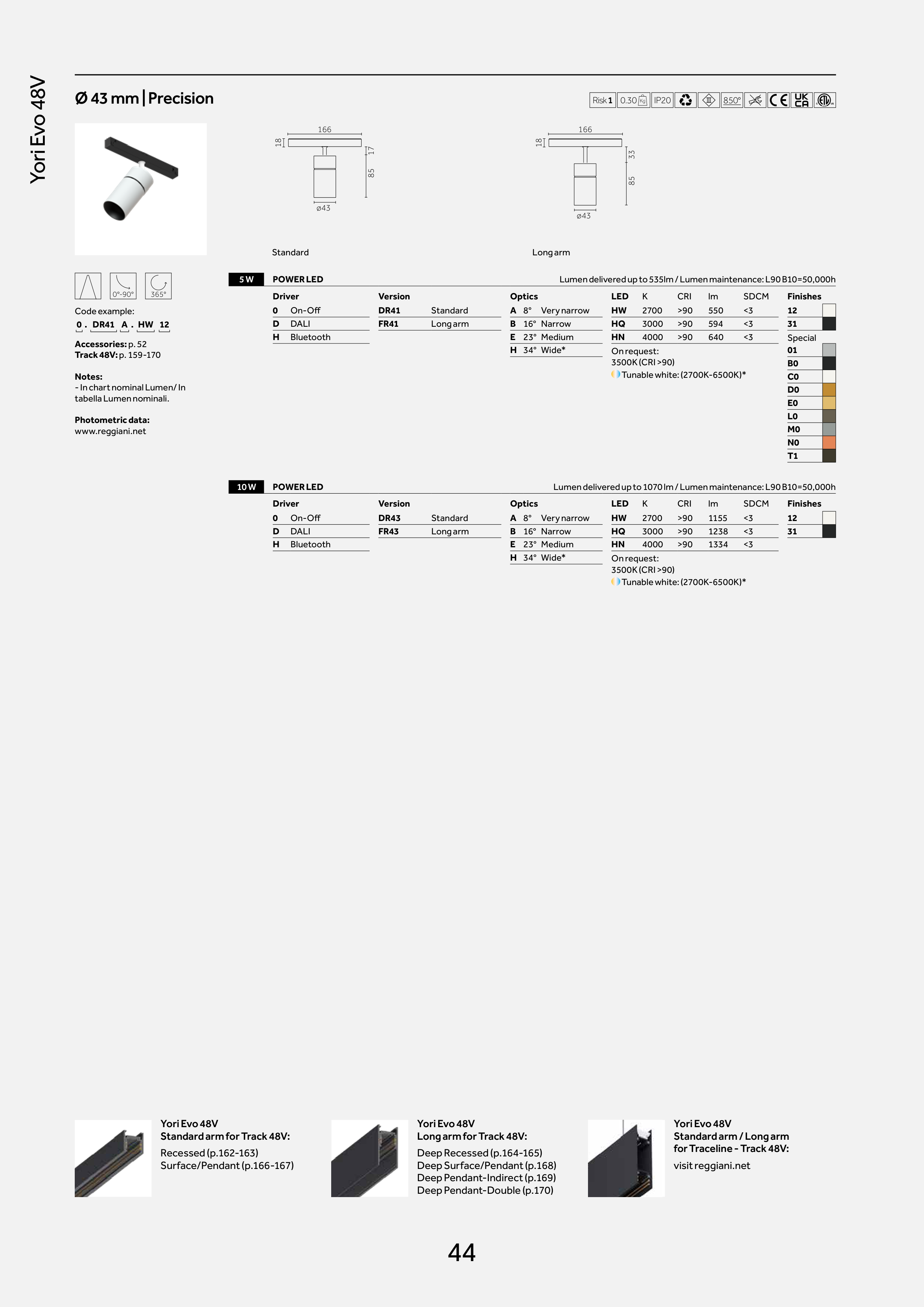

Yori Evo 48V
Ø 43 mm | Precision
Risk 1 0.30 Kg IP20
850°
17
166
85
ø43
18
85
ø43
33
166
18
Standard
Long arm
5 W
POWER LED
Lumen delivered up to 535lm / Lumen maintenance: L90 B10=50,000h
Driver
Version
Optics
LED
K
CRI
lm
SDCM
Finishes
0
On-Off
DR41
Standard
A 8°
Very narrow
HW
2700
>90
550
<3
12
D
DALI
FR41
Long arm
B
16° Narrow
HQ
3000
>90
594
<3
31
H
Bluetooth
E
23° Medium
HN
4000
>90
640
<3
Special
H 34° Wide*
On request:
3500K (CRI >90)
Tunable white: (2700K-6500K)*
01
B0
C0
D0
E0
L0
M0
N0
T1
0°-90°
365°
Code example:
0 . DR41 A . HW 12
Accessories: p. 52
Track 48V: p. 159-170
Notes:
- In chart nominal Lumen/ In
tabella Lumen nominali.
Photometric data:
www.reggiani.net
10 W
POWER LED
Lumen delivered up to 1070 lm / Lumen maintenance: L90 B10=50,000h
Driver
Version
Optics
LED
K
CRI
lm
SDCM
Finishes
0
On-Off
DR43
Standard
A 8°
Very narrow
HW
2700
>90
1155
<3
12
D
DALI
FR43
Long arm
B
16° Narrow
HQ
3000
>90
1238
<3
31
H
Bluetooth
E
23° Medium
HN
4000
>90
1334
<3
H 34° Wide*
On request:
3500K (CRI >90)
Tunable white: (2700K-6500K)*
Yori Evo 48V
Standard arm for Track 48V:
Recessed (p.162-163)
Surface/Pendant (p.166-167)
Yori Evo 48V
Standard arm / Long arm
for Traceline - Track 48V:
visit reggiani.net
Yori Evo 48V
Long arm for Track 48V:
Deep Recessed (p.164-165)
Deep Surface/Pendant (p.168)
Deep Pendant-Indirect (p.169)
Deep Pendant-Double (p.170)
