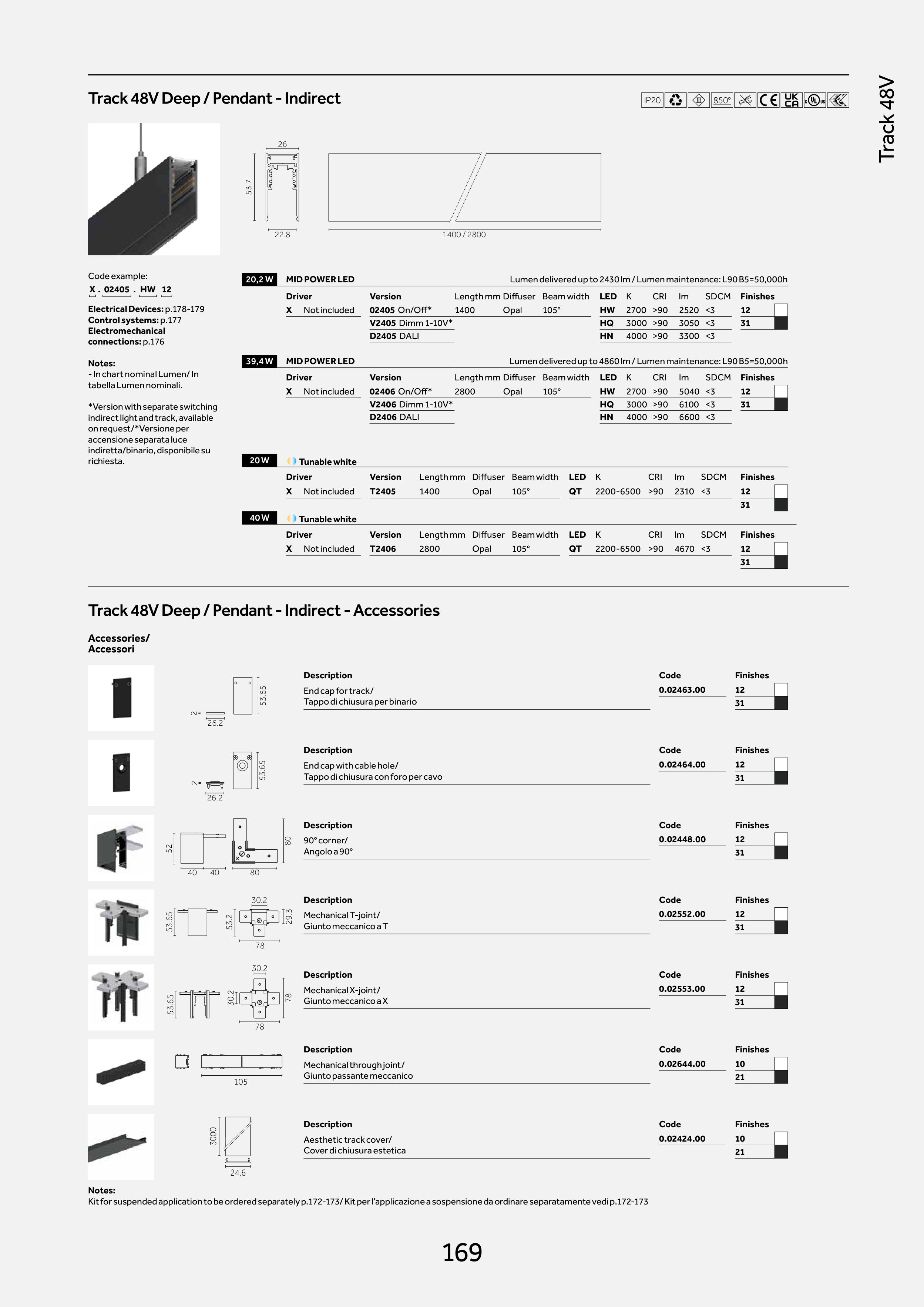

Track 48V Deep / Pendant - Indirect
IP20
850°
53.7
22.8
1400 / 2800
26
Code example:
X . 02405 . HW 12
Electrical Devices: p.178-179
Control systems: p.177
Electromechanical
connections: p.176
Notes:
- In chart nominal Lumen/ In
tabella Lumen nominali.
*Version with separate switching
indirect light and track, available
on request/*Versione per
accensione separata luce
indiretta/binario, disponibile su
richiesta.
Accessories/
Accessori
2
53.65
26.2
Description
Code
Finishes
End cap for track/
Tappo di chiusura per binario
0.02463.00
12
31
2
53.65
26.2
Description
Code
Finishes
End cap with cable hole/
Tappo di chiusura con foro per cavo
0.02464.00
12
31
80
40
40
80
52
Description
Code
Finishes
90° corner/
Angolo a 90°
0.02448.00
12
31
78
53.2
53.65
29.3
30.2
Description
Code
Finishes
Mechanical T-joint/
Giunto meccanico a T
0.02552.00
12
31
53.65
78
30.2
30.2
78
Description
Code
Finishes
Mechanical X-joint/
Giunto meccanico a X
0.02553.00
12
31
105
Description
Code
Finishes
Mechanical through joint/
Giunto passante meccanico
0.02644.00
10
21
3000
24.6
Description
Code
Finishes
Aesthetic track cover/
Cover di chiusura estetica
0.02424.00
10
21
Notes:
Kit for suspended application to be ordered separately p.172-173/ Kit per l’applicazione a sospensione da ordinare separatamente vedi p.172-173
Track 48V Deep / Pendant - Indirect - Accessories
20,2 W
MID POWER LED
Lumen delivered up to 2430 lm / Lumen maintenance: L90 B5=50,000h
Driver
Version
Length mm Diffuser Beam width
LED
K
CRI
lm
SDCM
Finishes
X
Not included
02405 On/Off*
1400
Opal
105°
HW
2700 >90
2520 <3
12
V2405 Dimm 1-10V*
HQ
3000 >90
3050 <3
31
D2405 DALI
HN
4000 >90
3300 <3
39,4 W
MID POWER LED
Lumen delivered up to 4860 lm / Lumen maintenance: L90 B5=50,000h
Driver
Version
Length mm Diffuser Beam width
LED
K
CRI
lm
SDCM
Finishes
X
Not included
02406 On/Off*
2800
Opal
105°
HW
2700 >90
5040 <3
12
V2406 Dimm 1-10V*
HQ
3000 >90
6100 <3
31
D2406 DALI
HN
4000 >90
6600 <3
20 W
Tunable white
Driver
Version
Length mm Diffuser Beam width
LED
K
CRI
lm
SDCM
Finishes
X
Not included
T2405
1400
Opal
105°
QT
2200-6500
>90
2310 <3
12
31
40 W
Tunable white
Driver
Version
Length mm Diffuser Beam width
LED
K
CRI
lm
SDCM
Finishes
X
Not included
T2406
2800
Opal
105°
QT
2200-6500
>90
4670 <3
12
31
169
