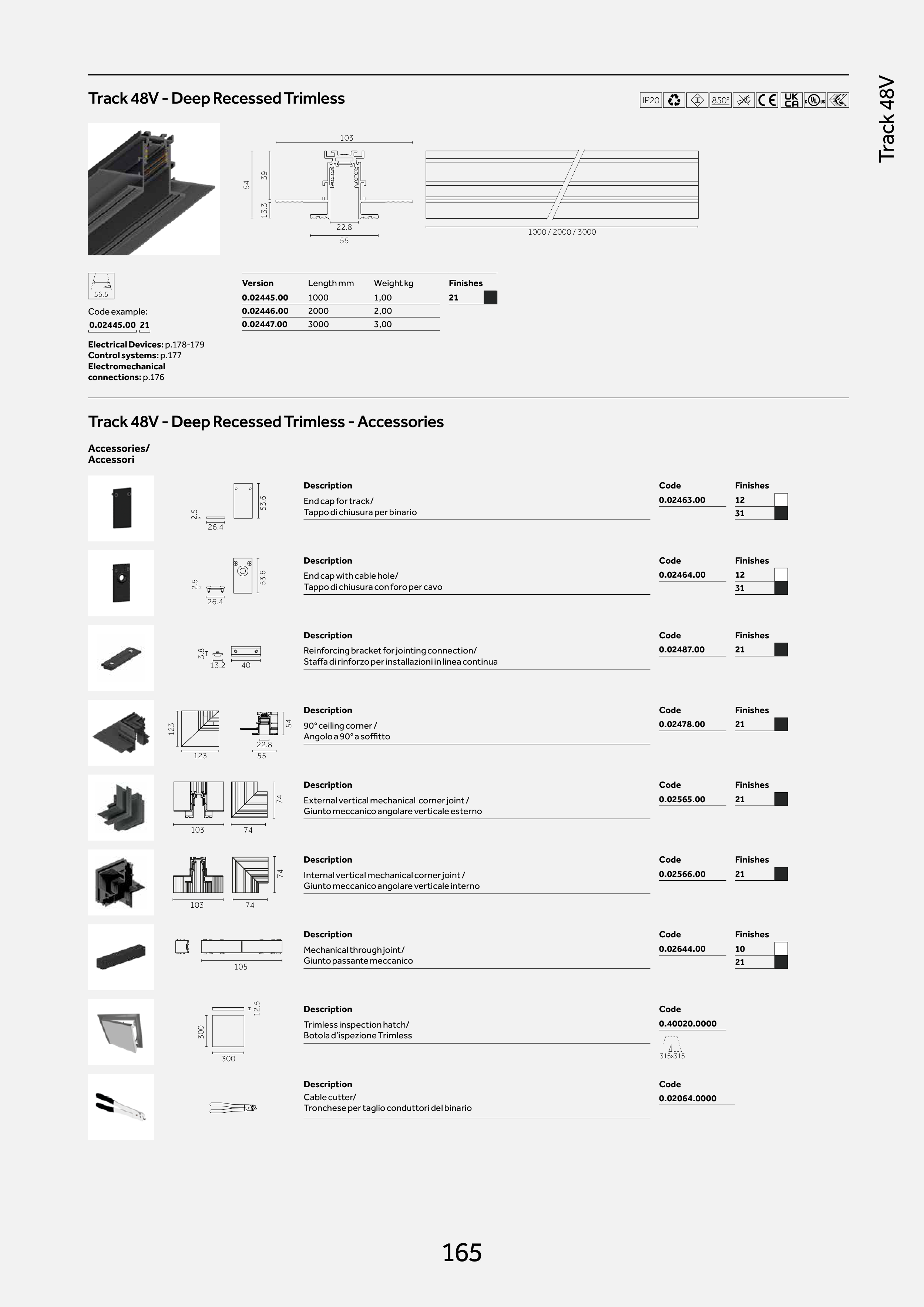

Track 48V - Deep Recessed Trimless
IP20
850°
1000 / 2000 / 3000
54
22.8
103
55
13.3
39
Track 48V - Deep Recessed Trimless - Accessories
Accessories/
Accessori
2.5
53.6
26.4
Description
Code
Finishes
End cap for track/
Tappo di chiusura per binario
0.02463.00
12
31
2.5
53.6
26.4
Description
Code
Finishes
End cap with cable hole/
Tappo di chiusura con foro per cavo
0.02464.00
12
31
3.8
13.2
40
Description
Code
Finishes
Reinforcing bracket for jointing connection/
Staffa di rinforzo per installazioni in linea continua
0.02487.00
21
54
22.8
55
123
123
Description
Code
Finishes
90° ceiling corner /
Angolo a 90° a soffitto
0.02478.00
21
74
74
103
Description
Code
Finishes
External vertical mechanical corner joint /
Giunto meccanico angolare verticale esterno
0.02565.00
21
74
74
103
Description
Code
Finishes
Internal vertical mechanical corner joint /
Giunto meccanico angolare verticale interno
0.02566.00
21
105
Description
Code
Finishes
Mechanical through joint/
Giunto passante meccanico
0.02644.00
10
21
300
300
12,5
Description
Code
Trimless inspection hatch/
Botola d’ispezione Trimless
0.40020.0000
315x315
Description
Code
Cable cutter/
Tronchese per taglio conduttori del binario
0.02064.0000
56,5
Code example:
0.02445.00 21
Electrical Devices: p.178-179
Control systems: p.177
Electromechanical
connections: p.176
Version
Length mm
Weight kg
Finishes
0.02445.00
1000
1,00
21
0.02446.00
2000
2,00
0.02447.00
3000
3,00
165
Track 48V
