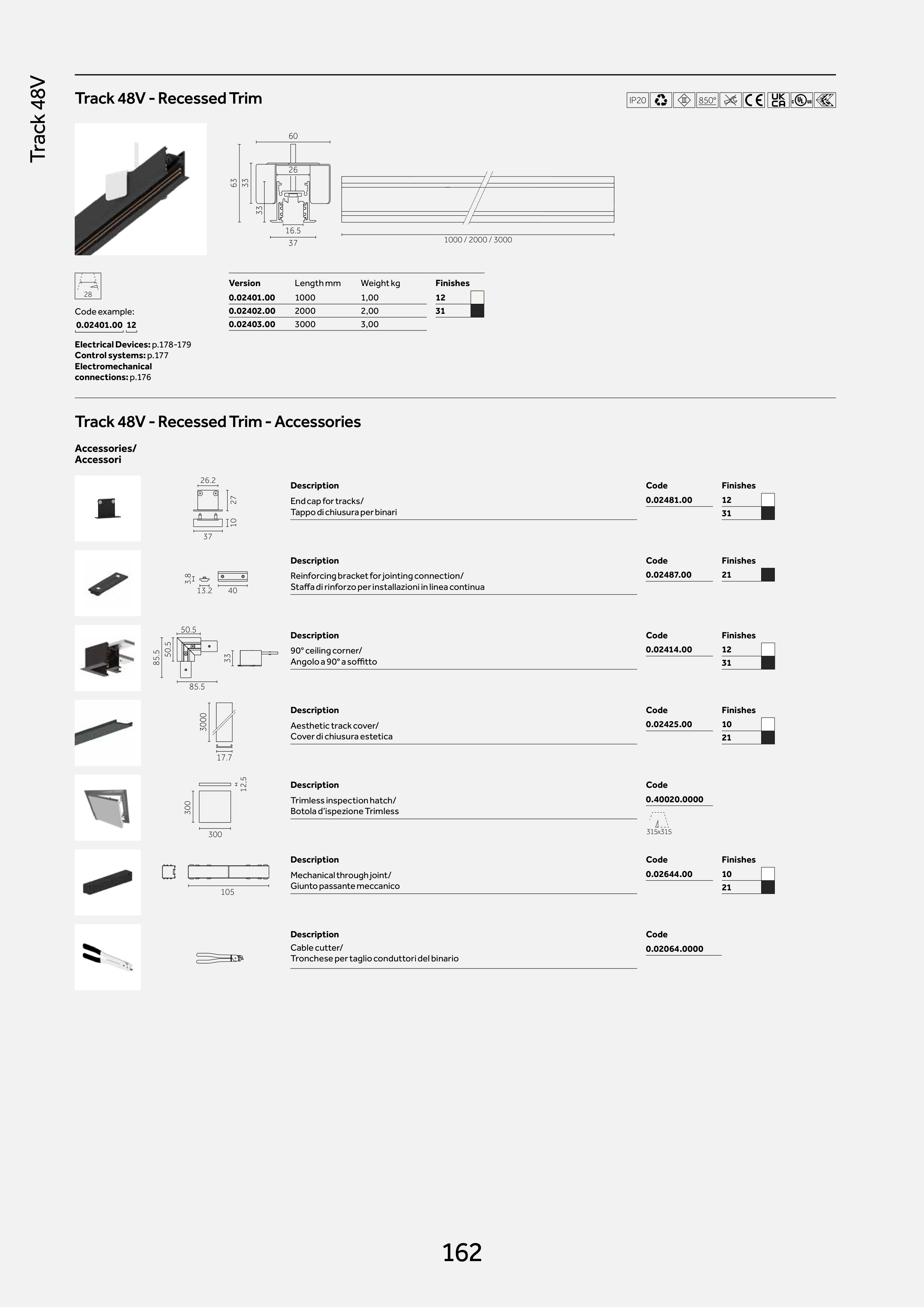

Track 48V - Recessed Trim
IP20
850°
1000 / 2000 / 3000
16.5
33
26
37
33
63
60
Version
Length mm
Weight kg
Finishes
0.02401.00
1000
1,00
12
0.02402.00
2000
2,00
31
0.02403.00
3000
3,00
Track 48V - Recessed Trim - Accessories
Accessories/
Accessori
10
37
27
26.2
Description
Code
Finishes
End cap for tracks/
Tappo di chiusura per binari
0.02481.00
12
31
3.8
13.2
40
Description
Code
Finishes
Reinforcing bracket for jointing connection/
Staffa di rinforzo per installazioni in linea continua
0.02487.00
21
85.5
85.5
33
50.5
50.5
Description
Code
Finishes
90° ceiling corner/
Angolo a 90° a soffitto
0.02414.00
12
31
3000
17.7
Description
Code
Finishes
Aesthetic track cover/
Cover di chiusura estetica
0.02425.00
10
21
300
300
12,5
Description
Code
Trimless inspection hatch/
Botola d’ispezione Trimless
0.40020.0000
315x315
105
Description
Code
Finishes
Mechanical through joint/
Giunto passante meccanico
0.02644.00
10
21
Description
Code
Cable cutter/
Tronchese per taglio conduttori del binario
0.02064.0000
28
Code example:
0.02401.00 12
Electrical Devices: p.178-179
Control systems: p.177
Electromechanical
connections: p.176
162
Track 48V
