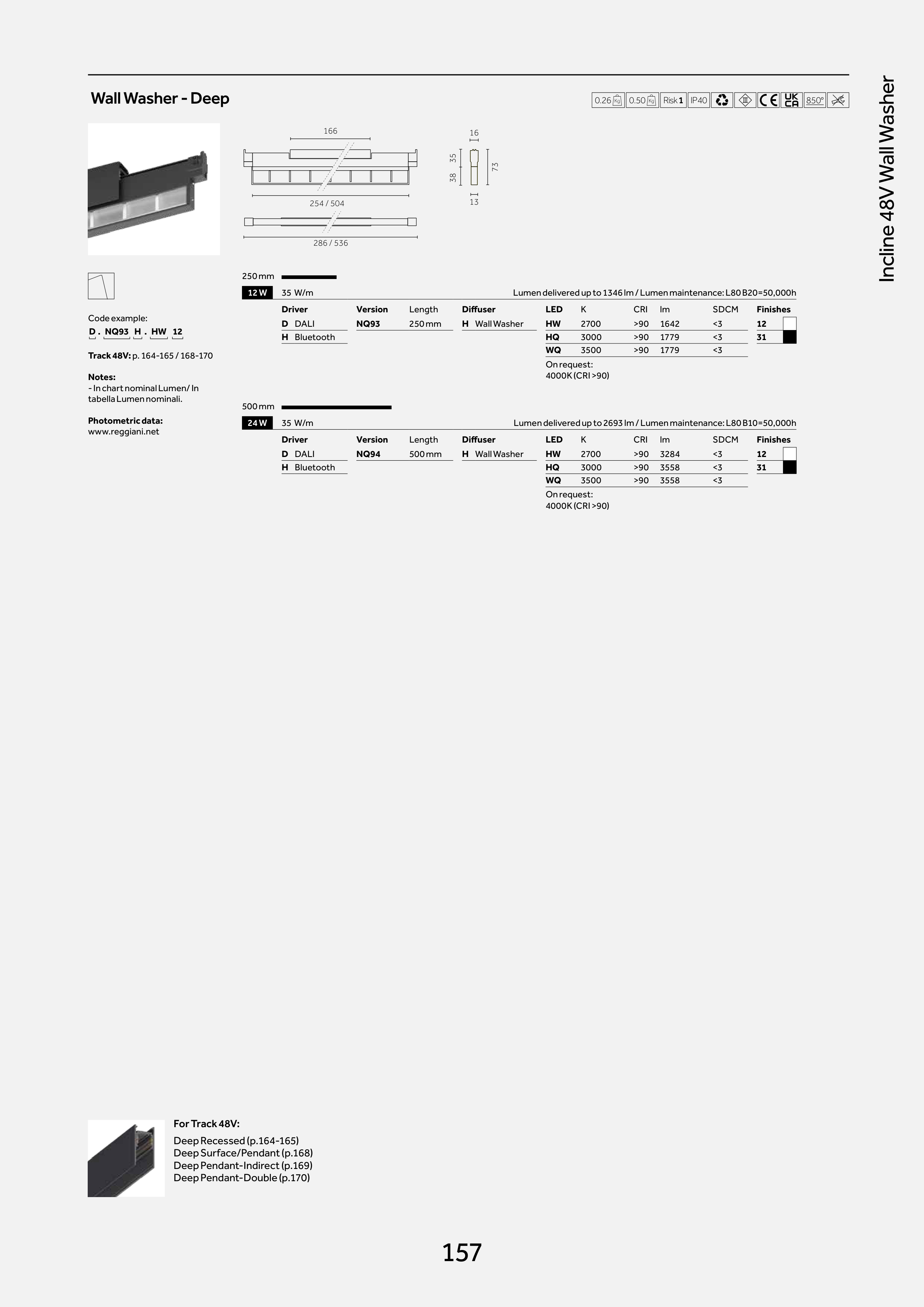

Wall Washer - Deep
0.26 Kg 0.50 Kg Risk 1 IP40
850°
16
13
73
38
35
254 / 504
166
286 / 536
Code example:
D . NQ93 H . HW 12
Track 48V: p. 164-165 / 168-170
Notes:
- In chart nominal Lumen/ In
tabella Lumen nominali.
Photometric data:
www.reggiani.net
250 mm
12 W
35 W/m
Lumen delivered up to 1346 lm / Lumen maintenance: L80 B20=50,000h
Driver
Version
Length
Diffuser
LED
K
CRI
lm
SDCM
Finishes
D DALI
NQ93
250 mm
H Wall Washer
HW
2700
>90
1642
<3
12
H Bluetooth
HQ
3000
>90
1779
<3
31
WQ
3500
>90
1779
<3
On request:
4000K (CRI >90)
500 mm
24 W
35 W/m
Lumen delivered up to 2693 lm / Lumen maintenance: L80 B10=50,000h
Driver
Version
Length
Diffuser
LED
K
CRI
lm
SDCM
Finishes
D DALI
NQ94
500 mm
H Wall Washer
HW
2700
>90
3284
<3
12
H Bluetooth
HQ
3000
>90
3558
<3
31
WQ
3500
>90
3558
<3
On request:
4000K (CRI >90)
For Track 48V:
Deep Recessed (p.164-165)
Deep Surface/Pendant (p.168)
Deep Pendant-Indirect (p.169)
Deep Pendant-Double (p.170)
157
Incline 48V Wall Washer
