141

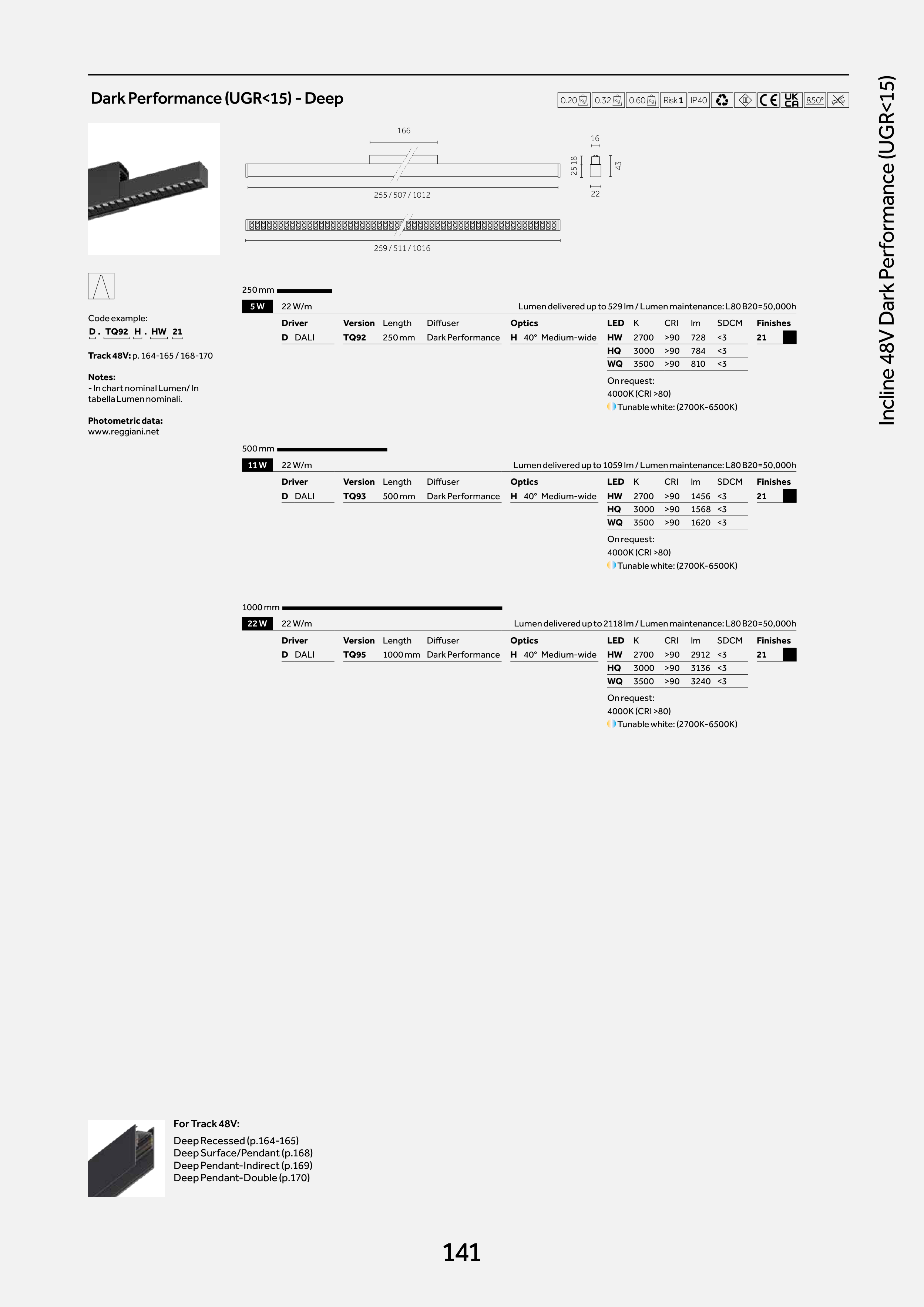

Dark Performance (UGR<15) - Deep
0.20 Kg 0.32 Kg 0.60 Kg Risk 1 IP40
850°
255 / 507 / 1012
259 / 511 / 1016
166
16
22
43
18
25
Code example:
D . TQ92 H . HW 21
Track 48V: p. 164-165 / 168-170
Notes:
- In chart nominal Lumen/ In
tabella Lumen nominali.
Photometric data:
www.reggiani.net
500 mm
11 W
22 W/m
Lumen delivered up to 1059 lm / Lumen maintenance: L80 B20=50,000h
Driver
Version
Length
Diffuser
Optics
LED
K
CRI
lm
SDCM
Finishes
D DALI
TQ93
500 mm
Dark Performance
H 40° Medium-wide
HW
2700
>90
1456 <3
21
HQ
3000
>90
1568 <3
WQ
3500
>90
1620 <3
On request:
4000K (CRI >80)
Tunable white: (2700K-6500K)
250 mm
5 W
22 W/m
Lumen delivered up to 529 lm / Lumen maintenance: L80 B20=50,000h
Driver
Version
Length
Diffuser
Optics
LED
K
CRI
lm
SDCM
Finishes
D DALI
TQ92
250 mm
Dark Performance
H 40° Medium-wide
HW
2700
>90
728
<3
21
HQ
3000
>90
784
<3
WQ
3500
>90
810
<3
On request:
4000K (CRI >80)
Tunable white: (2700K-6500K)
1000 mm
22 W
22 W/m
Lumen delivered up to 2118 lm / Lumen maintenance: L80 B20=50,000h
Driver
Version
Length
Diffuser
Optics
LED
K
CRI
lm
SDCM
Finishes
D DALI
TQ95
1000 mm Dark Performance
H 40° Medium-wide
HW
2700
>90
2912 <3
21
HQ
3000
>90
3136 <3
WQ
3500
>90
3240 <3
On request:
4000K (CRI >80)
Tunable white: (2700K-6500K)
For Track 48V:
Deep Recessed (p.164-165)
Deep Surface/Pendant (p.168)
Deep Pendant-Indirect (p.169)
Deep Pendant-Double (p.170)
141
141
Incline 48V Dark Performance (UGR<15)
