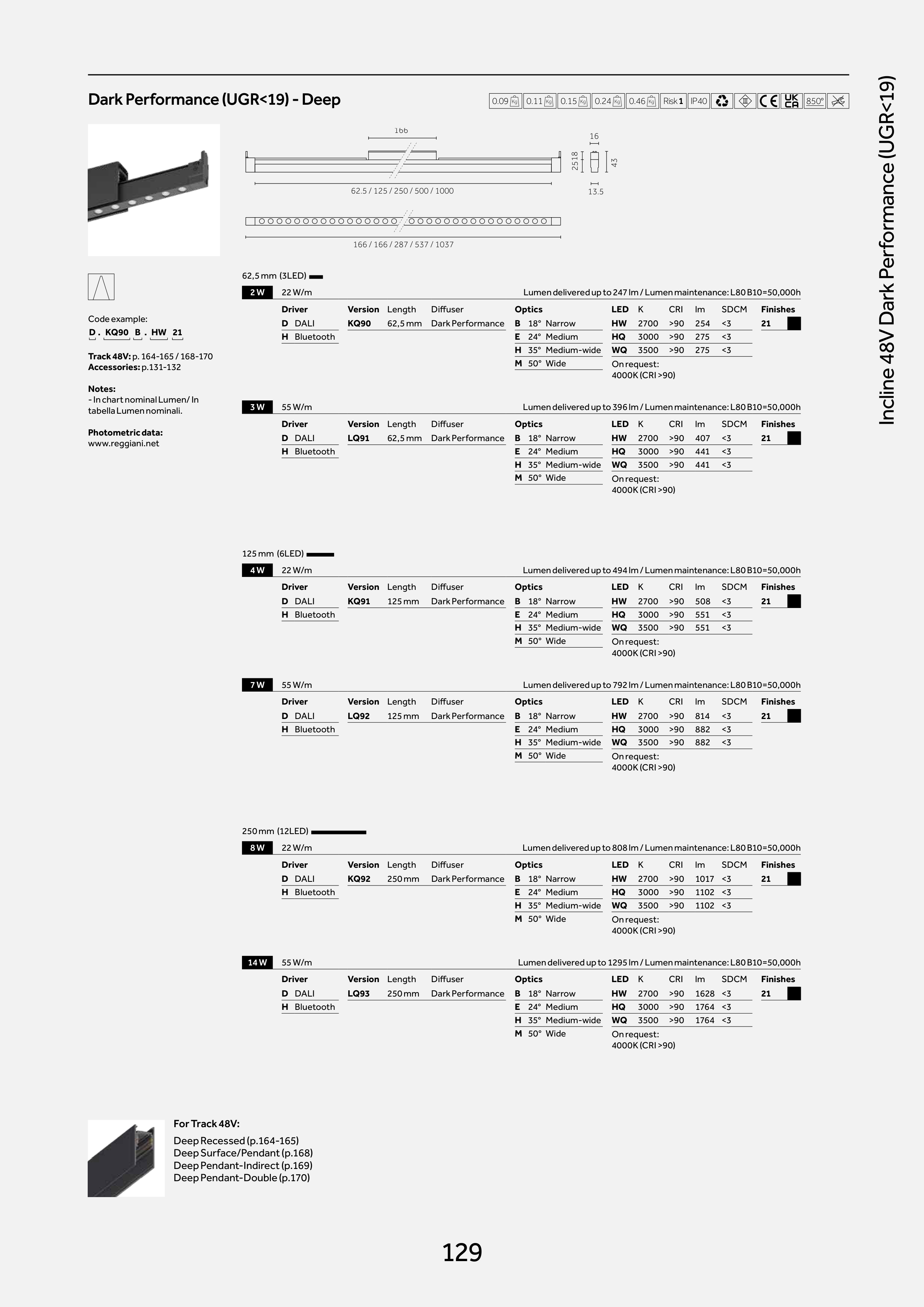

Dark Performance (UGR<19) - Deep
0.09 Kg 0.11 Kg 0.15 Kg 0.24 Kg 0.46 Kg Risk 1 IP40
850°
62.5 / 125 / 250 / 500 / 1000
166 / 166 / 287 / 537 / 1037
166
16
13.5
43
18
25
Code example:
D . KQ90 B . HW 21
Track 48V: p. 164-165 / 168-170
Accessories: p.131-132
Notes:
- In chart nominal Lumen/ In
tabella Lumen nominali.
Photometric data:
www.reggiani.net
62,5 mm (3LED)
2 W
22 W/m
Lumen delivered up to 247 lm / Lumen maintenance: L80 B10=50,000h
Driver
Version
Length
Diffuser
Optics
LED
K
CRI
lm
SDCM
Finishes
D DALI
KQ90
62,5 mm
Dark Performance
B
18° Narrow
HW
2700
>90
254
<3
21
H Bluetooth
E
24° Medium
HQ
3000
>90
275
<3
H 35° Medium-wide
WQ
3500
>90
275
<3
M 50° Wide
On request:
4000K (CRI >90)
3 W
55 W/m
Lumen delivered up to 396 lm / Lumen maintenance: L80 B10=50,000h
Driver
Version
Length
Diffuser
Optics
LED
K
CRI
lm
SDCM
Finishes
D DALI
LQ91
62,5 mm
Dark Performance
B
18° Narrow
HW
2700
>90
407
<3
21
H Bluetooth
E
24° Medium
HQ
3000
>90
441
<3
H 35° Medium-wide
WQ
3500
>90
441
<3
M 50° Wide
On request:
4000K (CRI >90)
125 mm (6LED)
4 W
22 W/m
Lumen delivered up to 494 lm / Lumen maintenance: L80 B10=50,000h
Driver
Version
Length
Diffuser
Optics
LED
K
CRI
lm
SDCM
Finishes
D DALI
KQ91
125 mm
Dark Performance
B
18° Narrow
HW
2700
>90
508
<3
21
H Bluetooth
E
24° Medium
HQ
3000
>90
551
<3
H 35° Medium-wide
WQ
3500
>90
551
<3
M 50° Wide
On request:
4000K (CRI >90)
7 W
55 W/m
Lumen delivered up to 792 lm / Lumen maintenance: L80 B10=50,000h
Driver
Version
Length
Diffuser
Optics
LED
K
CRI
lm
SDCM
Finishes
D DALI
LQ92
125 mm
Dark Performance
B
18° Narrow
HW
2700
>90
814
<3
21
H Bluetooth
E
24° Medium
HQ
3000
>90
882
<3
H 35° Medium-wide
WQ
3500
>90
882
<3
M 50° Wide
On request:
4000K (CRI >90)
250 mm (12LED)
8 W
22 W/m
Lumen delivered up to 808 lm / Lumen maintenance: L80 B10=50,000h
Driver
Version
Length
Diffuser
Optics
LED
K
CRI
lm
SDCM
Finishes
D DALI
KQ92
250 mm
Dark Performance
B
18° Narrow
HW
2700
>90
1017 <3
21
H Bluetooth
E
24° Medium
HQ
3000
>90
1102 <3
H 35° Medium-wide
WQ
3500
>90
1102 <3
M 50° Wide
On request:
4000K (CRI >90)
14 W
55 W/m
Lumen delivered up to 1295 lm / Lumen maintenance: L80 B10=50,000h
Driver
Version
Length
Diffuser
Optics
LED
K
CRI
lm
SDCM
Finishes
D DALI
LQ93
250 mm
Dark Performance
B
18° Narrow
HW
2700
>90
1628 <3
21
H Bluetooth
E
24° Medium
HQ
3000
>90
1764 <3
H 35° Medium-wide
WQ
3500
>90
1764 <3
M 50° Wide
On request:
4000K (CRI >90)
For Track 48V:
Deep Recessed (p.164-165)
Deep Surface/Pendant (p.168)
Deep Pendant-Indirect (p.169)
Deep Pendant-Double (p.170)
129
Incline 48V Dark Performance (UGR<19)
