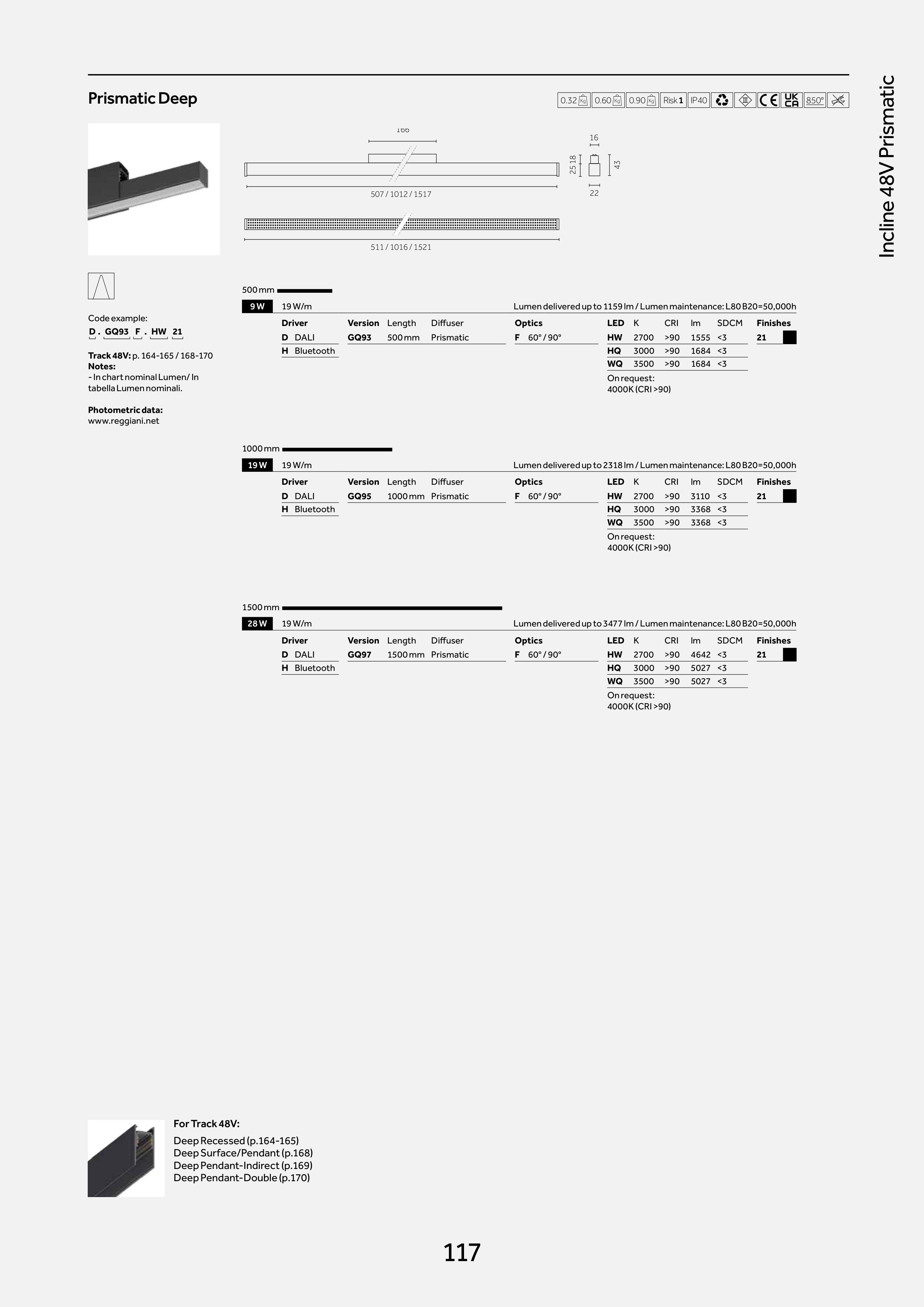

Prismatic Deep
0.32 Kg 0.60 Kg 0.90 Kg Risk 1 IP40
850°
507 / 1012 / 1517
511 / 1016 / 1521
166
16
22
43
18
25
Code example:
D . GQ93 F . HW 21
Track 48V: p. 164-165 / 168-170
Notes:
- In chart nominal Lumen/ In
tabella Lumen nominali.
Photometric data:
www.reggiani.net
1000 mm
19 W
19 W/m
Lumen delivered up to 2318 lm / Lumen maintenance: L80 B20=50,000h
Driver
Version
Length
Diffuser
Optics
LED
K
CRI
lm
SDCM
Finishes
D DALI
GQ95
1000 mm Prismatic
F
60° / 90°
HW
2700
>90
3110 <3
21
H Bluetooth
HQ
3000
>90
3368 <3
WQ
3500
>90
3368 <3
On request:
4000K (CRI >90)
500 mm
9 W
19 W/m
Lumen delivered up to 1159 lm / Lumen maintenance: L80 B20=50,000h
Driver
Version
Length
Diffuser
Optics
LED
K
CRI
lm
SDCM
Finishes
D DALI
GQ93
500 mm
Prismatic
F
60° / 90°
HW
2700
>90
1555 <3
21
H Bluetooth
HQ
3000
>90
1684 <3
WQ
3500
>90
1684 <3
On request:
4000K (CRI >90)
1500 mm
28 W
19 W/m
Lumen delivered up to 3477 lm / Lumen maintenance: L80 B20=50,000h
Driver
Version
Length
Diffuser
Optics
LED
K
CRI
lm
SDCM
Finishes
D DALI
GQ97
1500 mm Prismatic
F
60° / 90°
HW
2700
>90
4642 <3
21
H Bluetooth
HQ
3000
>90
5027 <3
WQ
3500
>90
5027 <3
On request:
4000K (CRI >90)
For Track 48V:
Deep Recessed (p.164-165)
Deep Surface/Pendant (p.168)
Deep Pendant-Indirect (p.169)
Deep Pendant-Double (p.170)
117
Incline 48V Prismatic
