9000 mm
6000 mm
4000 mm
525

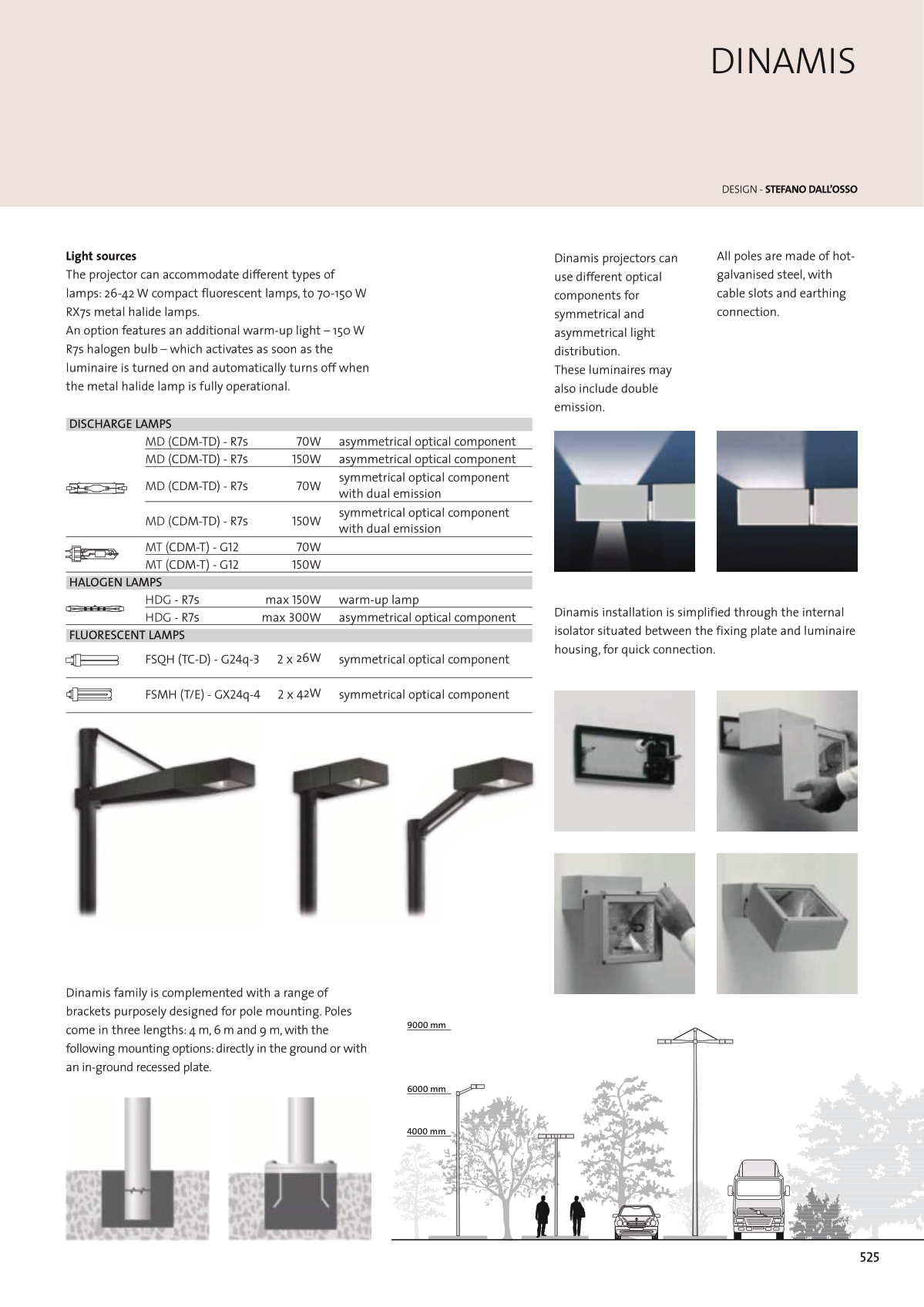

DINAMIS
DESIGN - STEFANO DALL’OSSO
Dinamis family is complemented with a range of
brackets purposely designed for pole mounting. Poles
come in three lengths: 4 m, 6 m and 9 m, with the
following mounting options: directly in the ground or with
an in-ground recessed plate.
Dinamis projectors can
use different optical
components for
symmetrical and
asymmetrical light
distribution.
These luminaires may
also include double
emission.
All poles are made of hot-
galvanised steel, with
cable slots and earthing
connection.
Dinamis installation is simplified through the internal
isolator situated between the fixing plate and luminaire
housing, for quick connection.
Light sources
The projector can accommodate different types of
lamps: 26-42 W compact fluorescent lamps, to 70-150 W
RX7s metal halide lamps.
An option features an additional warm-up light – 150 W
R7s halogen bulb – which activates as soon as the
luminaire is turned on and automatically turns off when
the metal halide lamp is fully operational.
DISCHARGE LAMPS
MD (CDM-TD) - R7s
70W
asymmetrical optical component
MD (CDM-TD) - R7s
150W
asymmetrical optical component
MD (CDM-TD) - R7s
70W
symmetrical optical component
with dual emission
MD (CDM-TD) - R7s
150W
symmetrical optical component
with dual emission
MT (CDM-T) - G12
70W
MT (CDM-T) - G12
150W
HALOGEN LAMPS
HDG - R7s
max 150W
warm-up lamp
HDG - R7s
max 300W
asymmetrical optical component
FLUORESCENT LAMPS
FSQH (TC-D) - G24q-3
2 x 26W
symmetrical optical component
FSMH (T/E) - GX24q-4
2 x 42W
symmetrical optical component
