521
NUT
H1
H2
D1
D2
4000
500
60
105
6000
800
60
128
9000
800
60
158
H1
H1
H1
H2
400
300
D1
D1
D1
260
260
200
300
Ø22
Ø30
Ø16
Ø24
D2
400
400
888-889
Direct ground
mounting
Poles
4/6 meters
with plate
Poles
9 meters
with plate

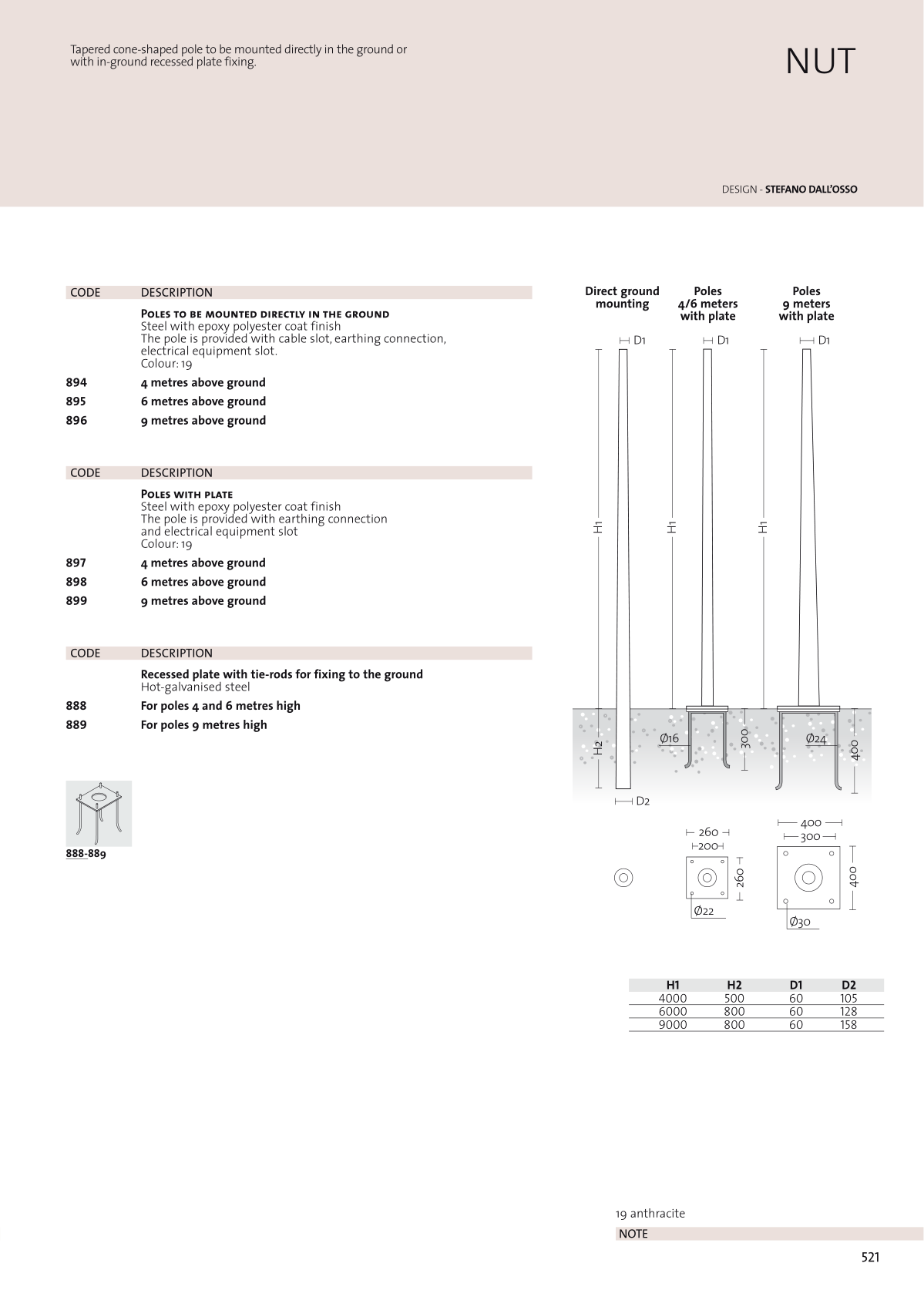

Tapered cone-shaped pole to be mounted directly in the ground or
with in-ground recessed plate fixing.
DESIGN - STEFANO DALL’OSSO
CODE
DESCRIPTION
Poles to be mounted directly in the ground
Steel with epoxy polyester coat finish
The pole is provided with cable slot, earthing connection,
electrical equipment slot.
Colour: 19
894
4 metres above ground
895
6 metres above ground
896
9 metres above ground
CODE
DESCRIPTION
Recessed plate with tie-rods for fixing to the ground
Hot-galvanised steel
888
For poles 4 and 6 metres high
889
For poles 9 metres high
CODE
DESCRIPTION
Poles with plate
Steel with epoxy polyester coat finish
The pole is provided with earthing connection
and electrical equipment slot
Colour: 19
897
4 metres above ground
898
6 metres above ground
899
9 metres above ground
NOTE
19 anthracite
