FEATURES
Power (W)
7 - 9
Light beam (°)
Spot - Medium - Wide - Elliptical
Installation
Track Serie Multisystem Evo 9500
Luminaire housing
Aluminium alloys
Light sources
LED
Finishing
White, Black, Custom powder coat
Line voltage
48VDC
Power supply
DC/DC led driver integrated
Dimming
0 -10V dim (Dim to off), Dali

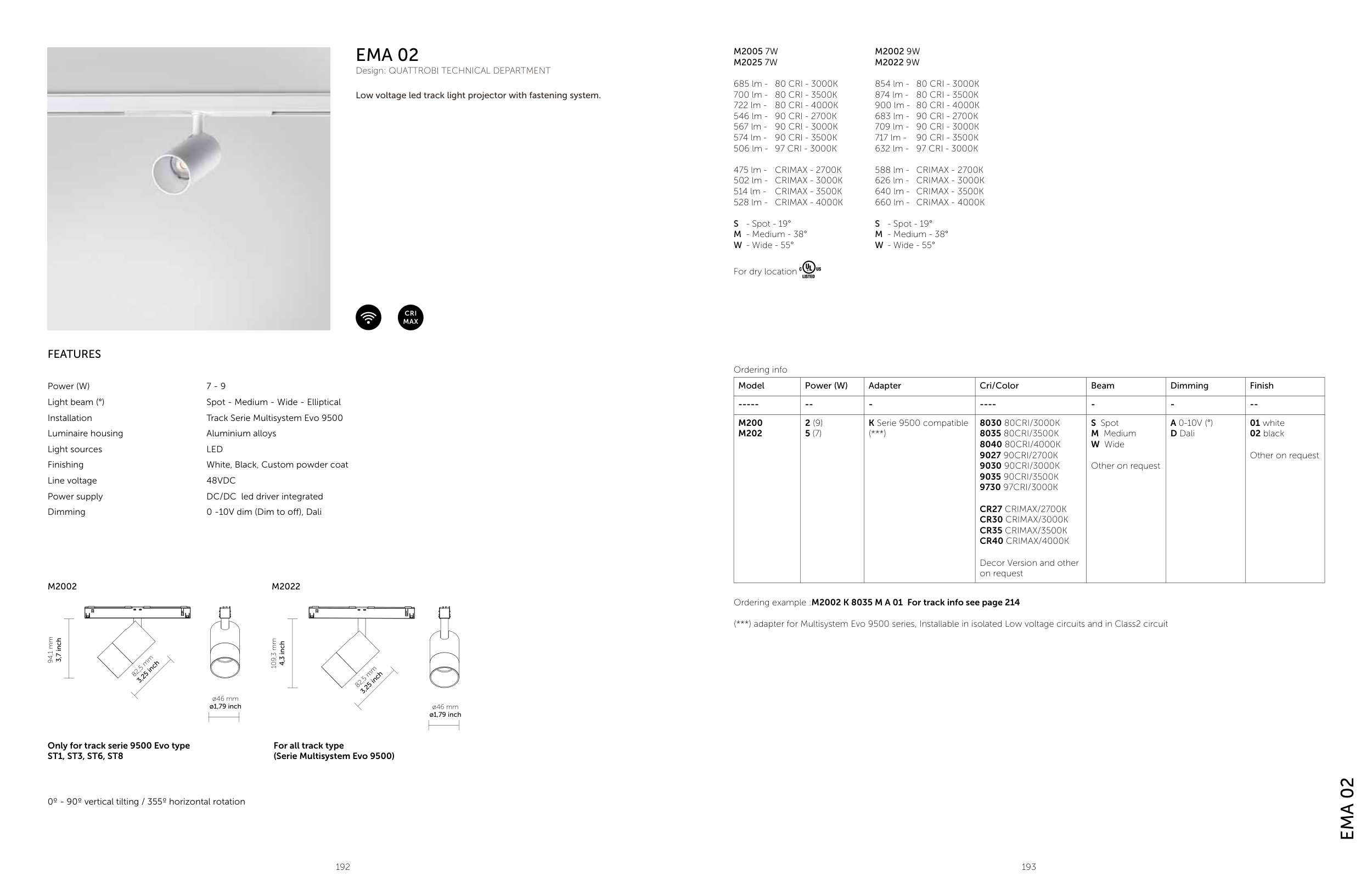

EMA 02
Design: QUATTROBI TECHNICAL DEPARTMENT
Low voltage led track light projector with fastening system.
ø46 mm
ø1,79 inch
ø46 mm
ø1,79 inch
94,1 mm
3,7 inch
109,3 mm
4,3 inch
82,5 mm
3,25 inch
82,5 mm
3,25 inch
EMA 02
M2005 7W
M2025 7W
685 lm - 80 CRI - 3000K
700 lm - 80 CRI - 3500K
722 lm - 80 CRI - 4000K
546 lm - 90 CRI - 2700K
567 lm - 90 CRI - 3000K
574 lm - 90 CRI - 3500K
506 lm - 97 CRI - 3000K
475 lm - CRIMAX - 2700K
502 lm - CRIMAX - 3000K
514 lm - CRIMAX - 3500K
528 lm - CRIMAX - 4000K
S - Spot - 19°
M - Medium - 38°
W - Wide - 55°
For dry location
M2002 9W
M2022 9W
854 lm - 80 CRI - 3000K
874 lm - 80 CRI - 3500K
900 lm - 80 CRI - 4000K
683 lm - 90 CRI - 2700K
709 lm - 90 CRI - 3000K
717 lm -
90 CRI - 3500K
632 lm - 97 CRI - 3000K
588 lm - CRIMAX - 2700K
626 lm - CRIMAX - 3000K
640 lm - CRIMAX - 3500K
660 lm - CRIMAX - 4000K
S - Spot - 19°
M - Medium - 38°
W - Wide - 55°
0º - 90º vertical tilting / 355º horizontal rotation
CRI
MAX
M2002
M2022
For all track type
(Serie Multisystem Evo 9500)
Only for track serie 9500 Evo type
ST1, ST3, ST6, ST8
Ordering info
Model
Power (W)
Adapter
Cri/Color
Beam
Dimming
Finish
-----
--
-
----
-
-
--
M200
M202
2 (9)
5 (7)
K Serie 9500 compatible
(***)
8030 80CRI/3000K
8035 80CRI/3500K
8040 80CRI/4000K
9027 90CRI/2700K
9030 90CRI/3000K
9035 90CRI/3500K
9730 97CRI/3000K
CR27 CRIMAX/2700K
CR30 CRIMAX/3000K
CR35 CRIMAX/3500K
CR40 CRIMAX/4000K
Decor Version and other
on request
S Spot
M Medium
W Wide
Other on request
A 0-10V (°)
D Dali
01 white
02 black
Other on request
Ordering example :M2002 K 8035 M A 01 For track info see page 214
(***) adapter for Multisystem Evo 9500 series, Installable in isolated Low voltage circuits and in Class2 circuit
