FEATURES
Power (W)
15 - 20 - 26
Light beam (°)
Spot - Medium - Wide - Elliptical
Installation
Track: G version Global(*) GES compatible ; X version - Global (*) XTS compatible; S version Onetrack
compatible
Luminaire housing
Aluminium alloys
Protective screen
Tempered glass
Light sources
LED
Finishing
White, Grey, Black, Custom powder coat
Power supply
Electronic constant current LED driver, 120V 60Hz
Dimming
Phase cut dimming

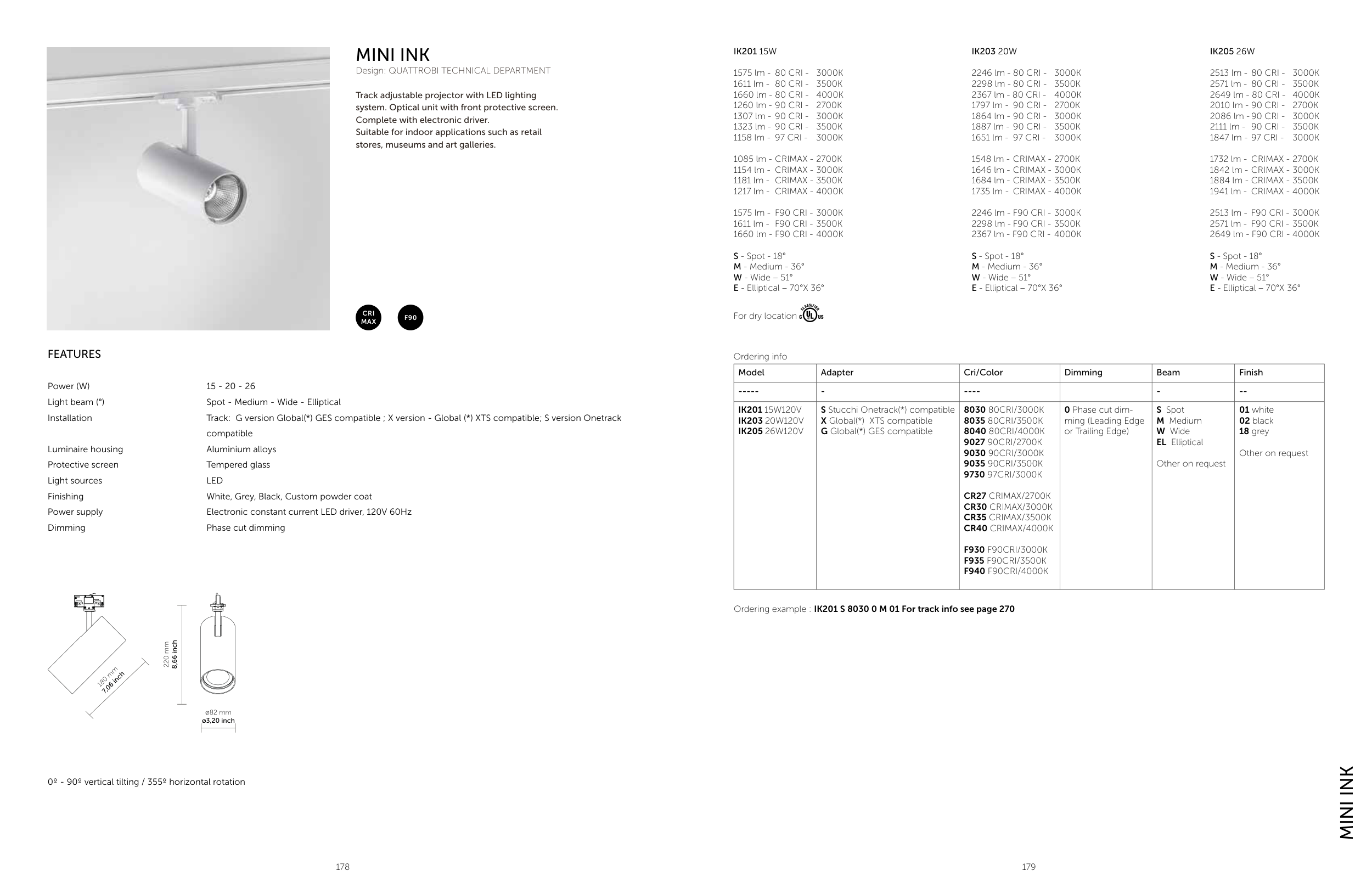

MINI INK
Design: QUATTROBI TECHNICAL DEPARTMENT
Track adjustable projector with LED lighting
system. Optical unit with front protective screen.
Complete with electronic driver.
Suitable for indoor applications such as retail
stores, museums and art galleries.
0º - 90º vertical tilting / 355º horizontal rotation
220 mm
8,66 inch
180 mm
7,06 inch
ø82 mm
ø3,20 inch
IK201 15W
1575 lm - 80 CRI - 3000K
1611 lm - 80 CRI - 3500K
1660 lm - 80 CRI - 4000K
1260 lm - 90 CRI - 2700K
1307 lm - 90 CRI - 3000K
1323 lm - 90 CRI - 3500K
1158 lm - 97 CRI - 3000K
1085 lm - CRIMAX - 2700K
1154 lm - CRIMAX - 3000K
1181 lm - CRIMAX - 3500K
1217 lm - CRIMAX - 4000K
1575 lm - F90 CRI - 3000K
1611 lm - F90 CRI - 3500K
1660 lm - F90 CRI - 4000K
S - Spot - 18°
M - Medium - 36°
W - Wide – 51°
E - Elliptical – 70°X 36°
For dry location
IK205 26W
2513 lm - 80 CRI - 3000K
2571 lm - 80 CRI - 3500K
2649 lm - 80 CRI - 4000K
2010 lm - 90 CRI - 2700K
2086 lm - 90 CRI - 3000K
2111 lm - 90 CRI - 3500K
1847 lm - 97 CRI - 3000K
1732 lm - CRIMAX - 2700K
1842 lm - CRIMAX - 3000K
1884 lm - CRIMAX - 3500K
1941 lm - CRIMAX - 4000K
2513 lm - F90 CRI - 3000K
2571 lm - F90 CRI - 3500K
2649 lm - F90 CRI - 4000K
S - Spot - 18°
M - Medium - 36°
W - Wide – 51°
E - Elliptical – 70°X 36°
IK203 20W
2246 lm - 80 CRI - 3000K
2298 lm - 80 CRI - 3500K
2367 lm - 80 CRI - 4000K
1797 lm - 90 CRI - 2700K
1864 lm - 90 CRI - 3000K
1887 lm - 90 CRI - 3500K
1651 lm - 97 CRI - 3000K
1548 lm - CRIMAX - 2700K
1646 lm - CRIMAX - 3000K
1684 lm - CRIMAX - 3500K
1735 lm - CRIMAX - 4000K
2246 lm - F90 CRI - 3000K
2298 lm - F90 CRI - 3500K
2367 lm - F90 CRI - 4000K
S - Spot - 18°
M - Medium - 36°
W - Wide – 51°
E - Elliptical – 70°X 36°
Ordering info
Model
Adapter
Cri/Color
Dimming
Beam
Finish
-----
-
----
-
--
IK201 15W120V
IK203 20W120V
IK205 26W120V
S Stucchi Onetrack(*) compatible
X Global(*) XTS compatible
G Global(*) GES compatible
8030 80CRI/3000K
8035 80CRI/3500K
8040 80CRI/4000K
9027 90CRI/2700K
9030 90CRI/3000K
9035 90CRI/3500K
9730 97CRI/3000K
CR27 CRIMAX/2700K
CR30 CRIMAX/3000K
CR35 CRIMAX/3500K
CR40 CRIMAX/4000K
F930 F90CRI/3000K
F935 F90CRI/3500K
F940 F90CRI/4000K
0 Phase cut dim-
ming (Leading Edge
or Trailing Edge)
S Spot
M Medium
W Wide
EL Elliptical
Other on request
01 white
02 black
18 grey
Other on request
Ordering example : IK201 S 8030 0 M 01 For track info see page 270
MINI INK
F90
CRI
MAX
