FEATURES
Power (W)
15 - 25 - 37 - 48
Light beam (°)
Spot - Medium - Wide
Installation
G version Global(*), track or on Jbox
Luminaire housing
Aluminium alloys
Protective screen
Tempered glass
Light sources
LED
Finishing
White, Grey, Black, Custom powder coat
Power supply
Electronic constant current LED driver, 120V 60Hz
Dimming
Phase cut dimming, 0-10V dim

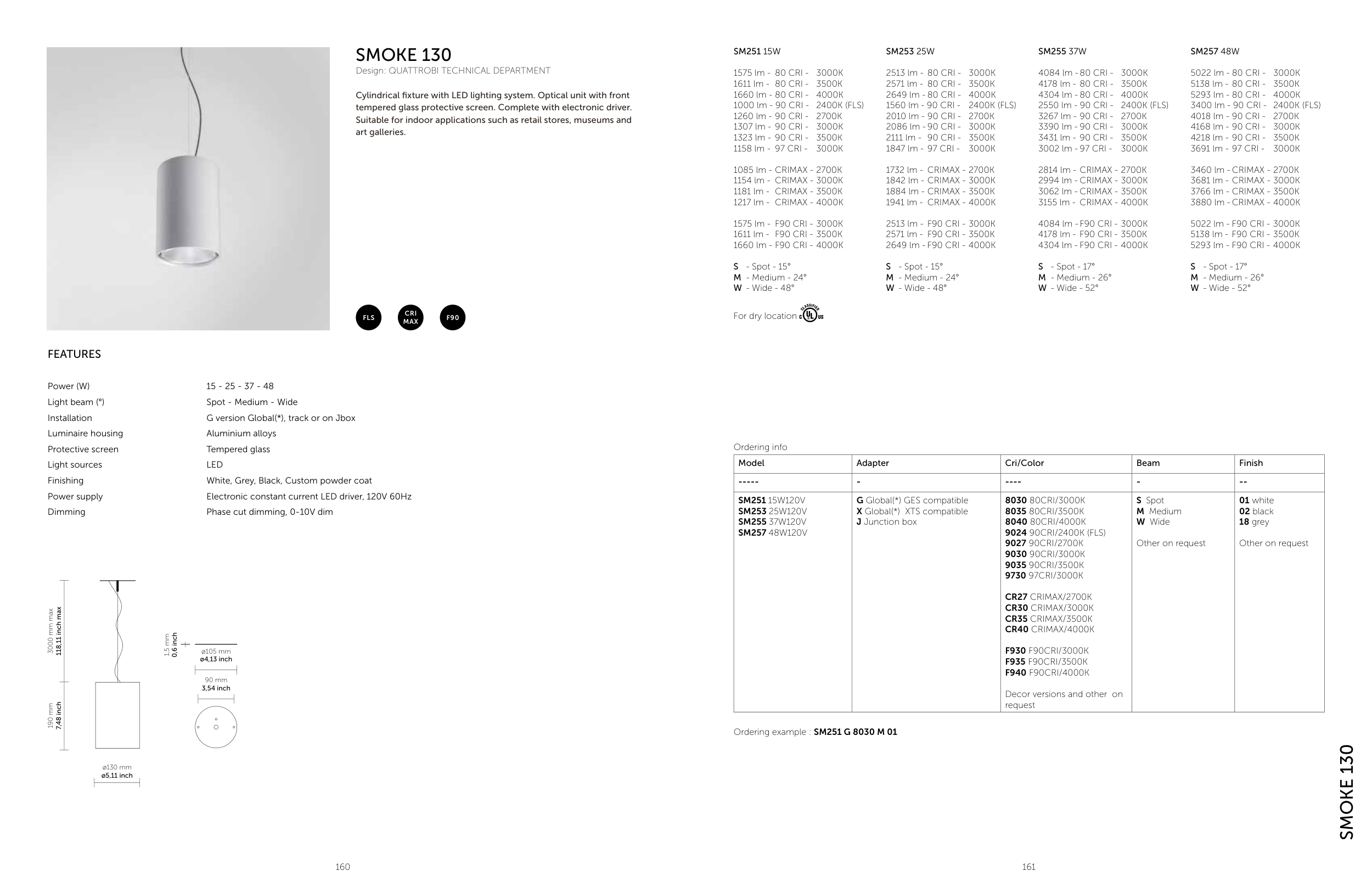

SMOKE 130
Design: QUATTROBI TECHNICAL DEPARTMENT
Cylindrical fixture with LED lighting system. Optical unit with front
tempered glass protective screen. Complete with electronic driver.
Suitable for indoor applications such as retail stores, museums and
art galleries.
SMOKE 130
Ordering info
Model
Adapter
Cri/Color
Beam
Finish
-----
-
----
-
--
SM251 15W120V
SM253 25W120V
SM255 37W120V
SM257 48W120V
G Global(*) GES compatible
X Global(*) XTS compatible
J Junction box
8030 80CRI/3000K
8035 80CRI/3500K
8040 80CRI/4000K
9024 90CRI/2400K (FLS)
9027 90CRI/2700K
9030 90CRI/3000K
9035 90CRI/3500K
9730 97CRI/3000K
CR27 CRIMAX/2700K
CR30 CRIMAX/3000K
CR35 CRIMAX/3500K
CR40 CRIMAX/4000K
F930 F90CRI/3000K
F935 F90CRI/3500K
F940 F90CRI/4000K
Decor versions and other on
request
S Spot
M Medium
W Wide
Other on request
01 white
02 black
18 grey
Other on request
Ordering example : SM251 G 8030 M 01
190 mm
7,48 inch
ø130 mm
ø5,11 inch
3000 mm max
118,11 inch max
FLS
F90
CRI
MAX
90 mm
3,54 inch
1,5 mm
0,6 inch
ø105 mm
ø4,13 inch
SM251 15W
1575 lm - 80 CRI - 3000K
1611 lm - 80 CRI - 3500K
1660 lm - 80 CRI - 4000K
1000 lm - 90 CRI - 2400K (FLS)
1260 lm - 90 CRI - 2700K
1307 lm - 90 CRI - 3000K
1323 lm - 90 CRI - 3500K
1158 lm - 97 CRI - 3000K
1085 lm - CRIMAX - 2700K
1154 lm - CRIMAX - 3000K
1181 lm - CRIMAX - 3500K
1217 lm - CRIMAX - 4000K
1575 lm - F90 CRI - 3000K
1611 lm - F90 CRI - 3500K
1660 lm - F90 CRI - 4000K
S - Spot - 15°
M - Medium - 24°
W - Wide - 48°
For dry location
SM253 25W
2513 lm - 80 CRI - 3000K
2571 lm - 80 CRI - 3500K
2649 lm - 80 CRI - 4000K
1560 lm - 90 CRI - 2400K (FLS)
2010 lm - 90 CRI - 2700K
2086 lm - 90 CRI - 3000K
2111 lm - 90 CRI - 3500K
1847 lm - 97 CRI - 3000K
1732 lm - CRIMAX - 2700K
1842 lm - CRIMAX - 3000K
1884 lm - CRIMAX - 3500K
1941 lm - CRIMAX - 4000K
2513 lm - F90 CRI - 3000K
2571 lm - F90 CRI - 3500K
2649 lm - F90 CRI - 4000K
S - Spot - 15°
M - Medium - 24°
W - Wide - 48°
SM255 37W
4084 lm - 80 CRI - 3000K
4178 lm - 80 CRI - 3500K
4304 lm - 80 CRI - 4000K
2550 lm - 90 CRI - 2400K (FLS)
3267 lm - 90 CRI - 2700K
3390 lm - 90 CRI - 3000K
3431 lm - 90 CRI - 3500K
3002 lm - 97 CRI - 3000K
2814 lm - CRIMAX - 2700K
2994 lm - CRIMAX - 3000K
3062 lm - CRIMAX - 3500K
3155 lm - CRIMAX - 4000K
4084 lm - F90 CRI - 3000K
4178 lm - F90 CRI - 3500K
4304 lm - F90 CRI - 4000K
S - Spot - 17°
M - Medium - 26°
W - Wide - 52°
SM257 48W
5022 lm - 80 CRI - 3000K
5138 lm - 80 CRI - 3500K
5293 lm - 80 CRI - 4000K
3400 lm - 90 CRI - 2400K (FLS)
4018 lm - 90 CRI - 2700K
4168 lm - 90 CRI - 3000K
4218 lm - 90 CRI - 3500K
3691 lm - 97 CRI - 3000K
3460 lm - CRIMAX - 2700K
3681 lm - CRIMAX - 3000K
3766 lm - CRIMAX - 3500K
3880 lm - CRIMAX - 4000K
5022 lm - F90 CRI - 3000K
5138 lm - F90 CRI - 3500K
5293 lm - F90 CRI - 4000K
S - Spot - 17°
M - Medium - 26°
W - Wide - 52°
