FEATURES
Power (W)
20 - 13
Light beam
Spot - Medium - Wide
Color temperature
2700K, 3000K, 3500K, 4000K
CRI
80, 90, 97, CRIMAX
Luminaire body
Steel sheet
Light sources
LED
Finishing
White, Grey, Custom powder coat
Power supply
Electronic constant current LED driver, 120V/277V 60Hz
Dimming
Phase cut dimming

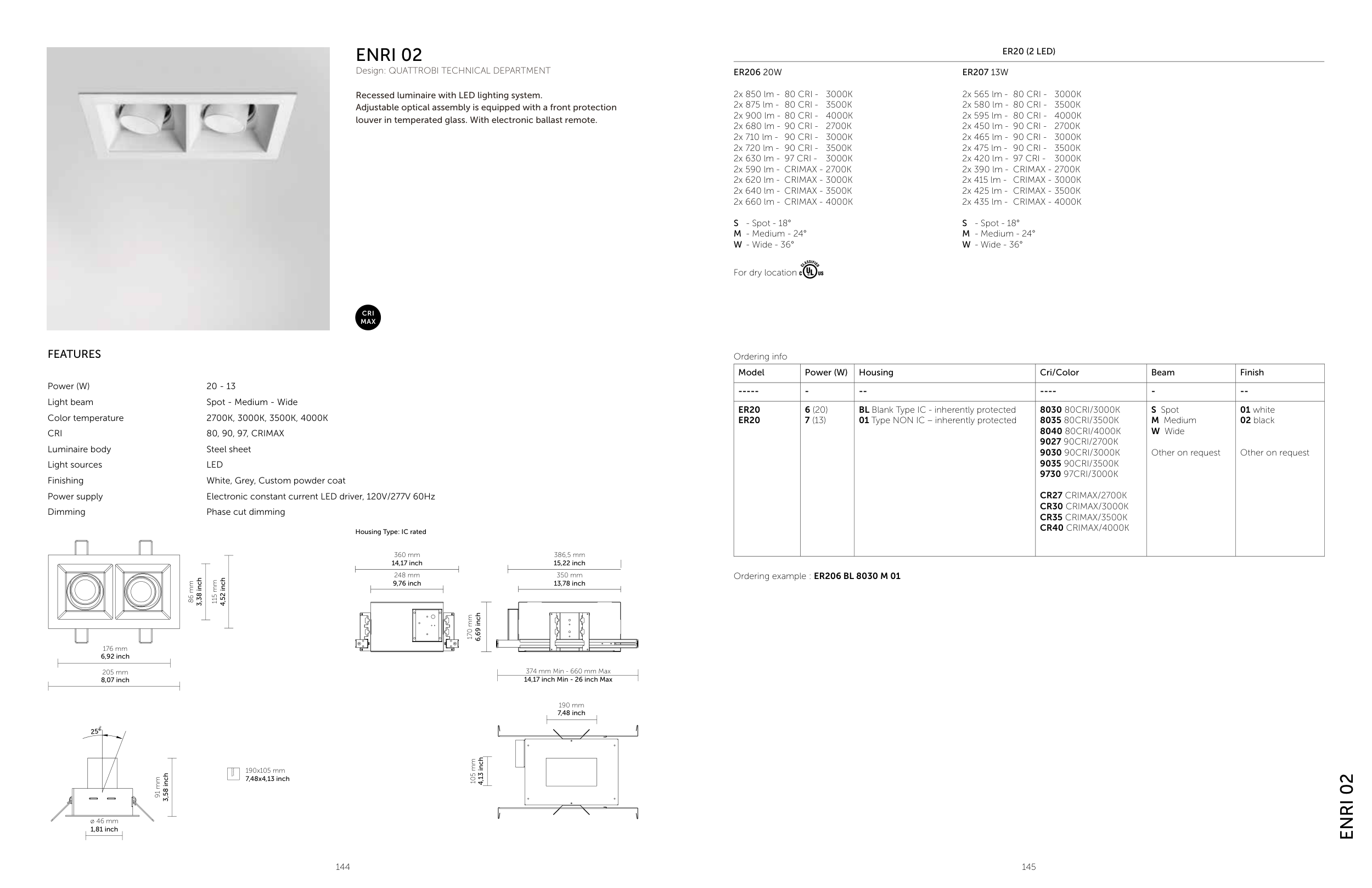

ENRI 02
Design: QUATTROBI TECHNICAL DEPARTMENT
Recessed luminaire with LED lighting system.
Adjustable optical assembly is equipped with a front protection
louver in temperated glass. With electronic ballast remote.
ENRI 02
ER206 20W
2x 850 lm - 80 CRI - 3000K
2x 875 lm - 80 CRI - 3500K
2x 900 lm - 80 CRI - 4000K
2x 680 lm - 90 CRI - 2700K
2x 710 lm - 90 CRI - 3000K
2x 720 lm - 90 CRI - 3500K
2x 630 lm - 97 CRI - 3000K
2x 590 lm - CRIMAX - 2700K
2x 620 lm - CRIMAX - 3000K
2x 640 lm - CRIMAX - 3500K
2x 660 lm - CRIMAX - 4000K
S - Spot - 18°
M - Medium - 24°
W - Wide - 36°
For dry location
ER207 13W
2x 565 lm - 80 CRI - 3000K
2x 580 lm - 80 CRI - 3500K
2x 595 lm - 80 CRI - 4000K
2x 450 lm - 90 CRI - 2700K
2x 465 lm - 90 CRI - 3000K
2x 475 lm - 90 CRI - 3500K
2x 420 lm - 97 CRI - 3000K
2x 390 lm - CRIMAX - 2700K
2x 415 lm - CRIMAX - 3000K
2x 425 lm - CRIMAX - 3500K
2x 435 lm - CRIMAX - 4000K
S - Spot - 18°
M - Medium - 24°
W - Wide - 36°
Ordering info
Model
Power (W)
Housing
Cri/Color
Beam
Finish
-----
-
--
----
-
--
ER20
ER20
6 (20)
7 (13)
BL Blank Type IC - inherently protected
01 Type NON IC – inherently protected
8030 80CRI/3000K
8035 80CRI/3500K
8040 80CRI/4000K
9027 90CRI/2700K
9030 90CRI/3000K
9035 90CRI/3500K
9730 97CRI/3000K
CR27 CRIMAX/2700K
CR30 CRIMAX/3000K
CR35 CRIMAX/3500K
CR40 CRIMAX/4000K
S Spot
M Medium
W Wide
Other on request
01 white
02 black
Other on request
Ordering example : ER206 BL 8030 M 01
CRI
MAX
176 mm
6,92 inch
205 mm
8,07 inch
190x105 mm
7,48x4,13 inch
86 mm
3,38 inch
115 mm
4,52 inch
ø 46 mm
1,81 inch
25°
91 mm
3,58 inch
190 mm
7,48 inch
105 mm
4,13 inch
374 mm Min - 660 mm Max
14,17 inch Min - 26 inch Max
170 mm
6,69 inch
360 mm
14,17 inch
386,5 mm
15,22 inch
248 mm
9,76 inch
350 mm
13,78 inch
ER20 (2 LED)
Housing Type: IC rated
