FEATURES
Total fixture Watts
17 - 22 - 26 - 35 - 50
Light beam (°)
Spot - Medium - Wide
Installation
Recessed
Luminaire housing
Die-cast aluminium
Protective screen
Polycarbonate
Light sources
LED
Finishing
White, Grey, Black, Custom powder coat
Power supply
Electronic constant current LED driver, 120V/277V 60Hz
Dimming
Phase cut dimming (TRIAC/ELV) 120V only

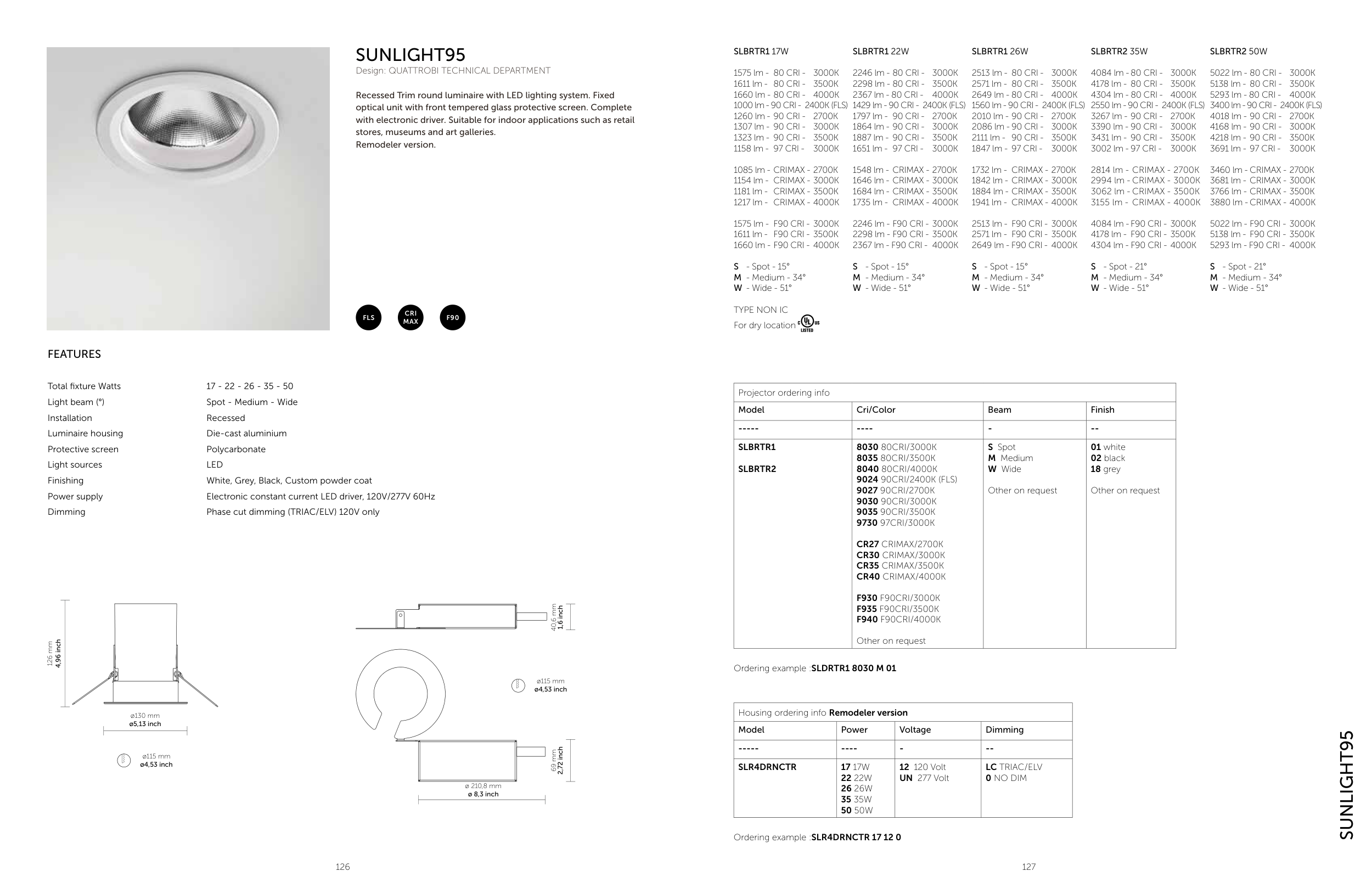

SUNLIGHT95
Design: QUATTROBI TECHNICAL DEPARTMENT
Recessed Trim round luminaire with LED lighting system. Fixed
optical unit with front tempered glass protective screen. Complete
with electronic driver. Suitable for indoor applications such as retail
stores, museums and art galleries.
Remodeler version.
ø115 mm
ø4,53 inch
ø115 mm
ø4,53 inch
ø 210,8 mm
ø 8,3 inch
40,6 mm
1,6 inch
69 mm
2,72 inch
ø130 mm
ø5,13 inch
126 mm
4,96 inch
SUNLIGHT95
Housing ordering info Remodeler version
Model
Power
Voltage
Dimming
-----
----
-
--
SLR4DRNCTR
17 17W
22 22W
26 26W
35 35W
50 50W
12 120 Volt
UN 277 Volt
LC TRIAC/ELV
0 NO DIM
Ordering example :SLR4DRNCTR 17 12 0
FLS
F90
CRI
MAX
Projector ordering info
Model
Cri/Color
Beam
Finish
-----
----
-
--
SLBRTR1
SLBRTR2
8030 80CRI/3000K
8035 80CRI/3500K
8040 80CRI/4000K
9024 90CRI/2400K (FLS)
9027 90CRI/2700K
9030 90CRI/3000K
9035 90CRI/3500K
9730 97CRI/3000K
CR27 CRIMAX/2700K
CR30 CRIMAX/3000K
CR35 CRIMAX/3500K
CR40 CRIMAX/4000K
F930 F90CRI/3000K
F935 F90CRI/3500K
F940 F90CRI/4000K
Other on request
S Spot
M Medium
W Wide
Other on request
01 white
02 black
18 grey
Other on request
Ordering example :SLDRTR1 8030 M 01
SLBRTR1 17W
1575 lm - 80 CRI - 3000K
1611 lm - 80 CRI - 3500K
1660 lm - 80 CRI - 4000K
1000 lm - 90 CRI - 2400K (FLS)
1260 lm - 90 CRI - 2700K
1307 lm - 90 CRI - 3000K
1323 lm - 90 CRI - 3500K
1158 lm - 97 CRI - 3000K
1085 lm - CRIMAX - 2700K
1154 lm - CRIMAX - 3000K
1181 lm - CRIMAX - 3500K
1217 lm - CRIMAX - 4000K
1575 lm - F90 CRI - 3000K
1611 lm - F90 CRI - 3500K
1660 lm - F90 CRI - 4000K
S - Spot - 15°
M - Medium - 34°
W - Wide - 51°
TYPE NON IC
For dry location
SLBRTR1 22W
2246 lm - 80 CRI - 3000K
2298 lm - 80 CRI - 3500K
2367 lm - 80 CRI - 4000K
1429 lm - 90 CRI - 2400K (FLS)
1797 lm - 90 CRI - 2700K
1864 lm - 90 CRI - 3000K
1887 lm - 90 CRI - 3500K
1651 lm - 97 CRI - 3000K
1548 lm - CRIMAX - 2700K
1646 lm - CRIMAX - 3000K
1684 lm - CRIMAX - 3500K
1735 lm - CRIMAX - 4000K
2246 lm - F90 CRI - 3000K
2298 lm - F90 CRI - 3500K
2367 lm - F90 CRI - 4000K
S - Spot - 15°
M - Medium - 34°
W - Wide - 51°
SLBRTR2 50W
5022 lm - 80 CRI - 3000K
5138 lm - 80 CRI - 3500K
5293 lm - 80 CRI - 4000K
3400 lm - 90 CRI - 2400K (FLS)
4018 lm - 90 CRI - 2700K
4168 lm - 90 CRI - 3000K
4218 lm - 90 CRI - 3500K
3691 lm - 97 CRI - 3000K
3460 lm - CRIMAX - 2700K
3681 lm - CRIMAX - 3000K
3766 lm - CRIMAX - 3500K
3880 lm - CRIMAX - 4000K
5022 lm - F90 CRI - 3000K
5138 lm - F90 CRI - 3500K
5293 lm - F90 CRI - 4000K
S - Spot - 21°
M - Medium - 34°
W - Wide - 51°
SLBRTR2 35W
4084 lm - 80 CRI - 3000K
4178 lm - 80 CRI - 3500K
4304 lm - 80 CRI - 4000K
2550 lm - 90 CRI - 2400K (FLS)
3267 lm - 90 CRI - 2700K
3390 lm - 90 CRI - 3000K
3431 lm - 90 CRI - 3500K
3002 lm - 97 CRI - 3000K
2814 lm - CRIMAX - 2700K
2994 lm - CRIMAX - 3000K
3062 lm - CRIMAX - 3500K
3155 lm - CRIMAX - 4000K
4084 lm - F90 CRI - 3000K
4178 lm - F90 CRI - 3500K
4304 lm - F90 CRI - 4000K
S - Spot - 21°
M - Medium - 34°
W - Wide - 51°
SLBRTR1 26W
2513 lm - 80 CRI - 3000K
2571 lm - 80 CRI - 3500K
2649 lm - 80 CRI - 4000K
1560 lm - 90 CRI - 2400K (FLS)
2010 lm - 90 CRI - 2700K
2086 lm - 90 CRI - 3000K
2111 lm - 90 CRI - 3500K
1847 lm - 97 CRI - 3000K
1732 lm - CRIMAX - 2700K
1842 lm - CRIMAX - 3000K
1884 lm - CRIMAX - 3500K
1941 lm - CRIMAX - 4000K
2513 lm - F90 CRI - 3000K
2571 lm - F90 CRI - 3500K
2649 lm - F90 CRI - 4000K
S - Spot - 15°
M - Medium - 34°
W - Wide - 51°
