FEATURES
Power (W)
20 - 30 - 40 - 50
Lens
SL Polycarbonate satin lens - PL Polycarbonate prismatic lens
Installation
Suspended / Surface
Luminaire housing
Extruded aluminum
Light sources
LED
Finishing
White, Grey, Black, Custom powder coat
Power supply
Electronic constant current LED driver, 120V - 277V 50-60Hz
Dimming
0- 10 V dimming 1%
Emergency circuit via remote inverter or auxiliary emergency power supply (not included) on request

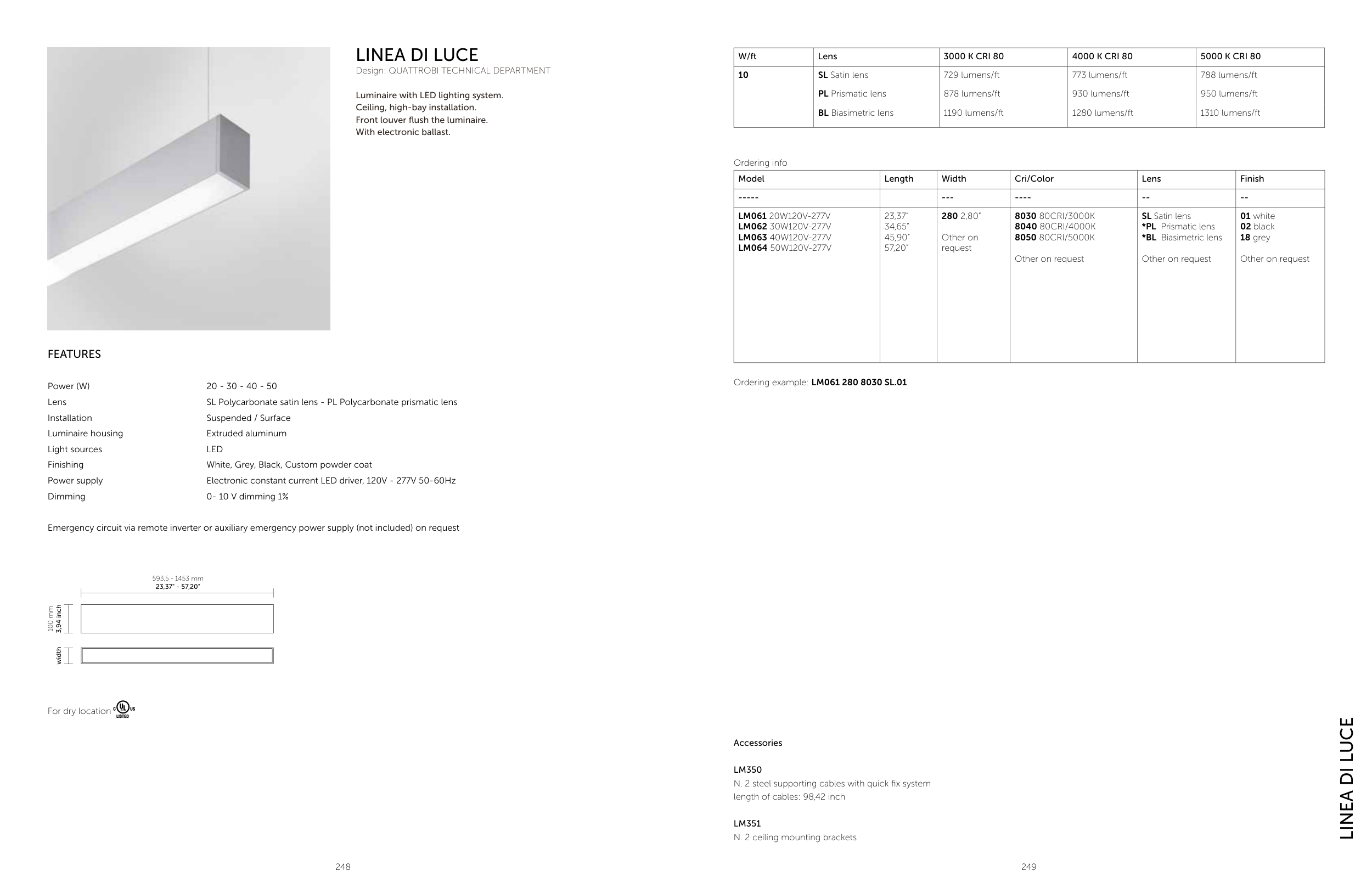

LINEA DI LUCE
Design: QUATTROBI TECHNICAL DEPARTMENT
Luminaire with LED lighting system.
Ceiling, high-bay installation.
Front louver flush the luminaire.
With electronic ballast.
width
For dry location
100 mm
3,94 inch
593,5 - 1453 mm
23,37" - 57,20"
LINEA DI LUCE
Ordering info
Model
Length
Width
Cri/Color
Lens
Finish
-----
---
----
--
--
LM061 20W120V-277V
LM062 30W120V-277V
LM063 40W120V-277V
LM064 50W120V-277V
23,37”
34,65”
45,90”
57,20”
280 2,80”
Other on
request
8030 80CRI/3000K
8040 80CRI/4000K
8050 80CRI/5000K
Other on request
SL Satin lens
*PL Prismatic lens
*BL Biasimetric lens
Other on request
01 white
02 black
18 grey
Other on request
Ordering example: LM061 280 8030 SL.01
W/ft
Lens
3000 K CRI 80
4000 K CRI 80
5000 K CRI 80
10
SL Satin lens
729 lumens/ft
773 lumens/ft
788 lumens/ft
PL Prismatic lens
878 lumens/ft
930 lumens/ft
950 lumens/ft
BL Biasimetric lens
1190 lumens/ft
1280 lumens/ft
1310 lumens/ft
Accessories
LM350
N. 2 steel supporting cables with quick fix system
length of cables: 98,42 inch
LM351
N. 2 ceiling mounting brackets
