FEATURES
Power (W)
Custom
Lens
Fabric diffuser
Installation
Suspended, Ceiling, Wall
Luminaire housing
Aluminum
Light sources
LED
Finishing
White, Black, Aluminum, Custom
Power supply
Remote driver
Dimming
on-off, 0-10V, Dali 2, Casambi

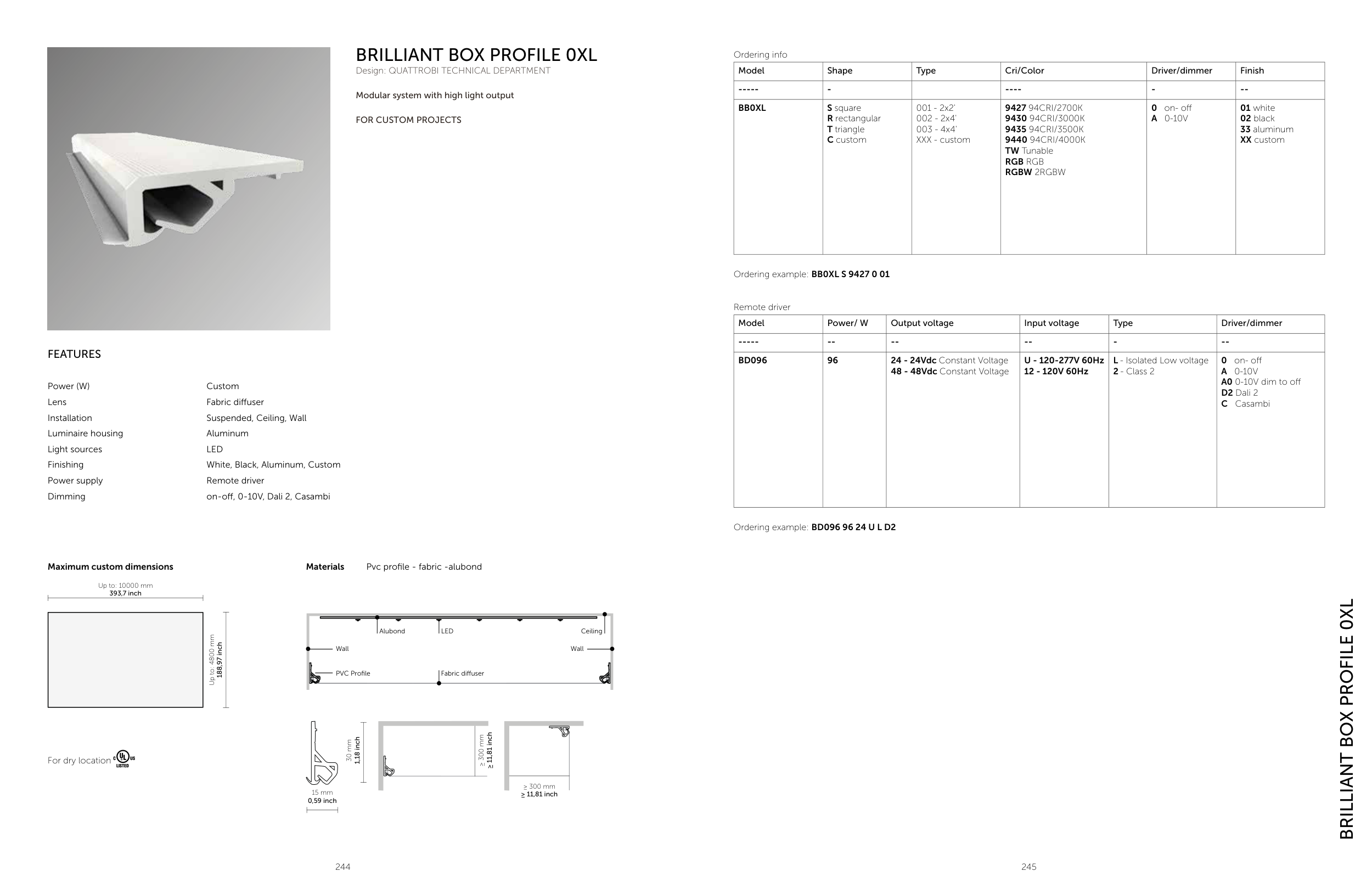

BRILLIANT BOX PROFILE 0XL
Design: QUATTROBI TECHNICAL DEPARTMENT
Modular system with high light output
FOR CUSTOM PROJECTS
For dry location
BRILLIANT BOX PROFILE 0XL
Ordering info
Model
Shape
Type
Cri/Color
Driver/dimmer
Finish
-----
-
----
-
--
BB0XL
S square
R rectangular
T triangle
C custom
001 - 2x2'
002 - 2x4'
003 - 4x4'
XXX - custom
9427 94CRI/2700K
9430 94CRI/3000K
9435 94CRI/3500K
9440 94CRI/4000K
TW Tunable
RGB RGB
RGBW 2RGBW
0 on- off
A 0-10V
01 white
02 black
33 aluminum
XX custom
Ordering example: BB0XL S 9427 0 01
Remote driver
Model
Power/ W
Output voltage
Input voltage
Type
Driver/dimmer
-----
--
--
--
-
--
BD096
96
24 - 24Vdc Constant Voltage
48 - 48Vdc Constant Voltage
U - 120-277V 60Hz
12 - 120V 60Hz
L - Isolated Low voltage
2 - Class 2
0 on- off
A 0-10V
A0 0-10V dim to off
D2 Dali 2
C Casambi
Ordering example: BD096 96 24 U L D2
Maximum custom dimensions
Materials
Pvc profile - fabric -alubond
Up to: 10000 mm
393,7 inch
Up to: 4800 mm
188,97 inch
Fabric diffuser
Wall
Wall
PVC Profile
Alubond
LED
Ceiling
≥ 300 mm
≥ 11,81 inch
30 mm
1,18 inch
≥ 300 mm
≥ 11,81 inch
15 mm
0,59 inch
