200
201
FEATURES
Total fixture Watts
6 - 12 - 18 - 24 - 30
Light beam (°)
Wide
Installation
Track Serie 9500 compatible
Luminaire housing
Aluminium alloys
Protective screen
Microprismatic
Light sources
LED
Finishing
Black
Line voltage
48VDC Class2
Power supply
DC/DC led driver integrated
Dimming
0 - 10V dim, Dali

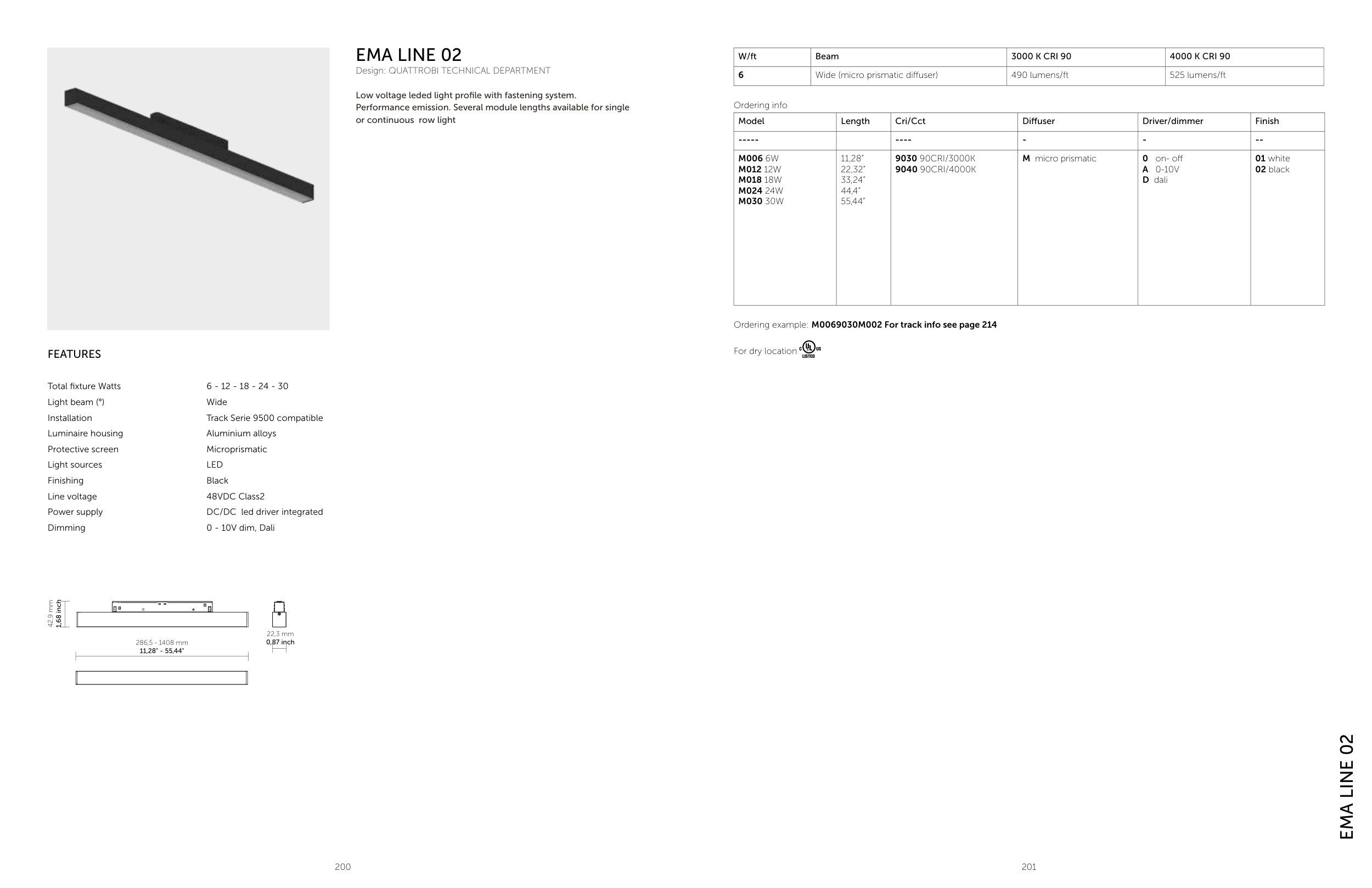

EMA LINE 02
Design: QUATTROBI TECHNICAL DEPARTMENT
Low voltage leded light profile with fastening system.
Performance emission. Several module lengths available for single
or continuous row light
42,9 mm
1,68 inch
22,3 mm
0,87 inch
EMA LINE 02
W/ft
Beam
3000 K CRI 90
4000 K CRI 90
6
Wide (micro prismatic diffuser)
490 lumens/ft
525 lumens/ft
Ordering info
Model
Length
Cri/Cct
Diffuser
Driver/dimmer
Finish
-----
----
-
-
--
M006 6W
M012 12W
M018 18W
M024 24W
M030 30W
11,28”
22,32”
33,24”
44,4”
55,44”
9030 90CRI/3000K
9040 90CRI/4000K
M micro prismatic
0 on- off
A 0-10V
D dali
01 white
02 black
Ordering example: M0069030M002 For track info see page 214
For dry location
286,5 - 1408 mm
11,28" - 55,44"
