42
43
* Disponibile su richiesta / Available on request
* Disponibile su richiesta / Available on request
Specifiche Tecniche
Technical Specifications
Prodotto
Product
Temp. Colore LED
LED Colour Temp.
Ottica
Optic
Finitura
Finish
3W
220~240Vac
236 lm
(alimentatore a bordo/
on board driver)
343PB01H11
-
9027 (2700K)
9030 (3000K)
9040 (4000K)
-
N3 (12°)
F1 (30°)
-
1032 (rame naturale/natural copper)
4003 (grafite/graphite)
4004 (cemento/concrete)
4006 (corten scuro/dark corten)
4008 (verde scuro/dark green)
-
N3H
(12°+honeycomb)
F1H
(30°+honeycomb)
-
1032 (rame naturale/natural copper)
4003 (grafite/graphite)
4004 (cemento/concrete)
4006 (corten scuro/dark corten)
4008 (verde scuro/dark green)
80
90
149
31
104

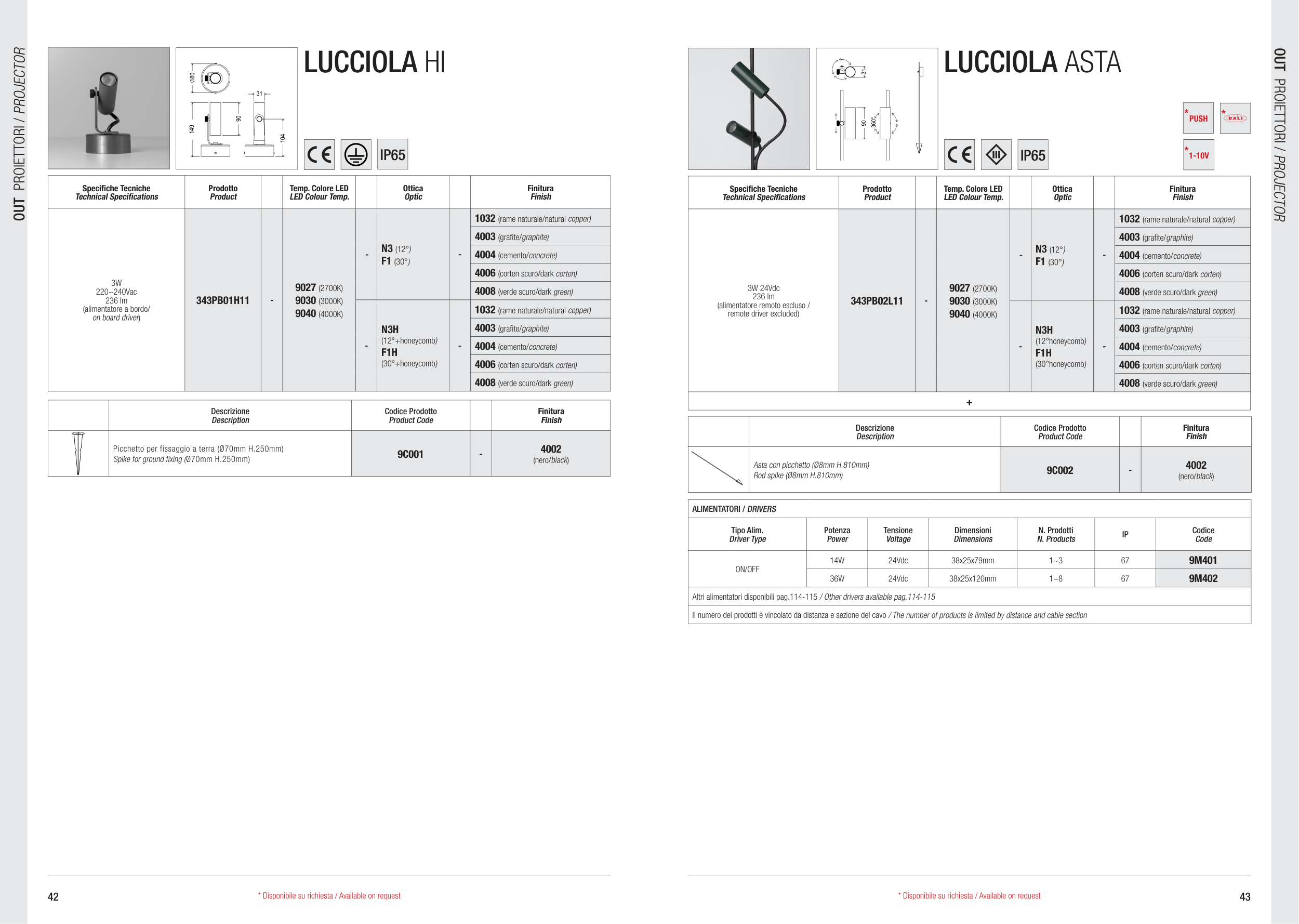

LUCCIOLA HI
IP65
90
31
360°
LUCCIOLA ASTA
PUSH
*
*
1-10V
*
IP65
Specifiche Tecniche
Technical Specifications
Prodotto
Product
Temp. Colore LED
LED Colour Temp.
Ottica
Optic
Finitura
Finish
3W 24Vdc
236 lm
(alimentatore remoto escluso /
remote driver excluded)
343PB02L11
-
9027 (2700K)
9030 (3000K)
9040 (4000K)
-
N3 (12°)
F1 (30°)
-
1032 (rame naturale/natural copper)
4003 (grafite/graphite)
4004 (cemento/concrete)
4006 (corten scuro/dark corten)
4008 (verde scuro/dark green)
-
N3H
(12°honeycomb)
F1H
(30°honeycomb)
-
1032 (rame naturale/natural copper)
4003 (grafite/graphite)
4004 (cemento/concrete)
4006 (corten scuro/dark corten)
4008 (verde scuro/dark green)
+
Descrizione
Description
Codice Prodotto
Product Code
Finitura
Finish
Asta con picchetto (Ø8mm H.810mm)
Rod spike (Ø8mm H.810mm)
9C002
-
4002
(nero/black)
ALIMENTATORI / DRIVERS
Tipo Alim.
Driver Type
Potenza
Power
Tensione
Voltage
Dimensioni
Dimensions
N. Prodotti
N. Products
IP
Codice
Code
ON/OFF
14W
24Vdc
38x25x79mm
1~3
67
9M401
36W
24Vdc
38x25x120mm
1~8
67
9M402
Altri alimentatori disponibili pag.114-115 / Other drivers available pag.114-115
Il numero dei prodotti è vincolato da distanza e sezione del cavo / The number of products is limited by distance and cable section
OUT PROIETTORI / PROJECTOR
OUT PROIETTORI / PROJECTOR
Descrizione
Description
Codice Prodotto
Product Code
Finitura
Finish
Picchetto per fissaggio a terra (Ø70mm H.250mm)
Spike for ground fixing (Ø70mm H.250mm)
9C001
-
4002
(nero/black)
