AC085 – POLE PLATE
Pole plate for pole mounting of all Zeus models,
suitable to be used with poles diam. min 76 mm
and diam. max 120 mm. Can be positioned on
various staggered levels or on a single level, with
the same pole. Made in phospho-chromatised and
polyester powder coated dia-cast copper-free
aluminum material, mouled silicone gaskets and
screws in stainless steel.
Floodlight for outdoor installation on a
façade/wall, with 355° swivel base and
allowing horizontal adjustment of +90° / -40°.
Phospho-chromatised and polyester powder
coated die-cast copper-free aluminium base and
head, tempered safety glass, moulded silicone
gaskets and o-rings, with screws in stainless steel.
Asymmetrical wide light distribution. Swivel joint
with graduated scale and mechanical aiming lock.
Built-in LED driver, with 120 x mid-power SAMSUNG
2835 LED. IP66 rating.

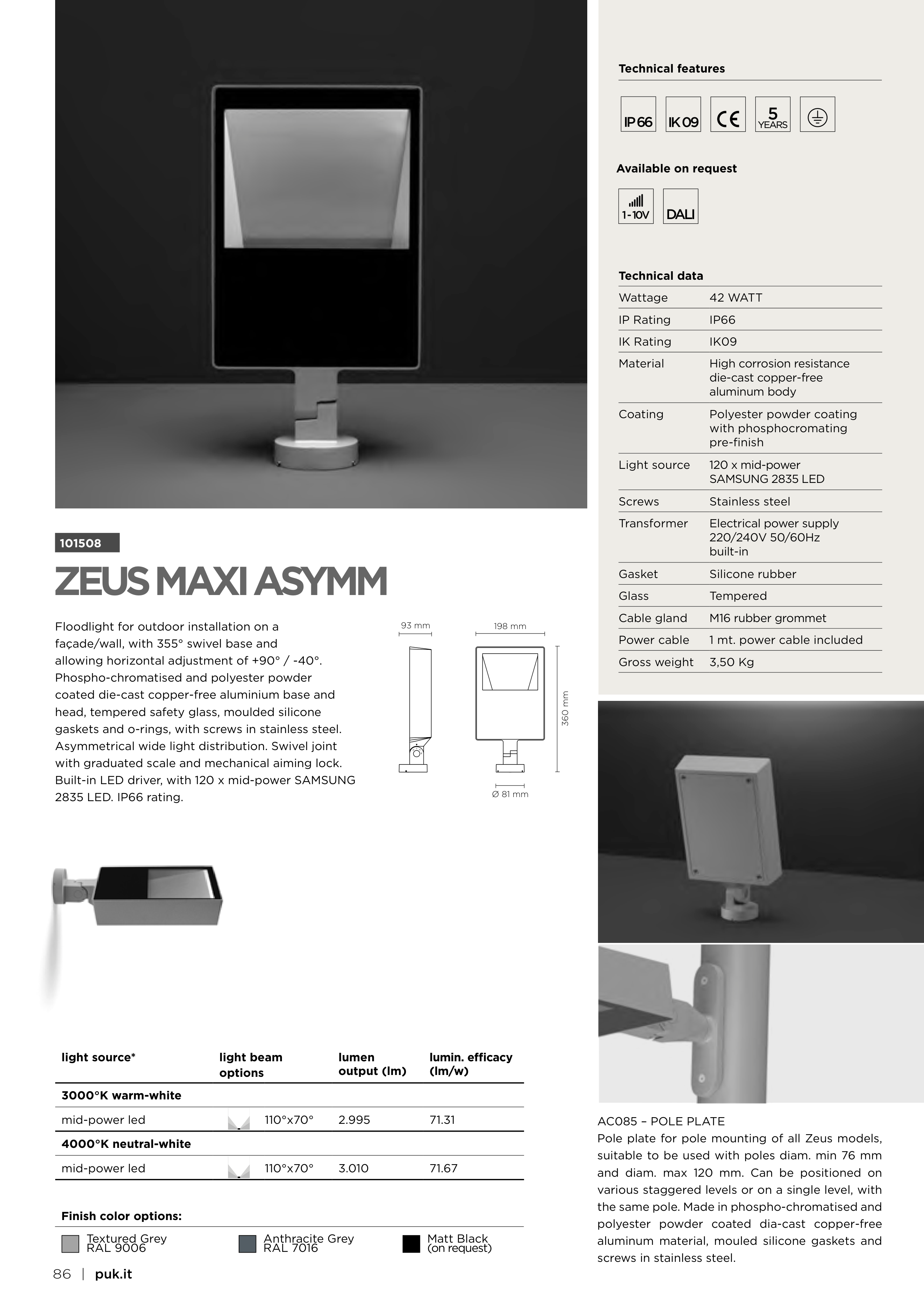

ZEUS MAXI ASYMM
Finish color options:
Textured Grey
RAL 9006
Anthracite Grey
RAL 7016
Matt Black
(on request)
101508
Technical features
Technical data
Wattage
42 WATT
IP Rating
IP66
IK Rating
IK09
Material
High corrosion resistance
die-cast copper-free
aluminum body
Coating
Polyester powder coating
with phosphocromating
pre-finish
Light source
120 x mid-power
SAMSUNG 2835 LED
Screws
Stainless steel
Transformer
Electrical power supply
220/240V 50/60Hz
built-in
Gasket
Silicone rubber
Glass
Tempered
Cable gland
M16 rubber grommet
Power cable
1 mt. power cable included
Gross weight
3,50 Kg
5
198 mm
Ø 81 mm
360 mm
93 mm
light source*
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
3000°K warm-white
mid-power led
110°x70°
2.995
71.31
4000°K neutral-white
mid-power led
110°x70°
3.010
71.67
DALI
1 - 10V
Available on request
