Floodlight for outdoor installation on a
façade/wall, with 355° swivel base and allowing
horizontal adjustment of +90° / -40°.
Phospho-chromatised and polyester powder
coated die-cast copper-free aluminium base and
head, tempered safety glass, moulded silicone
gaskets and o-rings, with screws in stainless steel.
Symmetrical wide light distribution. Swivel joint
with graduated scale and mechanical aiming lock.
Built-in LED driver, with 56 x mid-power SAMSUNG
2835 LED. IP66 rating.

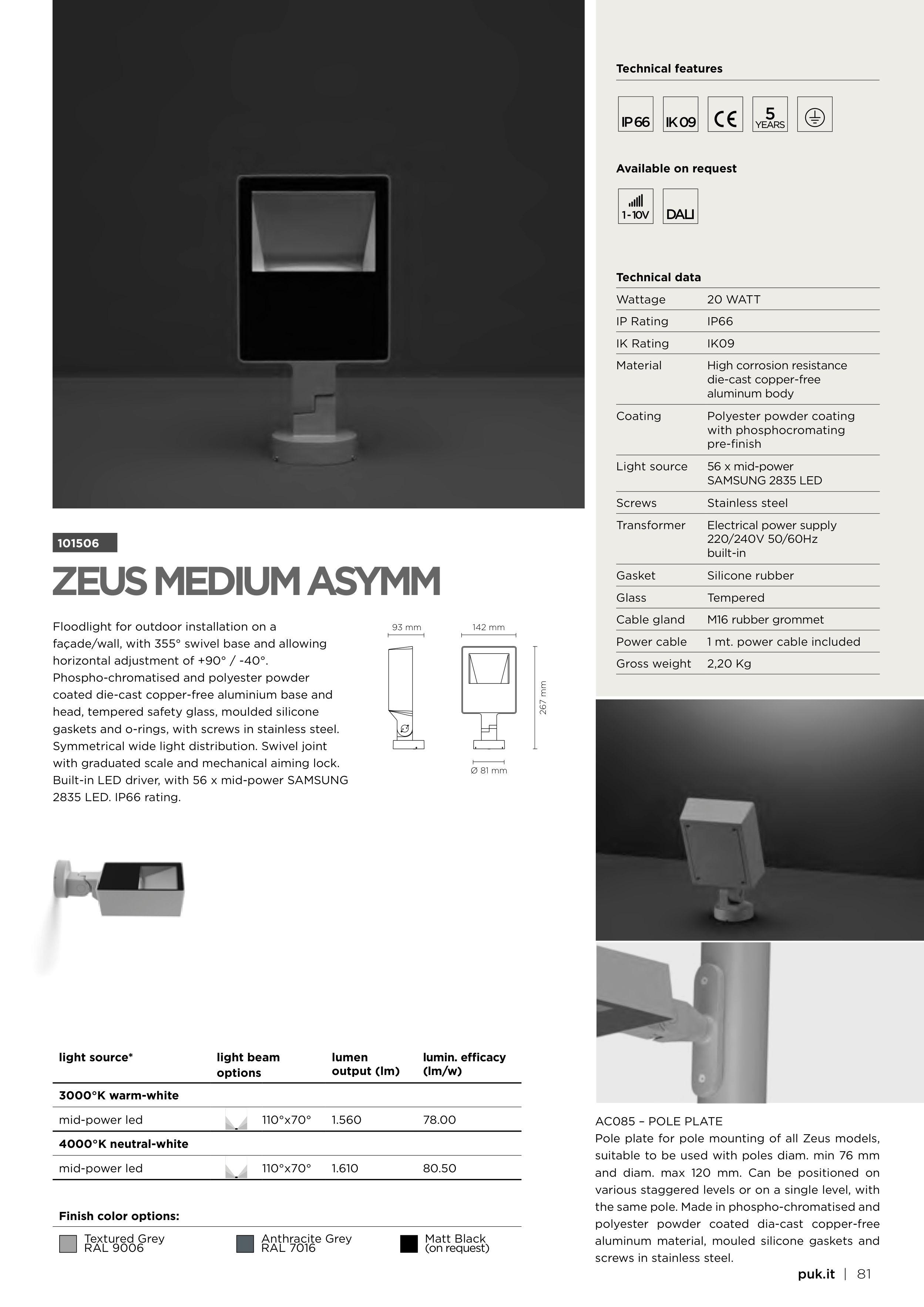

ZEUS MEDIUM ASYMM
Finish color options:
Textured Grey
RAL 9006
Anthracite Grey
RAL 7016
Matt Black
(on request)
101506
Technical features
5
light source*
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
3000°K warm-white
mid-power led
110°x70°
1.560
78.00
4000°K neutral-white
mid-power led
110°x70°
1.610
80.50
Technical data
Wattage
20 WATT
IP Rating
IP66
IK Rating
IK09
Material
High corrosion resistance
die-cast copper-free
aluminum body
Coating
Polyester powder coating
with phosphocromating
pre-finish
Light source
56 x mid-power
SAMSUNG 2835 LED
Screws
Stainless steel
Transformer
Electrical power supply
220/240V 50/60Hz
built-in
Gasket
Silicone rubber
Glass
Tempered
Cable gland
M16 rubber grommet
Power cable
1 mt. power cable included
Gross weight
2,20 Kg
142 mm
Ø 81 mm
267 mm
93 mm
DALI
1 - 10V
Available on request
AC085 – POLE PLATE
Pole plate for pole mounting of all Zeus models,
suitable to be used with poles diam. min 76 mm
and diam. max 120 mm. Can be positioned on
various staggered levels or on a single level, with
the same pole. Made in phospho-chromatised and
polyester powder coated dia-cast copper-free
aluminum material, mouled silicone gaskets and
screws in stainless steel.
