puk.it | 661
808001

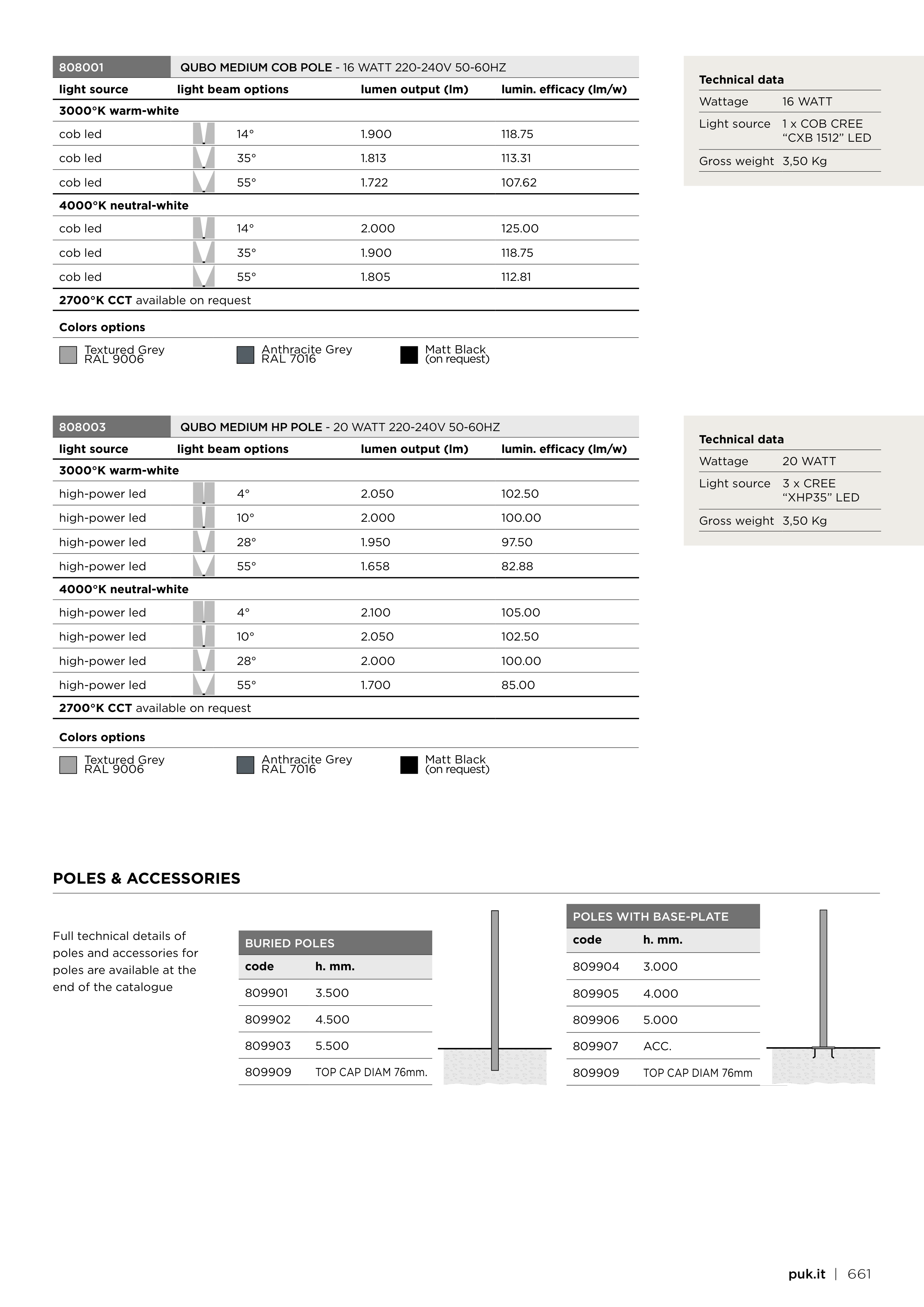

QUBO MEDIUM COB POLE - 16 WATT 220-240V 50-60HZ
light source
light beam options
lumen output (lm)
lumin. efficacy (lm/w)
3000°K warm-white
cob led
14°
1.900
118.75
cob led
35°
1.813
113.31
cob led
55°
1.722
107.62
4000°K neutral-white
cob led
14°
2.000
125.00
cob led
35°
1.900
118.75
cob led
55°
1.805
112.81
2700°K CCT available on request
Full technical details of
poles and accessories for
poles are available at the
end of the catalogue
BURIED POLES
code
h. mm.
809901
3.500
809902
4.500
809903
5.500
809909
TOP CAP DIAM 76mm.
POLES WITH BASE-PLATE
code
h. mm.
809904
3.000
809905
4.000
809906
5.000
809907
ACC.
809909
TOP CAP DIAM 76mm
POLES & ACCESSORIES
Technical data
Wattage
16 WATT
Light source
1 x COB CREE
“CXB 1512” LED
Gross weight 3,50 Kg
Colors options
Textured Grey
RAL 9006
Matt Black
(on request)
Anthracite Grey
RAL 7016
808003
QUBO MEDIUM HP POLE - 20 WATT 220-240V 50-60HZ
light source
light beam options
lumen output (lm)
lumin. efficacy (lm/w)
3000°K warm-white
high-power led
4°
2.050
102.50
high-power led
10°
2.000
100.00
high-power led
28°
1.950
97.50
high-power led
55°
1.658
82.88
4000°K neutral-white
high-power led
4°
2.100
105.00
high-power led
10°
2.050
102.50
high-power led
28°
2.000
100.00
high-power led
55°
1.700
85.00
2700°K CCT available on request
Colors options
Textured Grey
RAL 9006
Matt Black
(on request)
Anthracite Grey
RAL 7016
Technical data
Wattage
20 WATT
Light source
3 x CREE
“XHP35” LED
Gross weight 3,50 Kg
