puk.it | 641
Full technical details of
poles and accessories for
poles are available at the
end of the catalogue

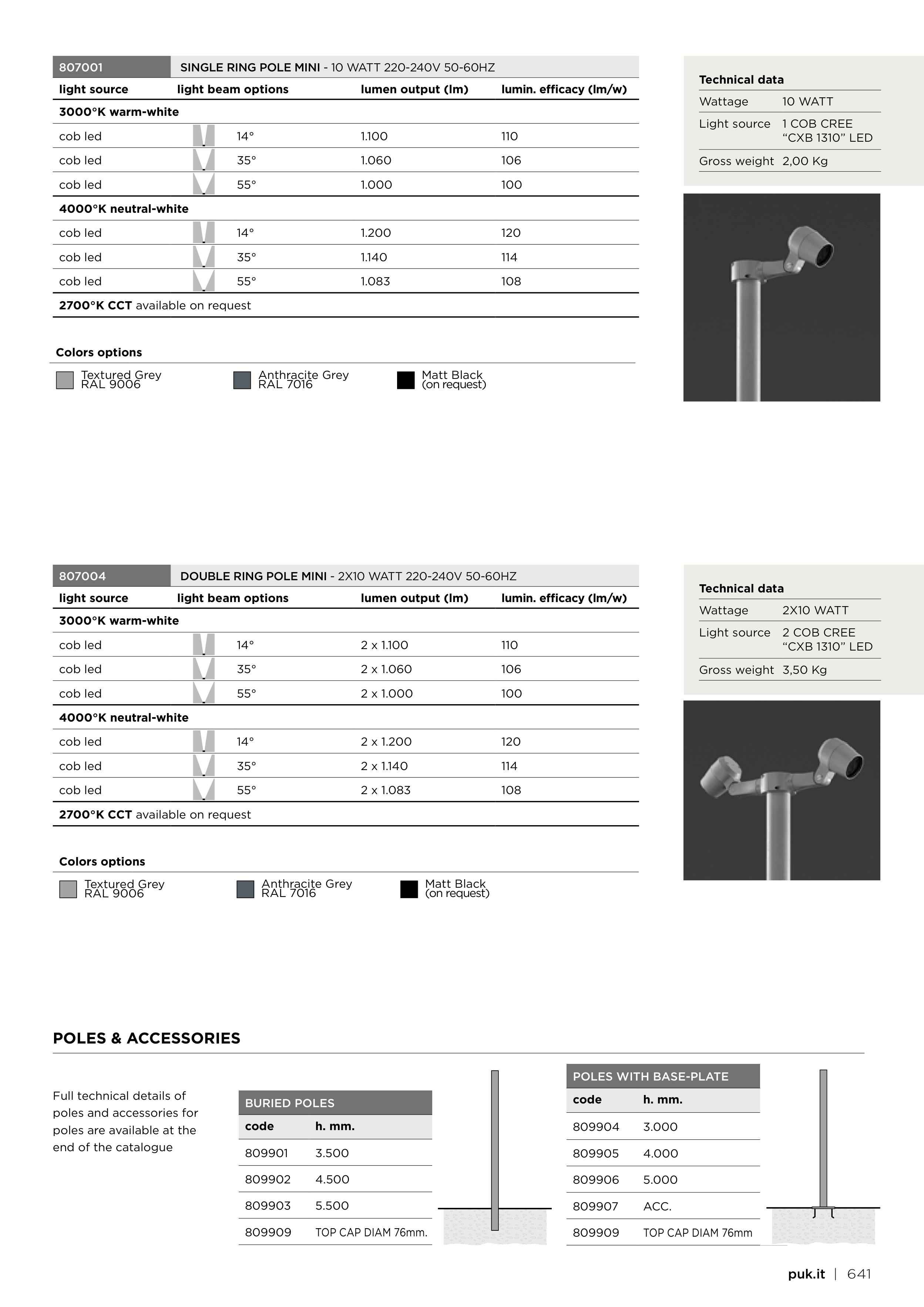

807001
SINGLE RING POLE MINI - 10 WATT 220-240V 50-60HZ
light source
light beam options
lumen output (lm)
lumin. efficacy (lm/w)
3000°K warm-white
cob led
14°
1.100
110
cob led
35°
1.060
106
cob led
55°
1.000
100
4000°K neutral-white
cob led
14°
1.200
120
cob led
35°
1.140
114
cob led
55°
1.083
108
2700°K CCT available on request
807004
DOUBLE RING POLE MINI - 2X10 WATT 220-240V 50-60HZ
light source
light beam options
lumen output (lm)
lumin. efficacy (lm/w)
3000°K warm-white
cob led
14°
2 x 1.100
110
cob led
35°
2 x 1.060
106
cob led
55°
2 x 1.000
100
4000°K neutral-white
cob led
14°
2 x 1.200
120
cob led
35°
2 x 1.140
114
cob led
55°
2 x 1.083
108
2700°K CCT available on request
BURIED POLES
code
h. mm.
809901
3.500
809902
4.500
809903
5.500
809909
TOP CAP DIAM 76mm.
POLES WITH BASE-PLATE
code
h. mm.
809904
3.000
809905
4.000
809906
5.000
809907
ACC.
809909
TOP CAP DIAM 76mm
POLES & ACCESSORIES
Technical data
Wattage
10 WATT
Light source
1 COB CREE
“CXB 1310” LED
Gross weight 2,00 Kg
Colors options
Textured Grey
RAL 9006
Matt Black
(on request)
Anthracite Grey
RAL 7016
Technical data
Wattage
2X10 WATT
Light source
2 COB CREE
“CXB 1310” LED
Gross weight 3,50 Kg
Colors options
Textured Grey
RAL 9006
Matt Black
(on request)
Anthracite Grey
RAL 7016
