62 | puk.it
Diam. 45 mm micro-projector for external use,
ideal to light bushes, flowerbed and gardens
in general. Body made in turned and anodized
aluminum. In horizontal axis it can be oriented up
to 30° down and up to 90° up. Remote 24V DC
driver needed, with 1 x CREE “XPG2” LED.
IP66 rating.

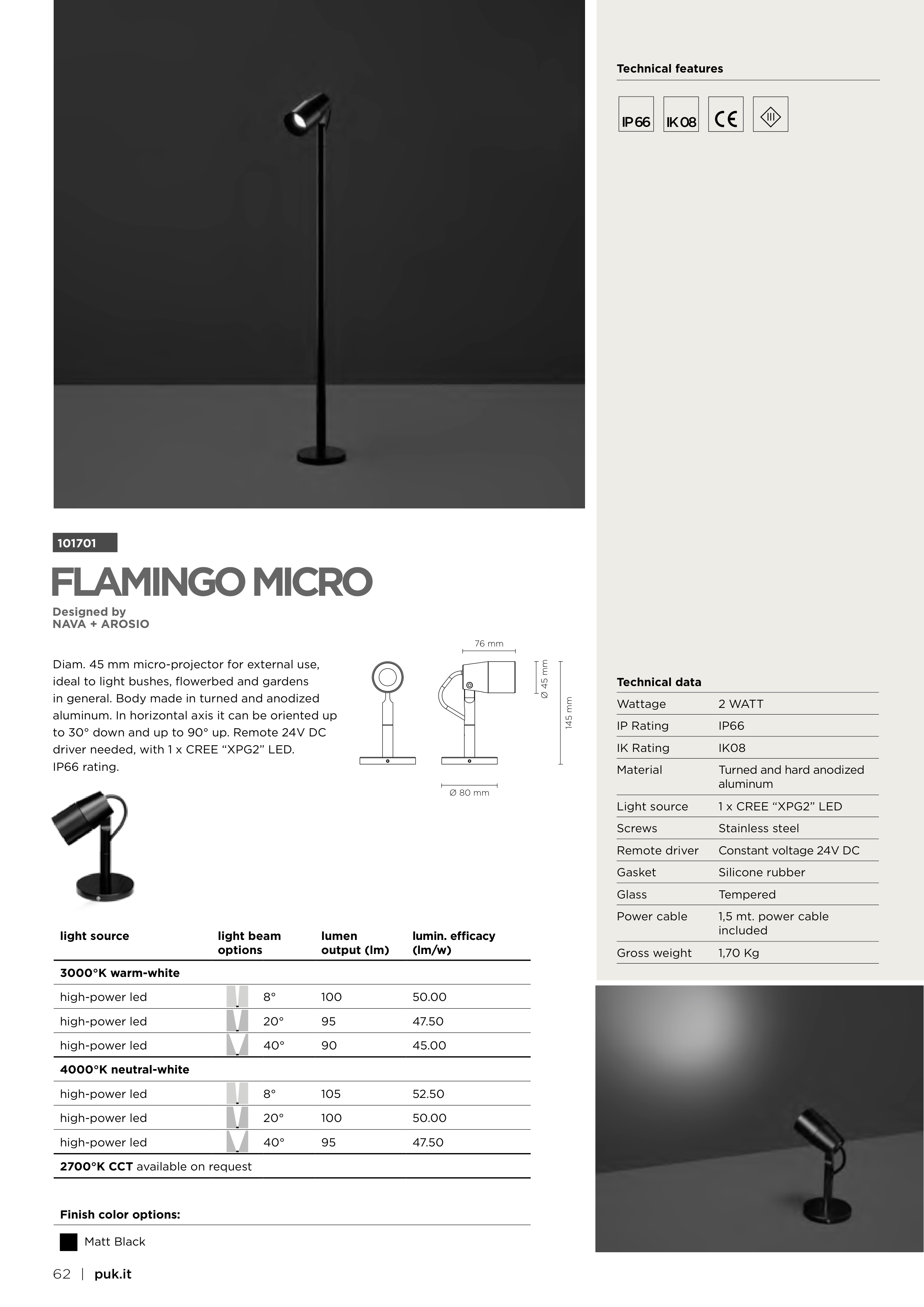

FLAMINGO MICRO
Technical features
Technical data
Wattage
2 WATT
IP Rating
IP66
IK Rating
IK08
Material
Turned and hard anodized
aluminum
Light source
1 x CREE “XPG2” LED
Screws
Stainless steel
Remote driver
Constant voltage 24V DC
Gasket
Silicone rubber
Glass
Tempered
Power cable
1,5 mt. power cable
included
Gross weight
1,70 Kg
101701
Finish color options:
Matt Black
light source
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
3000°K warm-white
high-power led
8°
100
50.00
high-power led
20°
95
47.50
high-power led
40°
90
45.00
4000°K neutral-white
high-power led
8°
105
52.50
high-power led
20°
100
50.00
high-power led
40°
95
47.50
2700°K CCT available on request
Designed by
NAVA + AROSIO
Ø 80 mm
145 mm
76 mm
Ø 45 mm
