602 | puk.it
701512

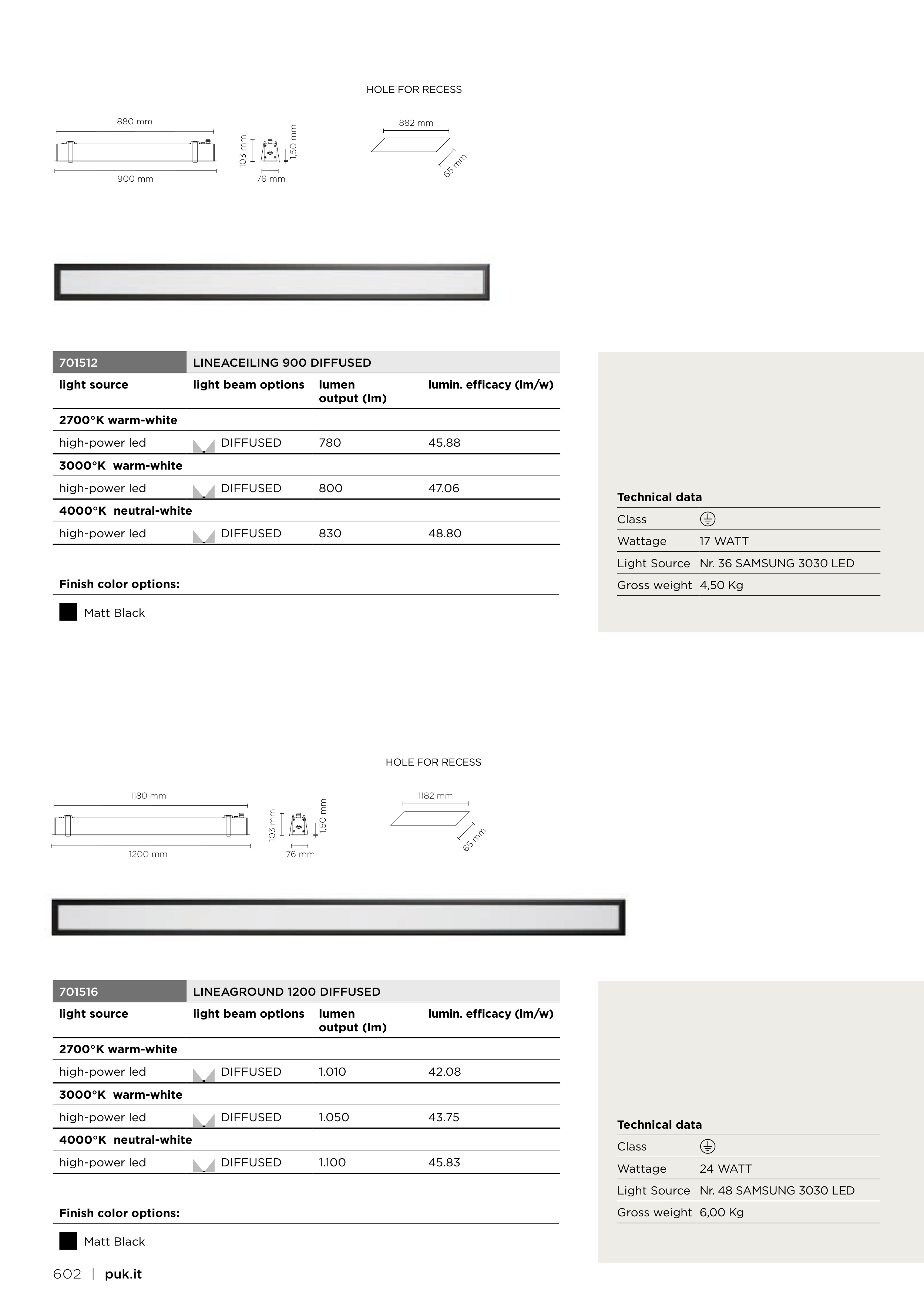

LINEACEILING 900 DIFFUSED
light source
light beam options
lumen
output (lm)
lumin. efficacy (lm/w)
2700°K warm-white
high-power led
DIFFUSED
780
45.88
3000°K warm-white
high-power led
DIFFUSED
800
47.06
4000°K neutral-white
high-power led
DIFFUSED
830
48.80
701516
LINEAGROUND 1200 DIFFUSED
light source
light beam options
lumen
output (lm)
lumin. efficacy (lm/w)
2700°K warm-white
high-power led
DIFFUSED
1.010
42.08
3000°K warm-white
high-power led
DIFFUSED
1.050
43.75
4000°K neutral-white
high-power led
DIFFUSED
1.100
45.83
Finish color options:
Matt Black
Finish color options:
Matt Black
Technical data
Class
Wattage
17 WATT
Light Source Nr. 36 SAMSUNG 3030 LED
Gross weight 4,50 Kg
Technical data
Class
Wattage
24 WATT
Light Source Nr. 48 SAMSUNG 3030 LED
Gross weight 6,00 Kg
900 mm
76 mm
880 mm
103 mm
1,50 mm
1200 mm
76 mm
1180 mm
103 mm
1,50 mm
1182 mm
HOLE FOR RECESS
65 mm
882 mm
HOLE FOR RECESS
65 mm
