puk.it | 57
Technical data
Wattage
14 WATT
IP Rating
IP65
IK Rating
IK08
Material
High corrosion resistance
die-cast copper-free
aluminum body
Coating
Polyester powder coating with
phosphocromating pre-finish
Light source
3 x CREE “XML”
COLOR RGBW LED
Screws
Stainless steel
DMX
DMX interface integrated
Transformer
Electrical power supply
220/240V 50/60Hz built-in
Gasket
Silicone rubber
Glass
Tempered
Power cable
1 mt. power cable included
DMX cable
DMX IN cable included
Gross weight 2,00 Kg
Square floodlight for outdoor installation on a
façade/wall. Phospho-chromatised and polyester
powder coated die-cast copper-free aluminium
body, tempered safety glass, moulded silicone
gasket and stainless steel screws.
Built-in LED driver 220-240V 50-60Hz,
with 8 CREE XP-G3 LED. IP65 rating.

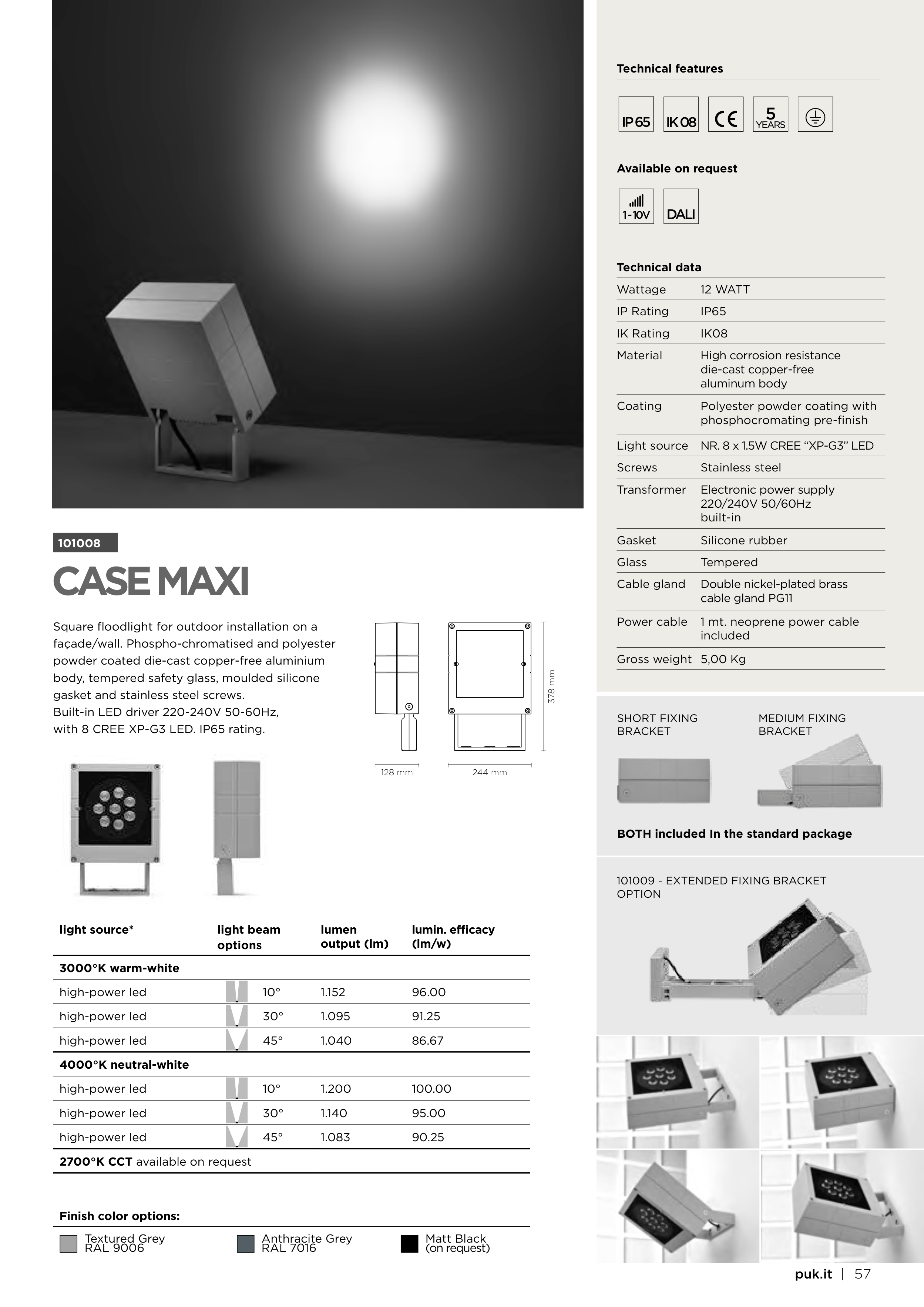

CASE MAXI
Finish color options:
Textured Grey
RAL 9006
Anthracite Grey
RAL 7016
Matt Black
(on request)
101008
Technical data
Wattage
12 WATT
IP Rating
IP65
IK Rating
IK08
Material
High corrosion resistance
die-cast copper-free
aluminum body
Coating
Polyester powder coating with
phosphocromating pre-finish
Light source
NR. 8 x 1.5W CREE “XP-G3” LED
Screws
Stainless steel
Transformer
Electronic power supply
220/240V 50/60Hz
built-in
Gasket
Silicone rubber
Glass
Tempered
Cable gland
Double nickel-plated brass
cable gland PG11
Power cable
1 mt. neoprene power cable
included
Gross weight 5,00 Kg
Technical features
244 mm
128 mm
378 mm
5
101009 - EXTENDED FIXING BRACKET
OPTION
SHORT FIXING
BRACKET
BOTH included In the standard package
MEDIUM FIXING
BRACKET
light source*
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
3000°K warm-white
high-power led
10°
1.152
96.00
high-power led
30°
1.095
91.25
high-power led
45°
1.040
86.67
4000°K neutral-white
high-power led
10°
1.200
100.00
high-power led
30°
1.140
95.00
high-power led
45°
1.083
90.25
2700°K CCT available on request
DALI
1 - 10V
Available on request
