574 | puk.it
Technical data
Wattage
20 WATT
IP Rating
IP66
IK Rating
IK10
Material
High corrosion resistance
die-cast copper-free
aluminum body
Coating
Polyester powder coating
with phosphocromating
pre-finish
Light source
3 x CREE “XHP35” LED
Screws
Stainless steel
Transformer
Electrical power supply
220/240V 50/60Hz built-in
Gasket
Silicone rubber
Glass
Tempered
Power cable
1 mt. power cable included
Gross weight
3,10 Kg
Technical features
Surface mounted luminaire for outdoor ceiling
installation. Phospho-chromatised and polyester
powder coated die-cast copper-free aluminium base
and head, tempered safety glass, moulded silicone
gaskets, with screws in stainless steel. Built-in LED
driver, with 3 x CREE “XHP35” LED. IP66 rating.

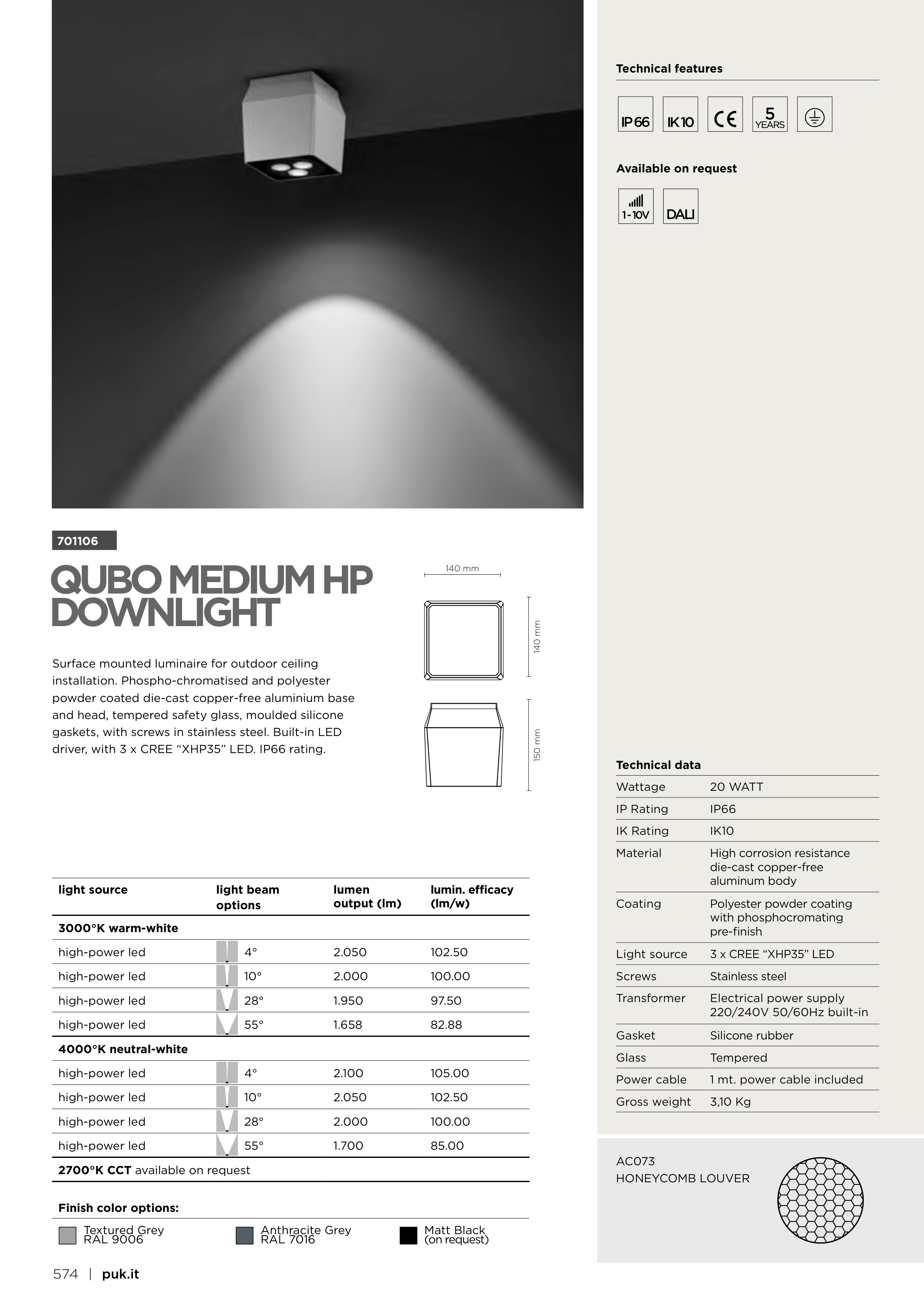

701106
QUBO MEDIUM HP
DOWNLIGHT
light source
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
3000°K warm-white
high-power led
4°
2.050
102.50
high-power led
10°
2.000
100.00
high-power led
28°
1.950
97.50
high-power led
55°
1.658
82.88
4000°K neutral-white
high-power led
4°
2.100
105.00
high-power led
10°
2.050
102.50
high-power led
28°
2.000
100.00
high-power led
55°
1.700
85.00
2700°K CCT available on request
AC073
HONEYCOMB LOUVER
Finish color options:
Textured Grey
RAL 9006
Anthracite Grey
RAL 7016
Matt Black
(on request)
5
140 mm
150 mm
140 mm
DALI
1 - 10V
Available on request
