Technical data
Wattage
8 WATT
IP Rating
IP66
IK Rating
IK10
Material
High corrosion resistance
die-cast copper-free
aluminum body
Coating
Polyester powder coating
with phosphocromating
pre-finish
Light source
1 x CREE “XHP35” LED
Screws
Stainless steel
Transformer
Electrical power supply
220/240V 50/60Hz built-in
Gasket
Silicone rubber
Glass
Tempered
Power cable
1 mt. power cable included
Gross weight
1,30 Kg
Technical features
Surface mounted luminaire for outdoor ceiling
installation. Phospho-chromatised and polyester
powder coated die-cast copper-free aluminium base
and head, tempered safety glass, moulded silicone
gaskets, with screws in stainless steel. Built-in LED
driver, with 1 x CREE “XHP35” LED. IP66 rating.
701105

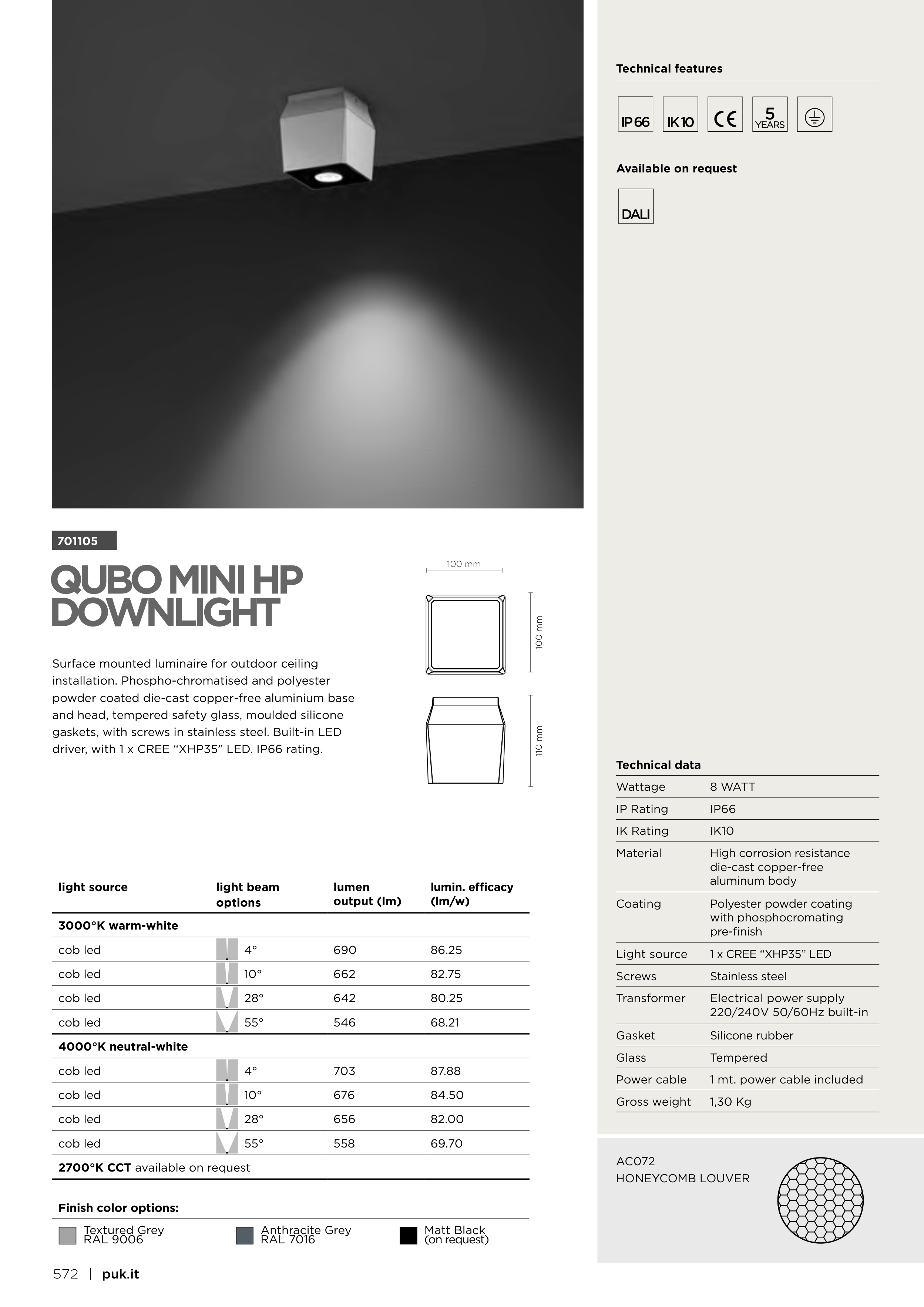

QUBO MINI HP
DOWNLIGHT
5
light source
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
3000°K warm-white
cob led
4°
690
86.25
cob led
10°
662
82.75
cob led
28°
642
80.25
cob led
55°
546
68.21
4000°K neutral-white
cob led
4°
703
87.88
cob led
10°
676
84.50
cob led
28°
656
82.00
cob led
55°
558
69.70
2700°K CCT available on request
AC072
HONEYCOMB LOUVER
Finish color options:
Textured Grey
RAL 9006
Anthracite Grey
RAL 7016
Matt Black
(on request)
100 mm
110 mm
100 mm
Available on request
DALI
