Round shape wall-recessed luminaire for outdoor installation. Body and
frontal cover in hard anodized aluminum with phospho-chromatised and
polyester powder coating, tempered safety glass, moulded silicone gasket.
Asymmetrical light distribution. Remote constant current 350mA driver
needed, with 1 CREE XP-G2 LED. IP68 rating.
Technical features
505001

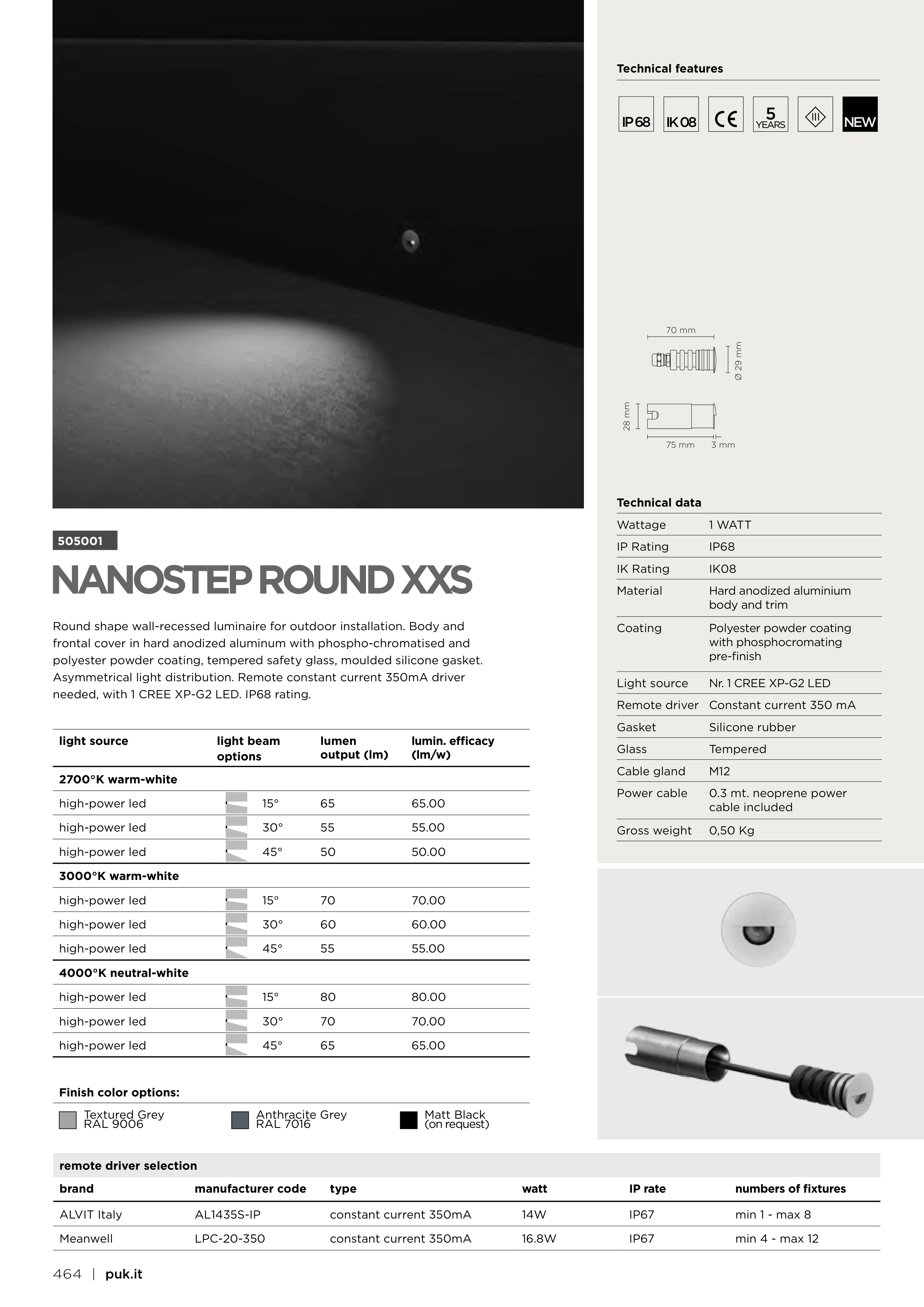

NANOSTEP ROUND XXS
5
NEW
Technical data
Wattage
1 WATT
IP Rating
IP68
IK Rating
IK08
Material
Hard anodized aluminium
body and trim
Coating
Polyester powder coating
with phosphocromating
pre-finish
Light source
Nr. 1 CREE XP-G2 LED
Remote driver
Constant current 350 mA
Gasket
Silicone rubber
Glass
Tempered
Cable gland
M12
Power cable
0.3 mt. neoprene power
cable included
Gross weight
0,50 Kg
Finish color options:
light source
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
2700°K warm-white
high-power led
15°
65
65.00
high-power led
30°
55
55.00
high-power led
45°
50
50.00
3000°K warm-white
high-power led
15°
70
70.00
high-power led
30°
60
60.00
high-power led
45°
55
55.00
4000°K neutral-white
high-power led
15°
80
80.00
high-power led
30°
70
70.00
high-power led
45°
65
65.00
remote driver selection
brand
manufacturer code
type
watt
IP rate
numbers of fixtures
ALVIT Italy
AL1435S-IP
constant current 350mA
14W
IP67
min 1 - max 8
Meanwell
LPC-20-350
constant current 350mA
16.8W
IP67
min 4 - max 12
Textured Grey
RAL 9006
Matt Black
(on request)
Anthracite Grey
RAL 7016
70 mm
28 mm
Ø 29 mm
75 mm
3 mm
