Technical features
5

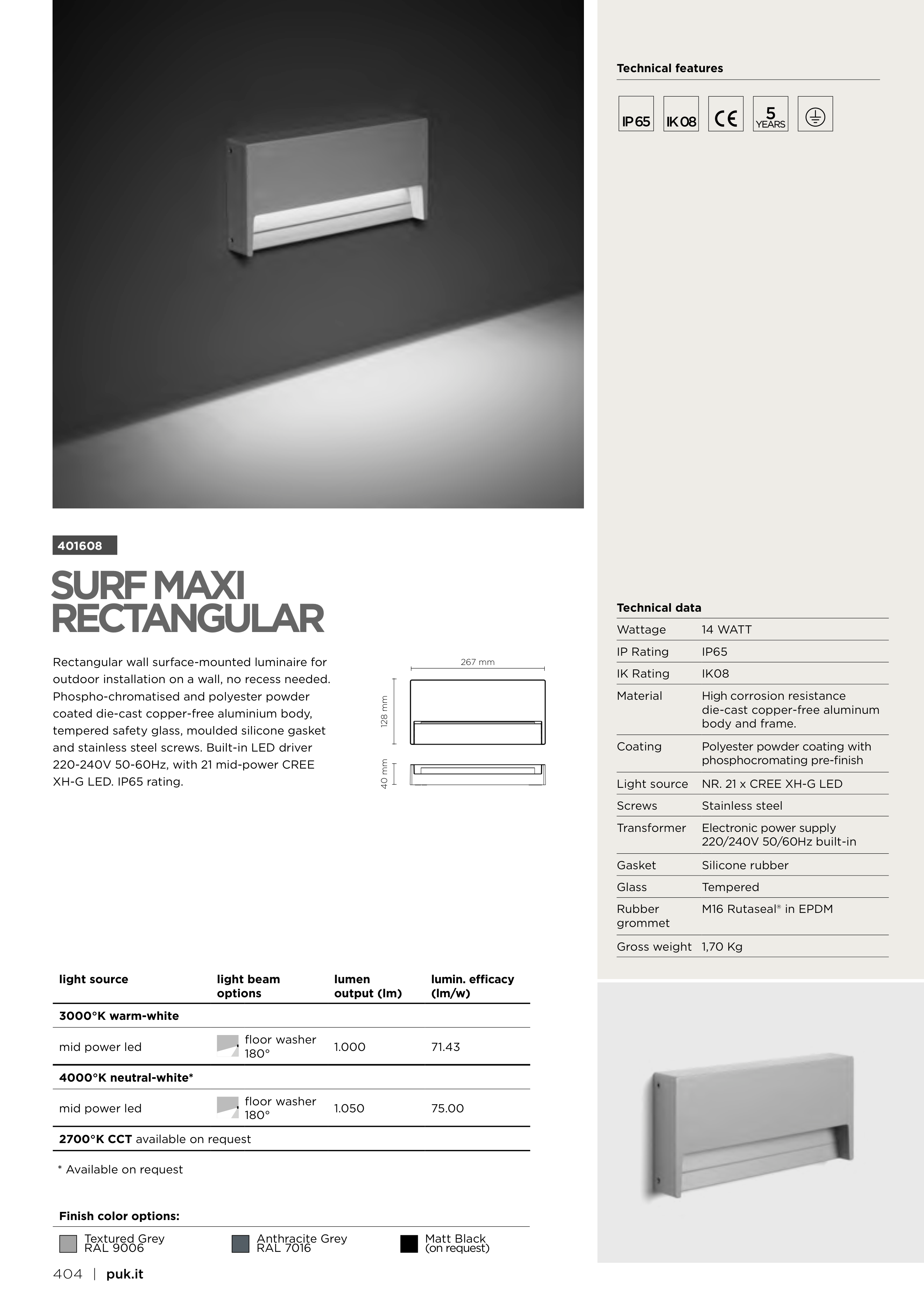

Rectangular wall surface-mounted luminaire for
outdoor installation on a wall, no recess needed.
Phospho-chromatised and polyester powder
coated die-cast copper-free aluminium body,
tempered safety glass, moulded silicone gasket
and stainless steel screws. Built-in LED driver
220-240V 50-60Hz, with 21 mid-power CREE
XH-G LED. IP65 rating.
SURF MAXI
RECTANGULAR
401608
267 mm
40 mm
128 mm
light source
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
3000°K warm-white
mid power led
floor washer
180°
1.000
71.43
4000°K neutral-white*
mid power led
floor washer
180°
1.050
75.00
2700°K CCT available on request
Finish color options:
Technical data
Wattage
14 WATT
IP Rating
IP65
IK Rating
IK08
Material
High corrosion resistance
die-cast copper-free aluminum
body and frame.
Coating
Polyester powder coating with
phosphocromating pre-finish
Light source
NR. 21 x CREE XH-G LED
Screws
Stainless steel
Transformer
Electronic power supply
220/240V 50/60Hz built-in
Gasket
Silicone rubber
Glass
Tempered
Rubber
grommet
M16 Rutaseal® in EPDM
Gross weight
1,70 Kg
Textured Grey
RAL 9006
Matt Black
(on request)
Anthracite Grey
RAL 7016
* Available on request
