200 mm
100 mm
100 mm
3 mm

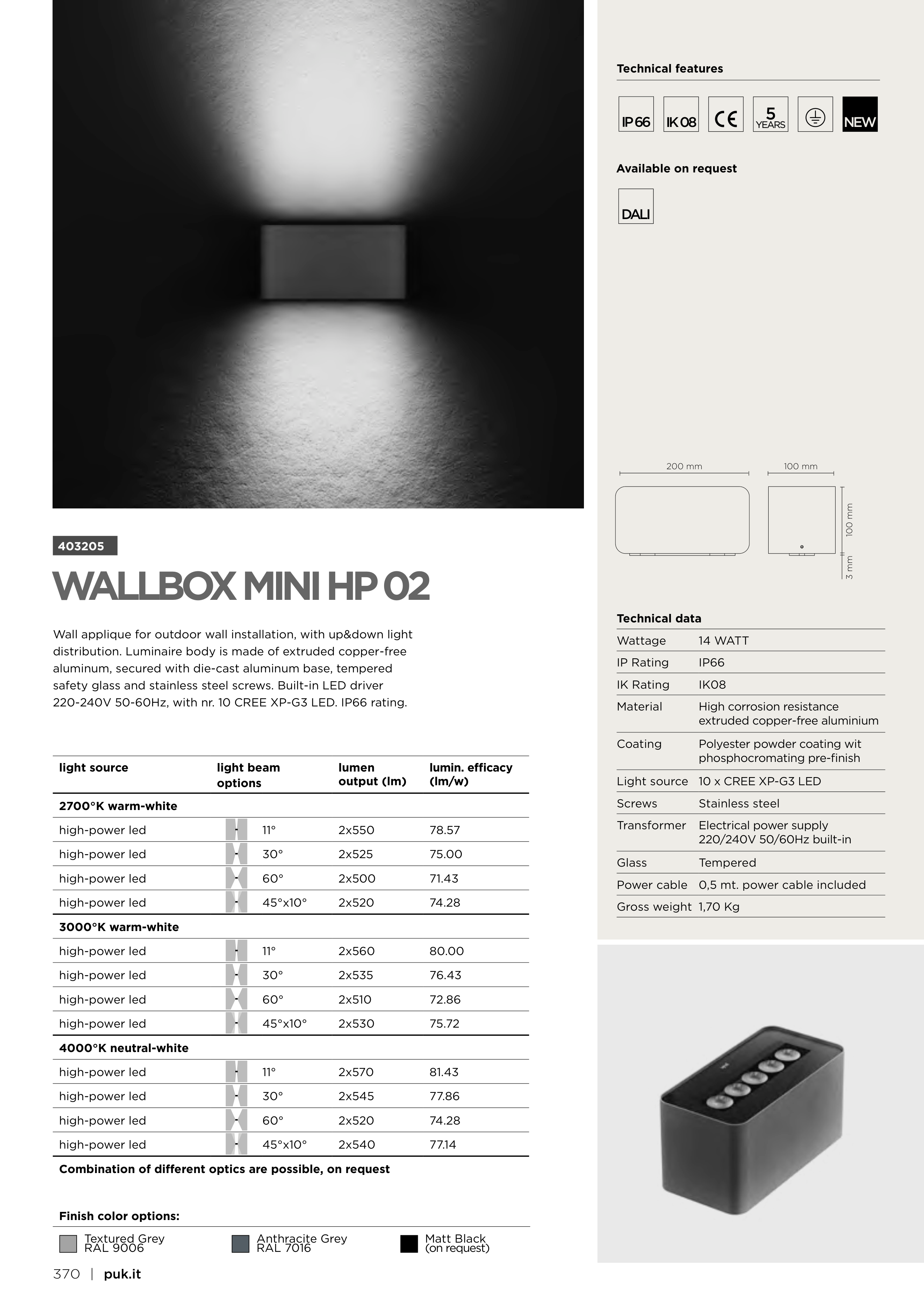

Wall applique for outdoor wall installation, with up&down light
distribution. Luminaire body is made of extruded copper-free
aluminum, secured with die-cast aluminum base, tempered
safety glass and stainless steel screws. Built-in LED driver
220-240V 50-60Hz, with nr. 10 CREE XP-G3 LED. IP66 rating.
WALLBOX MINI HP 02
403205
Technical data
Wattage
14 WATT
IP Rating
IP66
IK Rating
IK08
Material
High corrosion resistance
extruded copper-free aluminium
Coating
Polyester powder coating wit
phosphocromating pre-finish
Light source
10 x CREE XP-G3 LED
Screws
Stainless steel
Transformer
Electrical power supply
220/240V 50/60Hz built-in
Glass
Tempered
Power cable
0,5 mt. power cable included
Gross weight 1,70 Kg
Finish color options:
light source
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
2700°K warm-white
high-power led
11°
2x550
78.57
high-power led
30°
2x525
75.00
high-power led
60°
2x500
71.43
high-power led
45°x10°
2x520
74.28
3000°K warm-white
high-power led
11°
2x560
80.00
high-power led
30°
2x535
76.43
high-power led
60°
2x510
72.86
high-power led
45°x10°
2x530
75.72
4000°K neutral-white
high-power led
11°
2x570
81.43
high-power led
30°
2x545
77.86
high-power led
60°
2x520
74.28
high-power led
45°x10°
2x540
77.14
Combination of different optics are possible, on request
Textured Grey
RAL 9006
Matt Black
(on request)
Anthracite Grey
RAL 7016
Technical features
5
NEW
DALI
Available on request
