Floodlight for outdoor installation on a
façade/wall, with U shape fixing bracket
allowing vertical adjustment of +90° / -40°.
Phospho-chromatised and polyester powder
coated die-cast copper-free aluminium base
and head, tempered safety glass, moulded
silicone gaskets, with screws in stainless steel.
Built-in LED driver, with 3 x CREE “XHP35” LED.
IP66 rating.

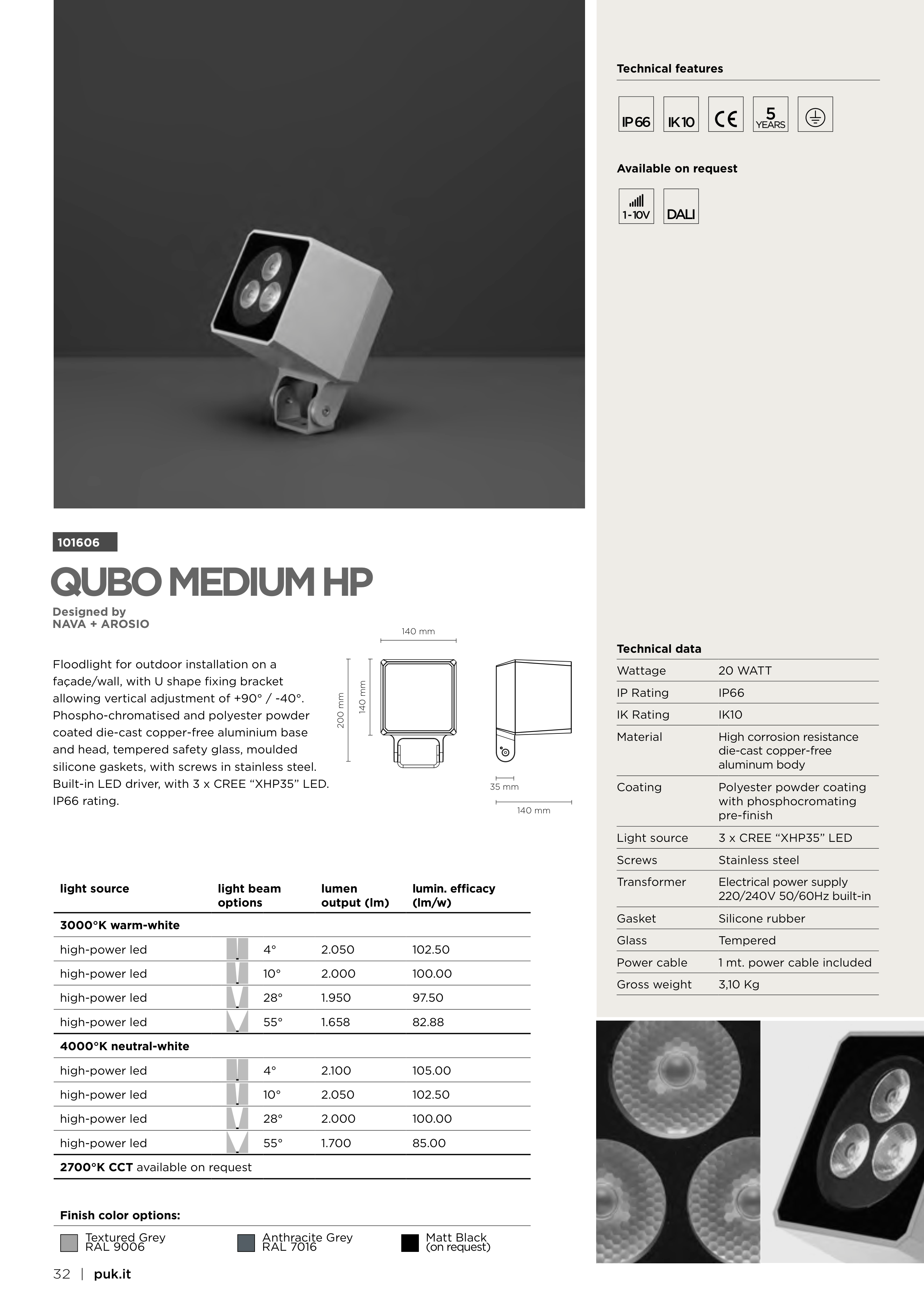

QUBO MEDIUM HP
101606
Technical features
5
Technical data
Wattage
20 WATT
IP Rating
IP66
IK Rating
IK10
Material
High corrosion resistance
die-cast copper-free
aluminum body
Coating
Polyester powder coating
with phosphocromating
pre-finish
Light source
3 x CREE “XHP35” LED
Screws
Stainless steel
Transformer
Electrical power supply
220/240V 50/60Hz built-in
Gasket
Silicone rubber
Glass
Tempered
Power cable
1 mt. power cable included
Gross weight
3,10 Kg
Finish color options:
Textured Grey
RAL 9006
Anthracite Grey
RAL 7016
Matt Black
(on request)
light source
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
3000°K warm-white
high-power led
4°
2.050
102.50
high-power led
10°
2.000
100.00
high-power led
28°
1.950
97.50
high-power led
55°
1.658
82.88
4000°K neutral-white
high-power led
4°
2.100
105.00
high-power led
10°
2.050
102.50
high-power led
28°
2.000
100.00
high-power led
55°
1.700
85.00
2700°K CCT available on request
Designed by
NAVA + AROSIO
140 mm
200 mm
140 mm
35 mm
140 mm
DALI
1 - 10V
Available on request
