Technical data
IP Rating
IP67
IK Rating
IK10
Material
high corrosion resistance
extruded copper-free
aluminum
Coating
anodizing treatment +
protective powder coating
Screws
Stainless steel
Transformer
Electrical power supply
220/240V 50/60Hz built-in
Gasket
Silicone rubber
Glass
Tempered
Cable gland
PG9 cable gland
Power cable
1 mt. neoprene power cable
included, in & out cable for
loop-in loop-out connection
available on request
201204

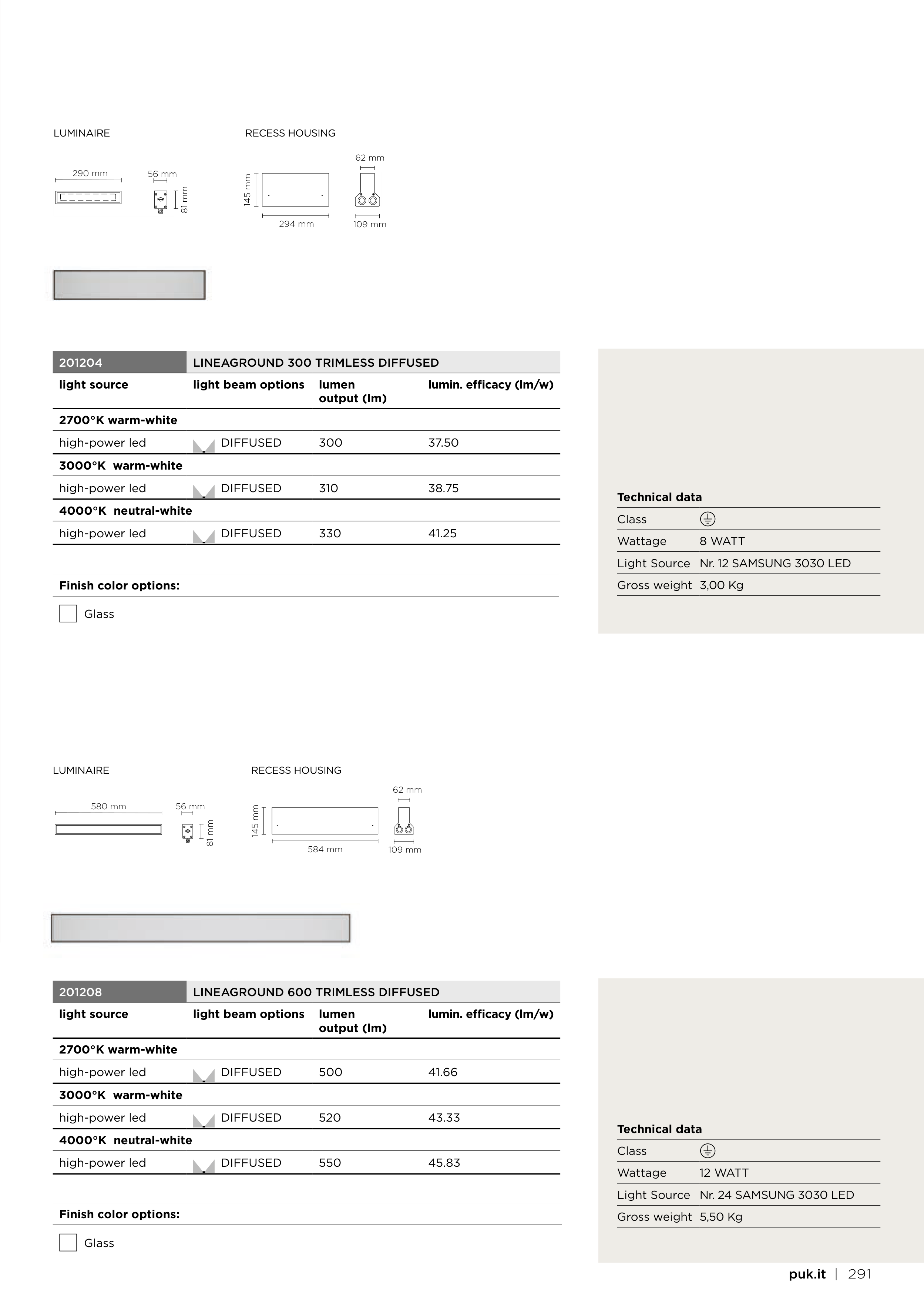

LINEAGROUND 300 TRIMLESS DIFFUSED
light source
light beam options
lumen
output (lm)
lumin. efficacy (lm/w)
2700°K warm-white
high-power led
DIFFUSED
300
37.50
3000°K warm-white
high-power led
DIFFUSED
310
38.75
4000°K neutral-white
high-power led
DIFFUSED
330
41.25
201208
LINEAGROUND 600 TRIMLESS DIFFUSED
light source
light beam options
lumen
output (lm)
lumin. efficacy (lm/w)
2700°K warm-white
high-power led
DIFFUSED
500
41.66
3000°K warm-white
high-power led
DIFFUSED
520
43.33
4000°K neutral-white
high-power led
DIFFUSED
550
45.83
Technical data
Class
Wattage
8 WATT
Light Source Nr. 12 SAMSUNG 3030 LED
Gross weight 3,00 Kg
Technical data
Class
Wattage
12 WATT
Light Source Nr. 24 SAMSUNG 3030 LED
Gross weight 5,50 Kg
Finish color options:
Glass
Finish color options:
Glass
290 mm
56 mm
81 mm
LUMINAIRE
RECESS HOUSING
62 mm
109 mm
294 mm
145 mm
580 mm
56 mm
81 mm
LUMINAIRE
RECESS HOUSING
62 mm
109 mm
584 mm
145 mm
