286 | puk.it

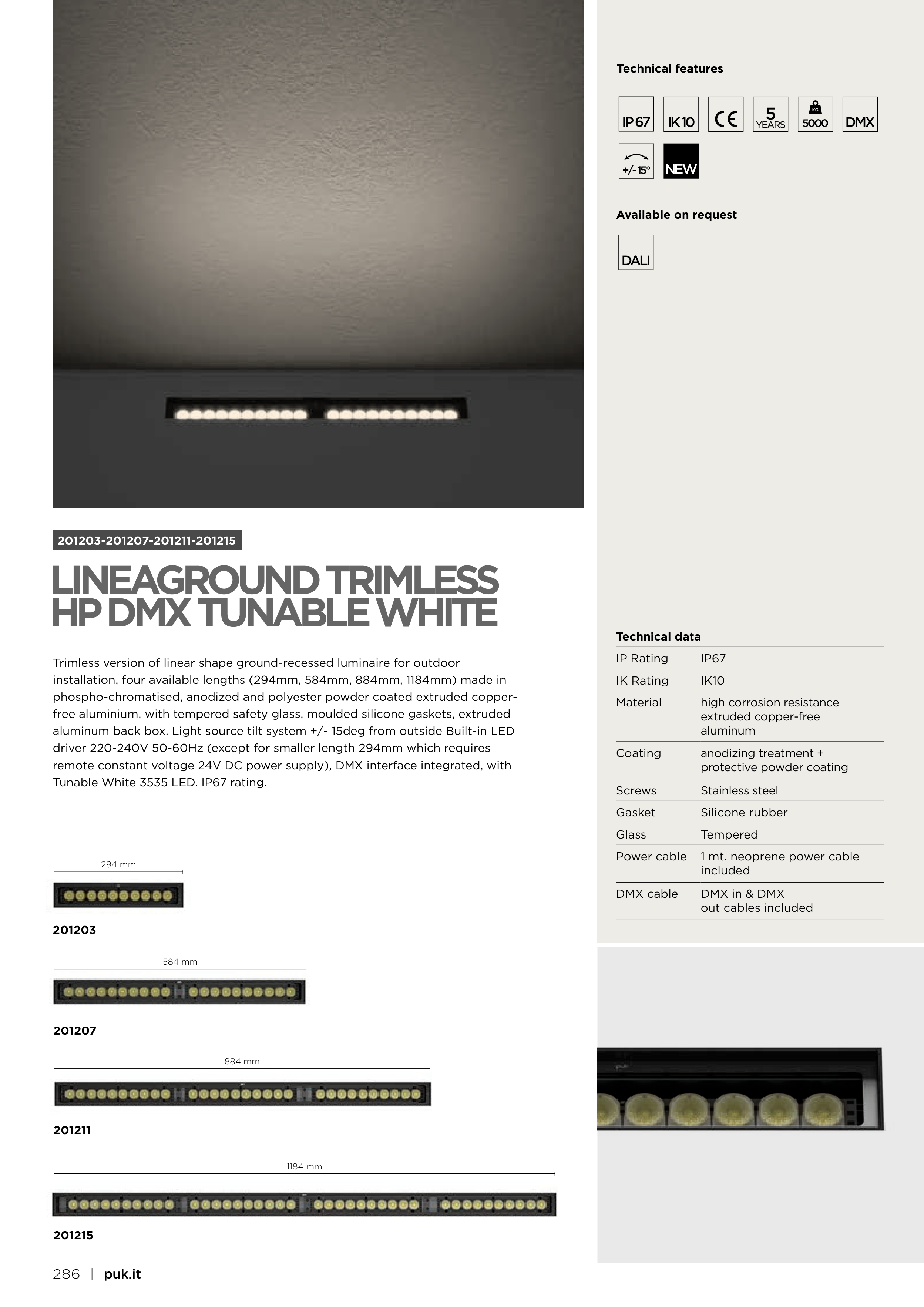

LINEAGROUND TRIMLESS
HP DMX TUNABLE WHITE
201203-201207-201211-201215
Trimless version of linear shape ground-recessed luminaire for outdoor
installation, four available lengths (294mm, 584mm, 884mm, 1184mm) made in
phospho-chromatised, anodized and polyester powder coated extruded copper-
free aluminium, with tempered safety glass, moulded silicone gaskets, extruded
aluminum back box. Light source tilt system +/- 15deg from outside Built-in LED
driver 220-240V 50-60Hz (except for smaller length 294mm which requires
remote constant voltage 24V DC power supply), DMX interface integrated, with
Tunable White 3535 LED. IP67 rating.
Technical features
Technical data
IP Rating
IP67
IK Rating
IK10
Material
high corrosion resistance
extruded copper-free
aluminum
Coating
anodizing treatment +
protective powder coating
Screws
Stainless steel
Gasket
Silicone rubber
Glass
Tempered
Power cable
1 mt. neoprene power cable
included
DMX cable
DMX in & DMX
out cables included
Technical features
5
NEW
+/- 15°
5000
DMX
DALI
Available on request
201203
201207
201211
201215
294 mm
584 mm
884 mm
1184 mm
