282 | puk.it

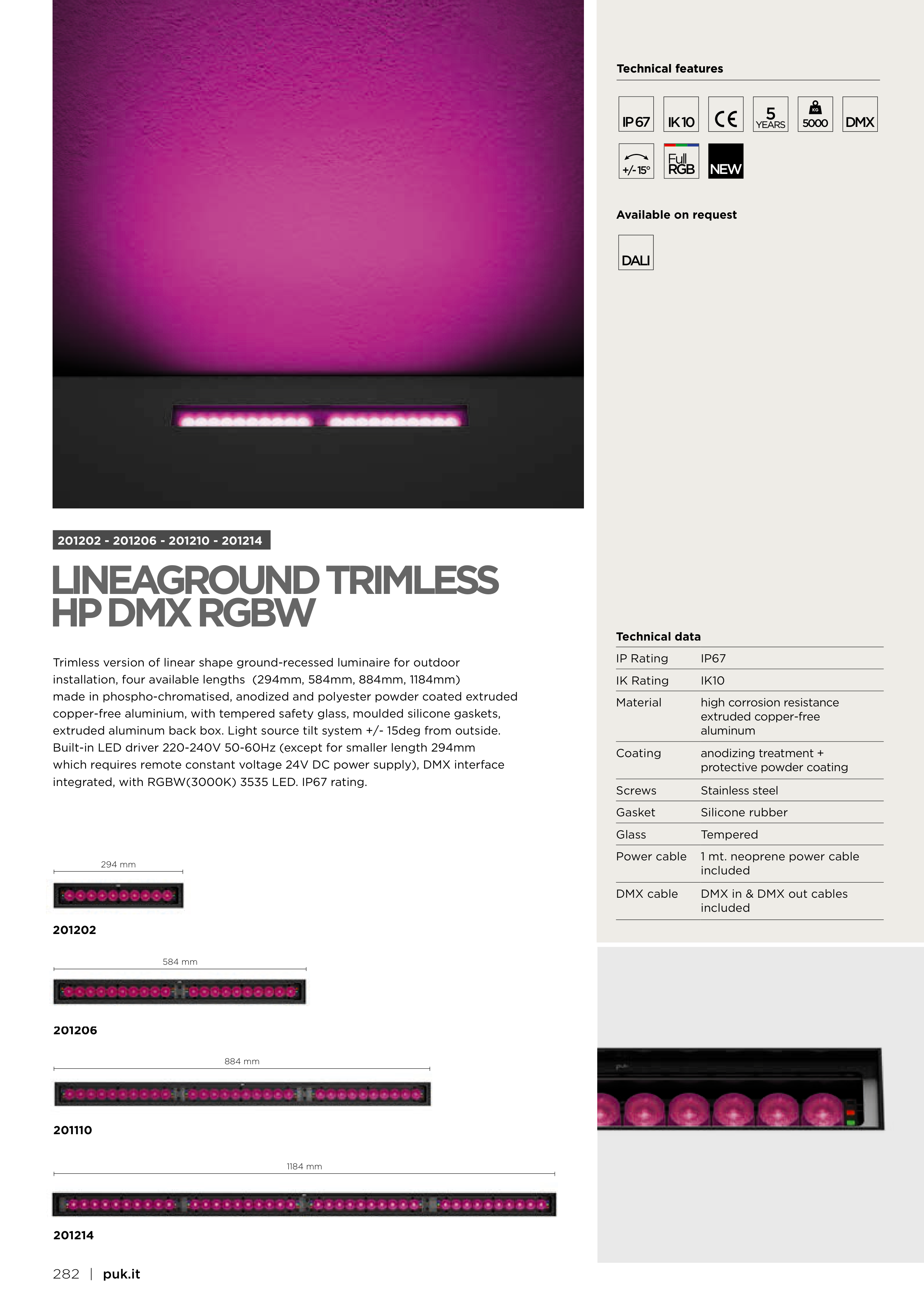

LINEAGROUND TRIMLESS
HP DMX RGBW
201202 - 201206 - 201210 - 201214
Trimless version of linear shape ground-recessed luminaire for outdoor
installation, four available lengths (294mm, 584mm, 884mm, 1184mm)
made in phospho-chromatised, anodized and polyester powder coated extruded
copper-free aluminium, with tempered safety glass, moulded silicone gaskets,
extruded aluminum back box. Light source tilt system +/- 15deg from outside.
Built-in LED driver 220-240V 50-60Hz (except for smaller length 294mm
which requires remote constant voltage 24V DC power supply), DMX interface
integrated, with RGBW(3000K) 3535 LED. IP67 rating.
Technical features
Technical data
IP Rating
IP67
IK Rating
IK10
Material
high corrosion resistance
extruded copper-free
aluminum
Coating
anodizing treatment +
protective powder coating
Screws
Stainless steel
Gasket
Silicone rubber
Glass
Tempered
Power cable
1 mt. neoprene power cable
included
DMX cable
DMX in & DMX out cables
included
Technical features
NEW
5
+/- 15°
5000
DMX
DALI
Available on request
201206
201110
201114
RGB
Full
294 mm
584 mm
884 mm
1184 mm
201202
201214
