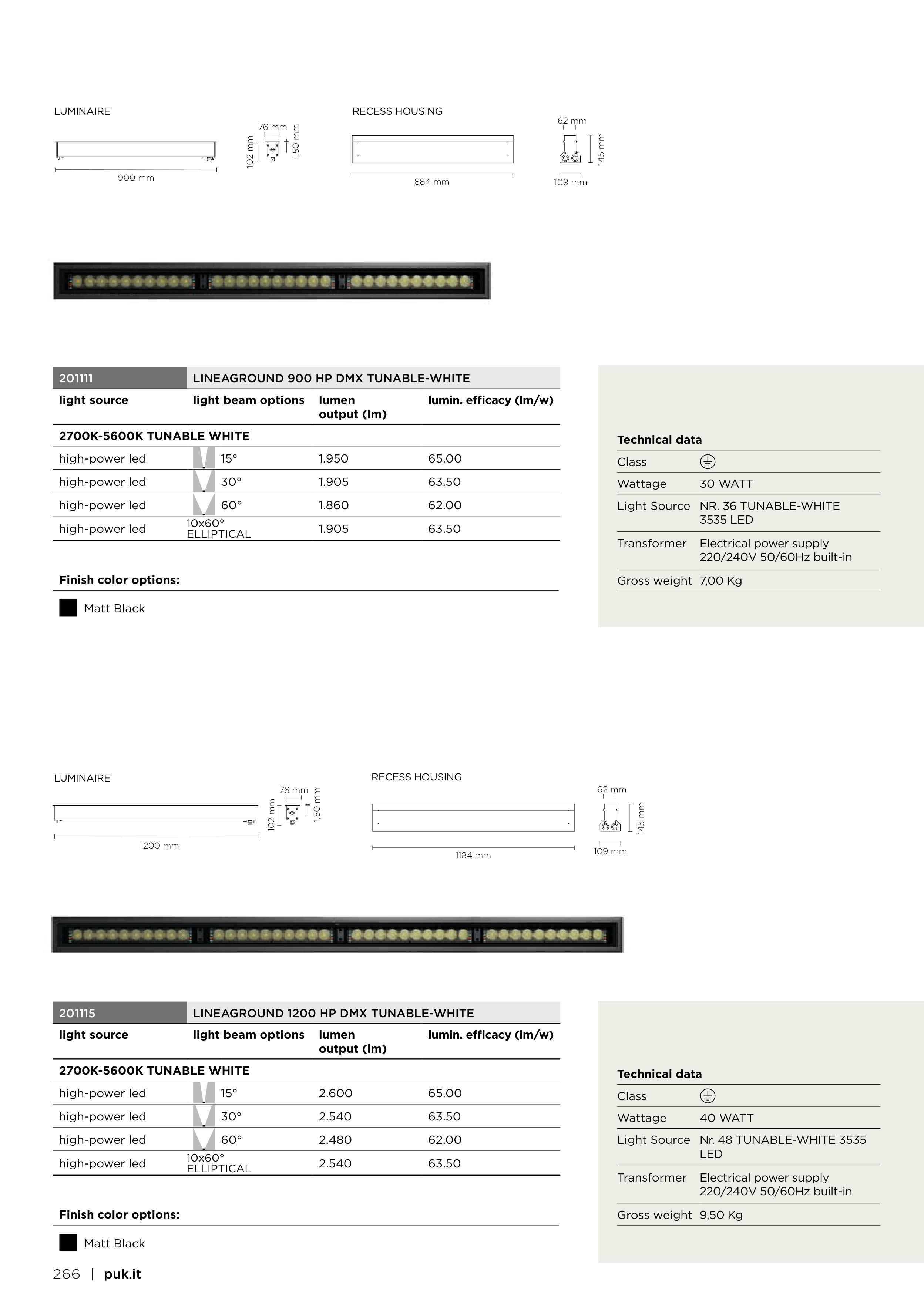

266 | puk.it
201111
LINEAGROUND 900 HP DMX TUNABLE-WHITE
light source
light beam options
lumen
output (lm)
lumin. efficacy (lm/w)
2700K-5600K TUNABLE WHITE
high-power led
15°
1.950
65.00
high-power led
30°
1.905
63.50
high-power led
60°
1.860
62.00
high-power led
10x60°
ELLIPTICAL
1.905
63.50
Finish color options:
Matt Black
Technical data
Class
Wattage
30 WATT
Light Source NR. 36 TUNABLE-WHITE
3535 LED
Transformer
Electrical power supply
220/240V 50/60Hz built-in
Gross weight 7,00 Kg
201115
LINEAGROUND 1200 HP DMX TUNABLE-WHITE
light source
light beam options
lumen
output (lm)
lumin. efficacy (lm/w)
2700K-5600K TUNABLE WHITE
high-power led
15°
2.600
65.00
high-power led
30°
2.540
63.50
high-power led
60°
2.480
62.00
high-power led
10x60°
ELLIPTICAL
2.540
63.50
Finish color options:
Matt Black
Technical data
Class
Wattage
40 WATT
Light Source Nr. 48 TUNABLE-WHITE 3535
LED
Transformer
Electrical power supply
220/240V 50/60Hz built-in
Gross weight 9,50 Kg
LUMINAIRE
900 mm
102 mm
1,50 mm
76 mm
RECESS HOUSING
62 mm
884 mm
109 mm
145 mm
LUMINAIRE
1200 mm
102 mm
1,50 mm
76 mm
RECESS HOUSING
62 mm
1184 mm
109 mm
145 mm
