puk.it | 199
Technical data
Wattage
19 WATT
IP Rating
IP67
IK Rating
IK10
Material
High corrosion resistance
die-cast copper-free
aluminum body
Trim
Stainless steel AISI 304
Coating
Polyester powder coating
with phosphocromating
pre-finish
Light source
Nr. 1 CREE CXB 2530 COB LED
Screws
Stainless steel
Transformer
Electronic power supply
220/240V 50/60Hz
built-in
Static weight
resistance
Max 5000 Kg
Gasket
Silicone rubber
Glass
Tempered
Cable gland
Double M20
Adjustable
+/- 15 degrees
Power cable
1 mt. neoprene power cable
included
Gross weight
4,00 Kg
Included
Polypropilene recessing box
included
Technical features
Ground-recessed luminaire in round shape for
outdoor installation, phospho-chromatised and
polyester powder coated die-cast copper-free
aluminium body and stainless steel AISI 304
frame, tempered safety glass, moulded silicone
gasket. Symmetrical light distribution with
adjustable optics. Built-in LED driver 220-240V
50-60Hz, with 1 CREE CXB 2530 COB LED.
IP67 rating.

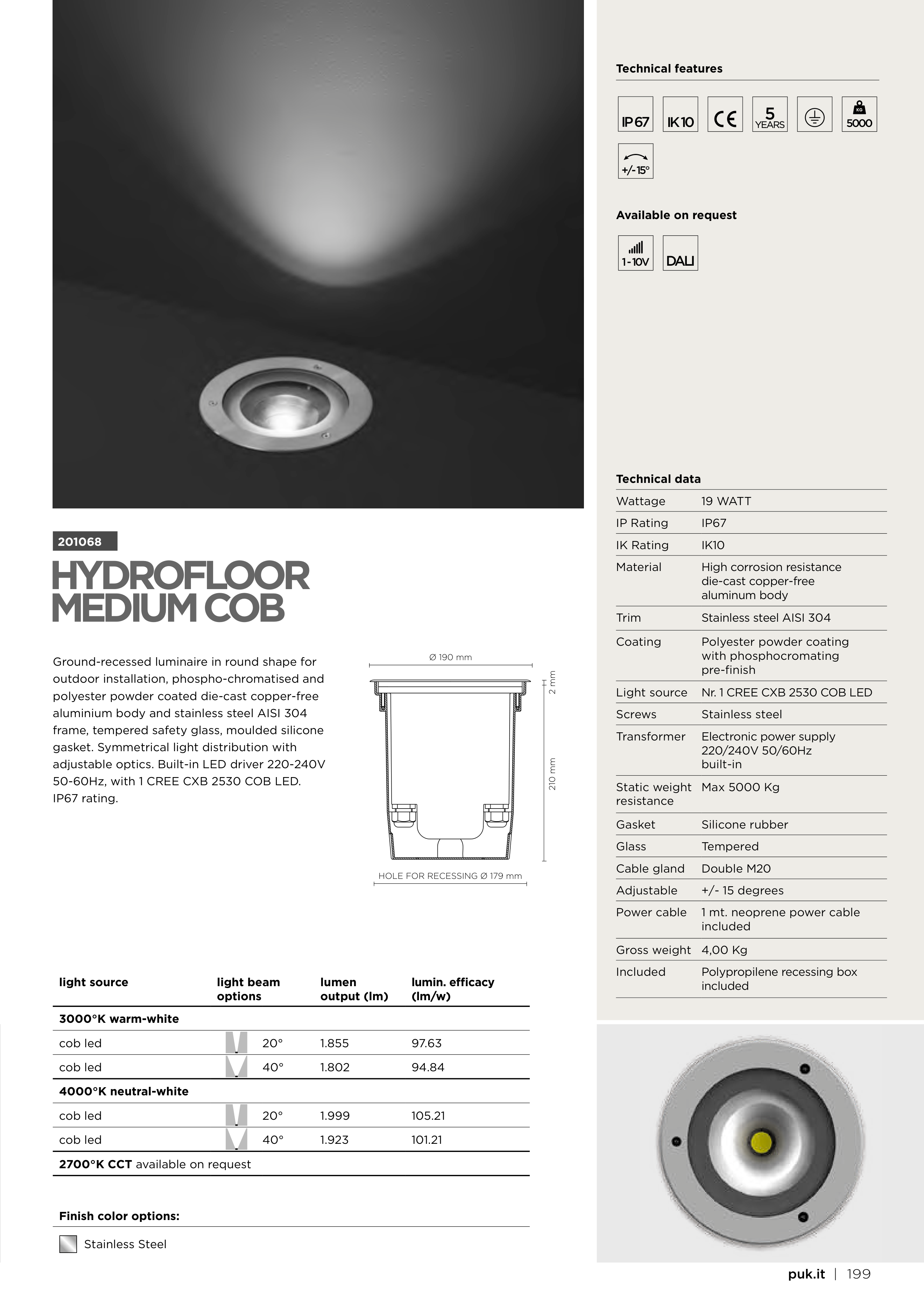

HYDROFLOOR
MEDIUM COB
201068
Stainless Steel
Finish color options:
5
+/- 15°
5000
Technical data
Wattage
8 WATT
IP Rating
IP67
IK Rating
IK10
Material
Completely made in
stainless steel AISI 316
Trim
Stainless steel AISI 316
Light source
N. 5 x 1.5W CREE “XP-G3” LED
Screws
Stainless steel
Transformer
Electronic power supply
220/240V 50/60Hz
built-in
Static weight
resistance
Max 5000 Kg
Gasket
Silicone rubber
Glass
Tempered
Cable gland
Double M20
Adjustable
+/- 15 degrees
Power cable
1 mt. neoprene power cable
included
Gross weight
2,50 Kg
Included
Polypropilene recessing box
included
light source
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
3000°K warm-white
cob led
20°
1.855
97.63
cob led
40°
1.802
94.84
4000°K neutral-white
cob led
20°
1.999
105.21
cob led
40°
1.923
101.21
2700°K CCT available on request
Ø 190 mm
HOLE FOR RECESSING Ø 179 mm
210 mm
2 mm
Available on request
DALI
1 - 10V
