Technical data
Wattage
32 WATT
IP Rating
IP67
IK Rating
IK10
Material
high corrosion resistance
die-cast copper-free aluminum
Trim
Stainless steel AISI 316L
Coating
polyester powder coating with
phosphocromating pre-finish
Light Source
Nr. 1 CREE CXB2540 LED
Screws
Stainless steel
Transformer
Electrical power supply
220/240V 50/60Hz built in
Gasket
Silicone rubber
Glass
Tempered
Cable gland
M20
Power cable
1 mt. neoprene power cable
included
Gross weight
6,50 Kg
AC119
HONEYCOMB LOUVER
FOR TERRA MAXI
ACCESSORIES

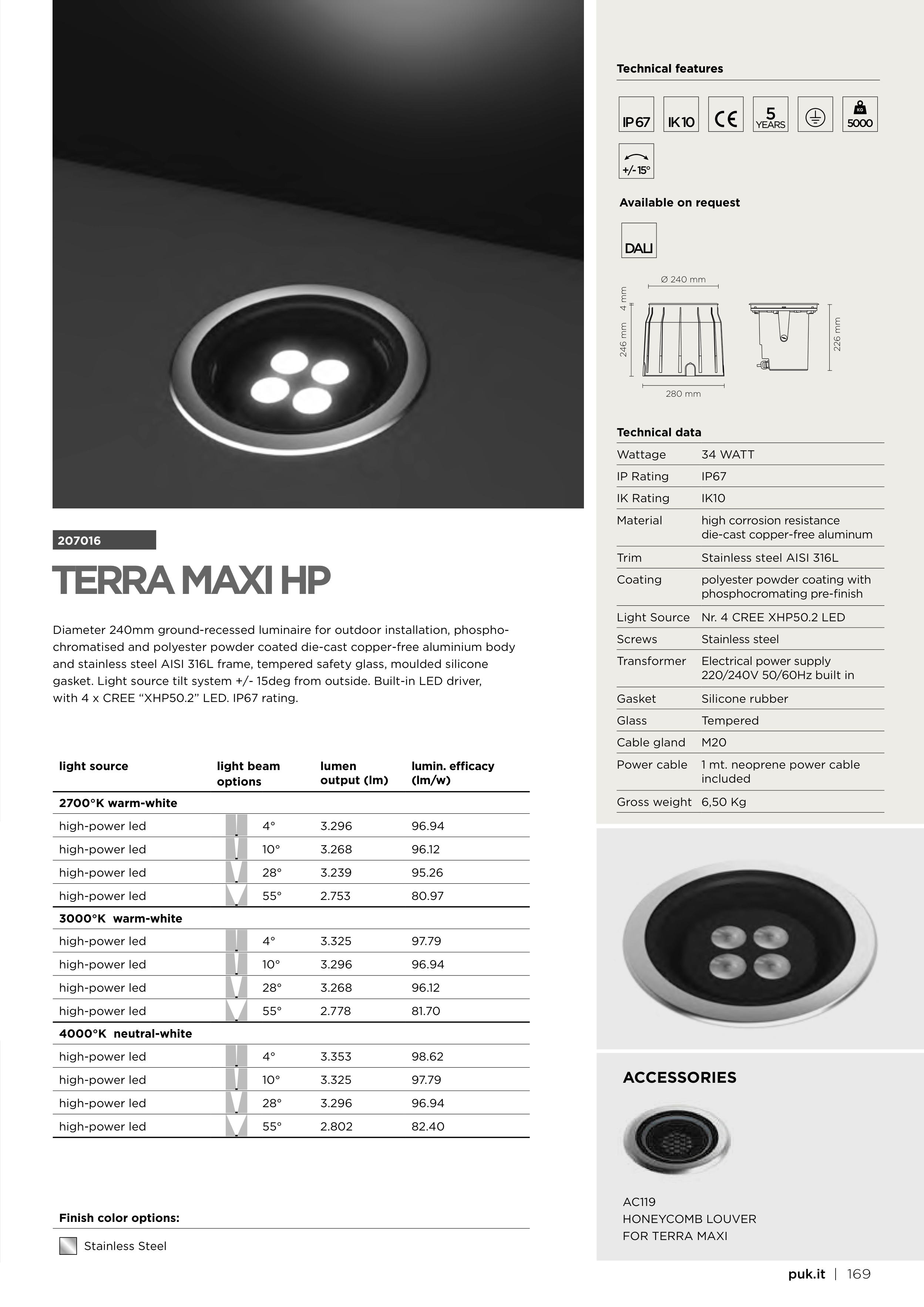

TERRA MAXI HP
207016
Diameter 240mm ground-recessed luminaire for outdoor installation, phospho-
chromatised and polyester powder coated die-cast copper-free aluminium body
and stainless steel AISI 316L frame, tempered safety glass, moulded silicone
gasket. Light source tilt system +/- 15deg from outside. Built-in LED driver,
with 4 x CREE “XHP50.2” LED. IP67 rating.
light source
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
2700°K warm-white
high-power led
4°
3.296
96.94
high-power led
10°
3.268
96.12
high-power led
28°
3.239
95.26
high-power led
55°
2.753
80.97
3000°K warm-white
high-power led
4°
3.325
97.79
high-power led
10°
3.296
96.94
high-power led
28°
3.268
96.12
high-power led
55°
2.778
81.70
4000°K neutral-white
high-power led
4°
3.353
98.62
high-power led
10°
3.325
97.79
high-power led
28°
3.296
96.94
high-power led
55°
2.802
82.40
Technical features
Technical data
Wattage
34 WATT
IP Rating
IP67
IK Rating
IK10
Material
high corrosion resistance
die-cast copper-free aluminum
Trim
Stainless steel AISI 316L
Coating
polyester powder coating with
phosphocromating pre-finish
Light Source
Nr. 4 CREE XHP50.2 LED
Screws
Stainless steel
Transformer
Electrical power supply
220/240V 50/60Hz built in
Gasket
Silicone rubber
Glass
Tempered
Cable gland
M20
Power cable
1 mt. neoprene power cable
included
Gross weight
6,50 Kg
Technical features
5
+/- 15°
5000
DALI
Available on request
Stainless Steel
Finish color options:
Ø 240 mm
246 mm
280 mm
226 mm
4 mm
AC119
HONEYCOMB LOUVER
FOR TERRA MAXI
ACCESSORIES
