Projector for outdoor installation on a
façade/wall. Completely realized in stainless
steel AISI 316L, tempered safety glass,
moulded silicone gasket and stainless steel
screws. Constant voltage 24V DC remote
driver needed. With 1 x XP-G3 CREE LED.
IP66 rating.

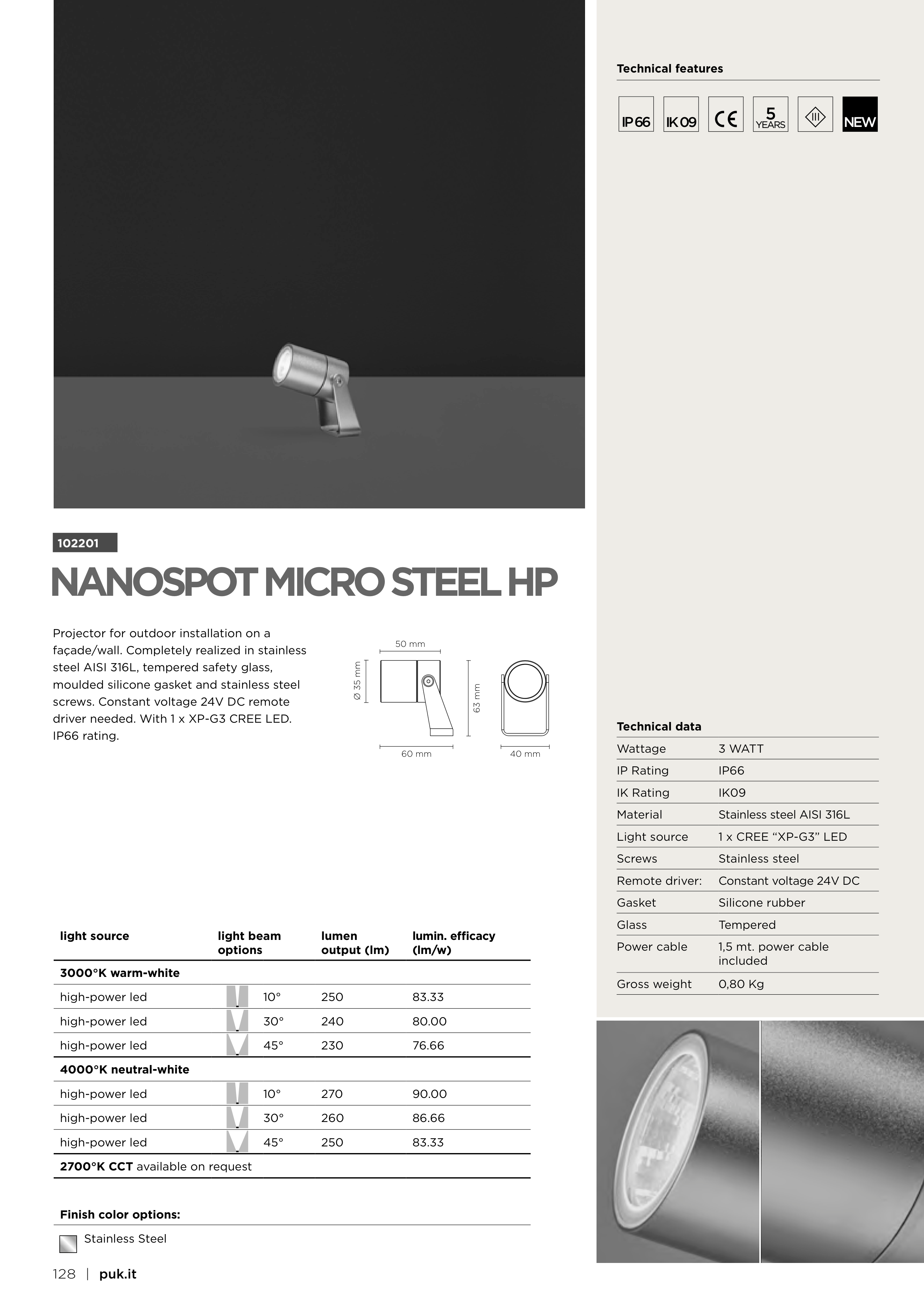

NANOSPOT MICRO STEEL HP
Technical features
5
NEW
Technical data
Wattage
3 WATT
IP Rating
IP66
IK Rating
IK09
Material
Stainless steel AISI 316L
Light source
1 x CREE “XP-G3” LED
Screws
Stainless steel
Remote driver:
Constant voltage 24V DC
Gasket
Silicone rubber
Glass
Tempered
Power cable
1,5 mt. power cable
included
Gross weight
0,80 Kg
102201
light source
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
3000°K warm-white
high-power led
10°
250
83.33
high-power led
30°
240
80.00
high-power led
45°
230
76.66
4000°K neutral-white
high-power led
10°
270
90.00
high-power led
30°
260
86.66
high-power led
45°
250
83.33
2700°K CCT available on request
Finish color options:
63 mm
50 mm
Ø 35 mm
60 mm
40 mm
Stainless Steel
