124 | puk.it
Projector for outdoor installation on a
façade/wall. Body in anodized aluminum
with phospho-chromatised and polyester
powder coating, bracket in stainless
steel, tempered safety glass, moulded
silicone gasket and stainless steel screws.
With 1 direct 220-240V LUMENS “EDC
57C” COB LED. IP66 rating.

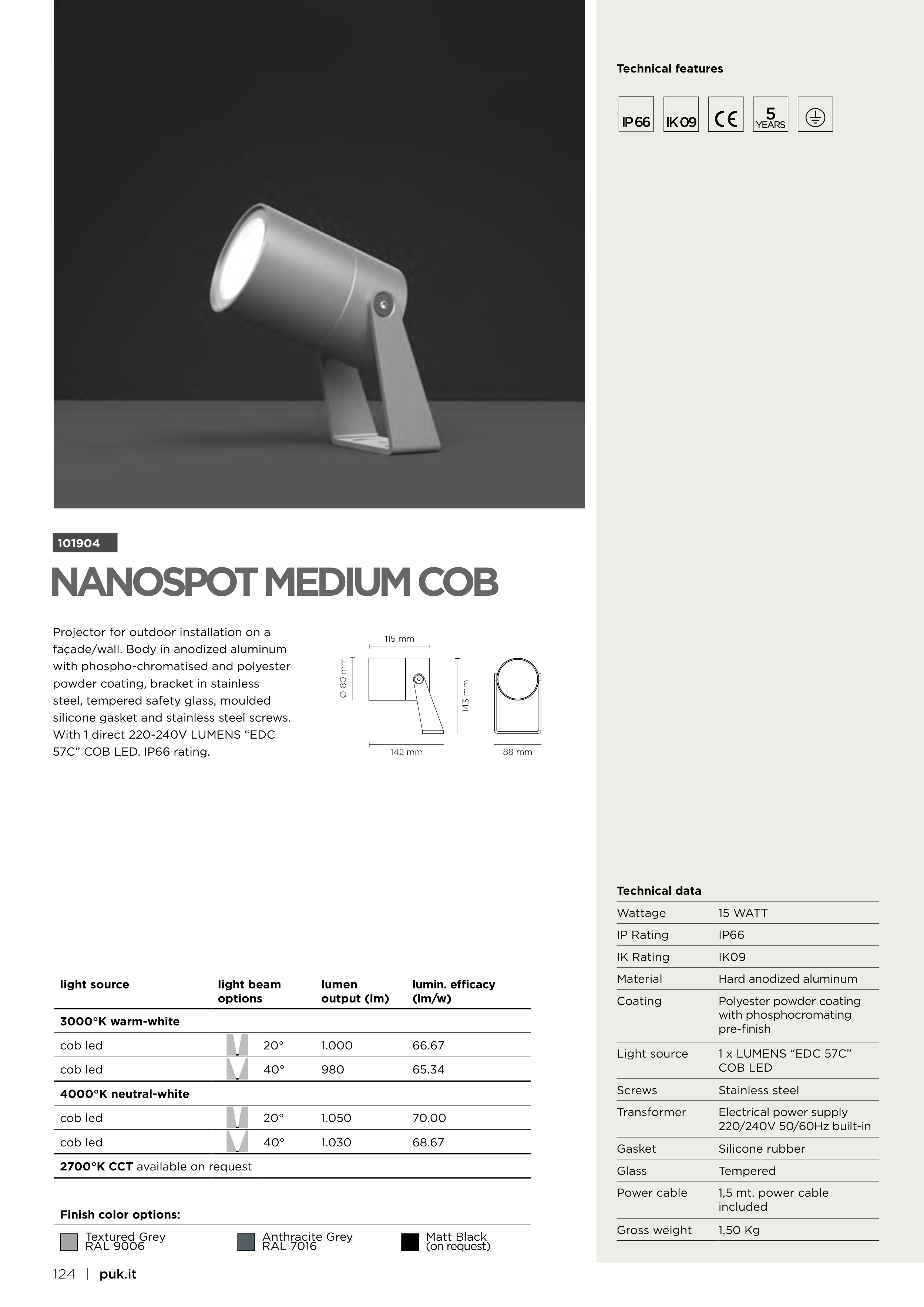

NANOSPOT MEDIUM COB
Technical data
Wattage
15 WATT
IP Rating
IP66
IK Rating
IK09
Material
Hard anodized aluminum
Coating
Polyester powder coating
with phosphocromating
pre-finish
Light source
1 x LUMENS “EDC 57C”
COB LED
Screws
Stainless steel
Transformer
Electrical power supply
220/240V 50/60Hz built-in
Gasket
Silicone rubber
Glass
Tempered
Power cable
1,5 mt. power cable
included
Gross weight
1,50 Kg
101904
light source
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
3000°K warm-white
cob led
20°
1.000
66.67
cob led
40°
980
65.34
4000°K neutral-white
cob led
20°
1.050
70.00
cob led
40°
1.030
68.67
2700°K CCT available on request
Finish color options:
Textured Grey
RAL 9006
Anthracite Grey
RAL 7016
Matt Black
(on request)
Technical features
5
143 mm
115 mm
Ø 80 mm
142 mm
88 mm
