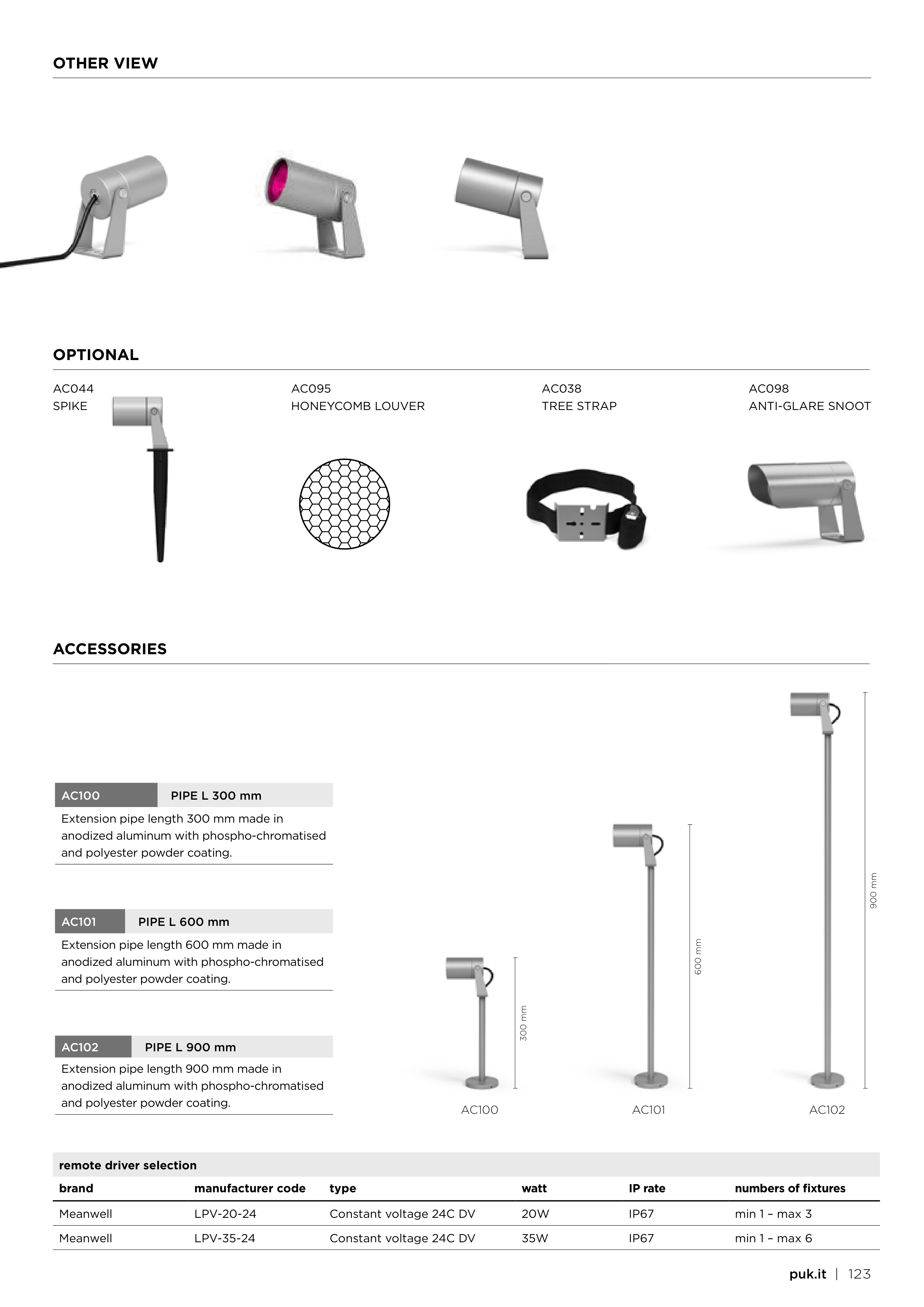

puk.it | 123
ACCESSORIES
900 mm
AC102
300 mm
AC100
600 mm
AC101
AC100
PIPE L 300 mm
Extension pipe length 300 mm made in
anodized aluminum with phospho-chromatised
and polyester powder coating.
AC101
PIPE L 600 mm
Extension pipe length 600 mm made in
anodized aluminum with phospho-chromatised
and polyester powder coating.
AC102
PIPE L 900 mm
Extension pipe length 900 mm made in
anodized aluminum with phospho-chromatised
and polyester powder coating.
Technical data
Wattage
4.5 WATT
IP Rating
IP66
IK Rating
IK09
Material
Hard anodized aluminum
Coating
Polyester powder coating
with phosphocromating
pre-finish
Light source
1 x CREE XM-L RGBW LED
Screws
Stainless steel
Remote driver
Constant voltage 24V DC
DMX interface
not included
Gasket
Silicone rubber
Glass
Tempered
Power cable
1,5 mt. power cable included
Gross weight
0,60 Kg
remote driver selection
brand
manufacturer code
type
watt
IP rate
numbers of fixtures
Meanwell
LPV-20-24
Constant voltage 24C DV
20W
IP67
min 1 – max 3
Meanwell
LPV-35-24
Constant voltage 24C DV
35W
IP67
min 1 – max 6
AC044
SPIKE
AC095
HONEYCOMB LOUVER
AC038
TREE STRAP
OPTIONAL
AC098
ANTI-GLARE SNOOT
OTHER VIEW
