116 | puk.it
Projector for outdoor installation on a
façade/wall. Body in anodized aluminum
with phospho-chromatised and polyester
powder coating, bracket in stainless steel,
tempered safety glass, moulded silicone
gasket and stainless steel screws.
With 1 direct 220-240V LUMENS
“EDC 38C” COB LED. IP66 rating.

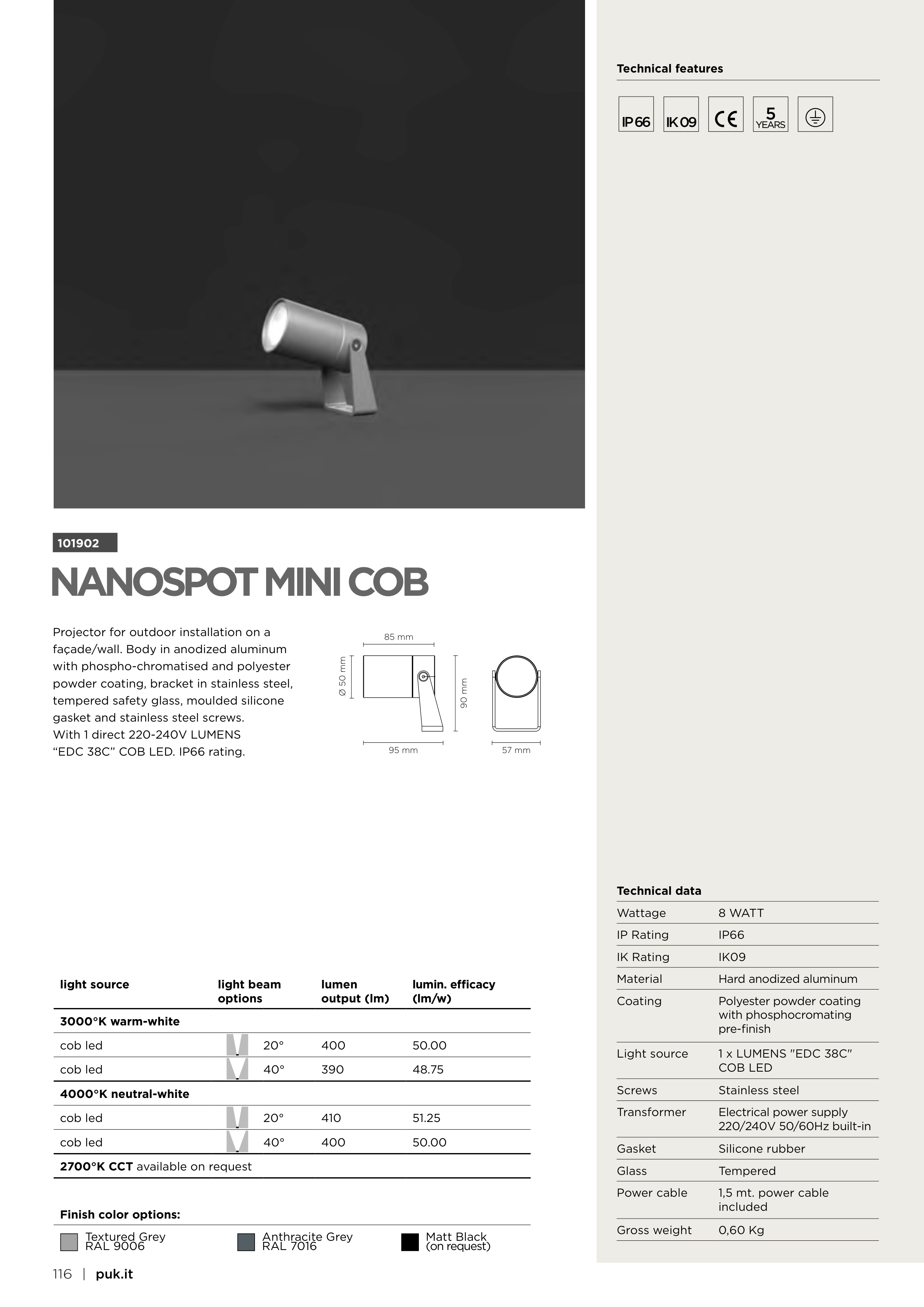

NANOSPOT MINI COB
Technical data
Wattage
8 WATT
IP Rating
IP66
IK Rating
IK09
Material
Hard anodized aluminum
Coating
Polyester powder coating
with phosphocromating
pre-finish
Light source
1 x LUMENS "EDC 38C"
COB LED
Screws
Stainless steel
Transformer
Electrical power supply
220/240V 50/60Hz built-in
Gasket
Silicone rubber
Glass
Tempered
Power cable
1,5 mt. power cable
included
Gross weight
0,60 Kg
101902
light source
light beam
options
lumen
output (lm)
lumin. efficacy
(lm/w)
3000°K warm-white
cob led
20°
400
50.00
cob led
40°
390
48.75
4000°K neutral-white
cob led
20°
410
51.25
cob led
40°
400
50.00
2700°K CCT available on request
Finish color options:
Textured Grey
RAL 9006
Anthracite Grey
RAL 7016
Matt Black
(on request)
Technical features
5
90 mm
85 mm
Ø 50 mm
95 mm
57 mm
