167mm
167mm
22mm
43mm
25mm
1125mm

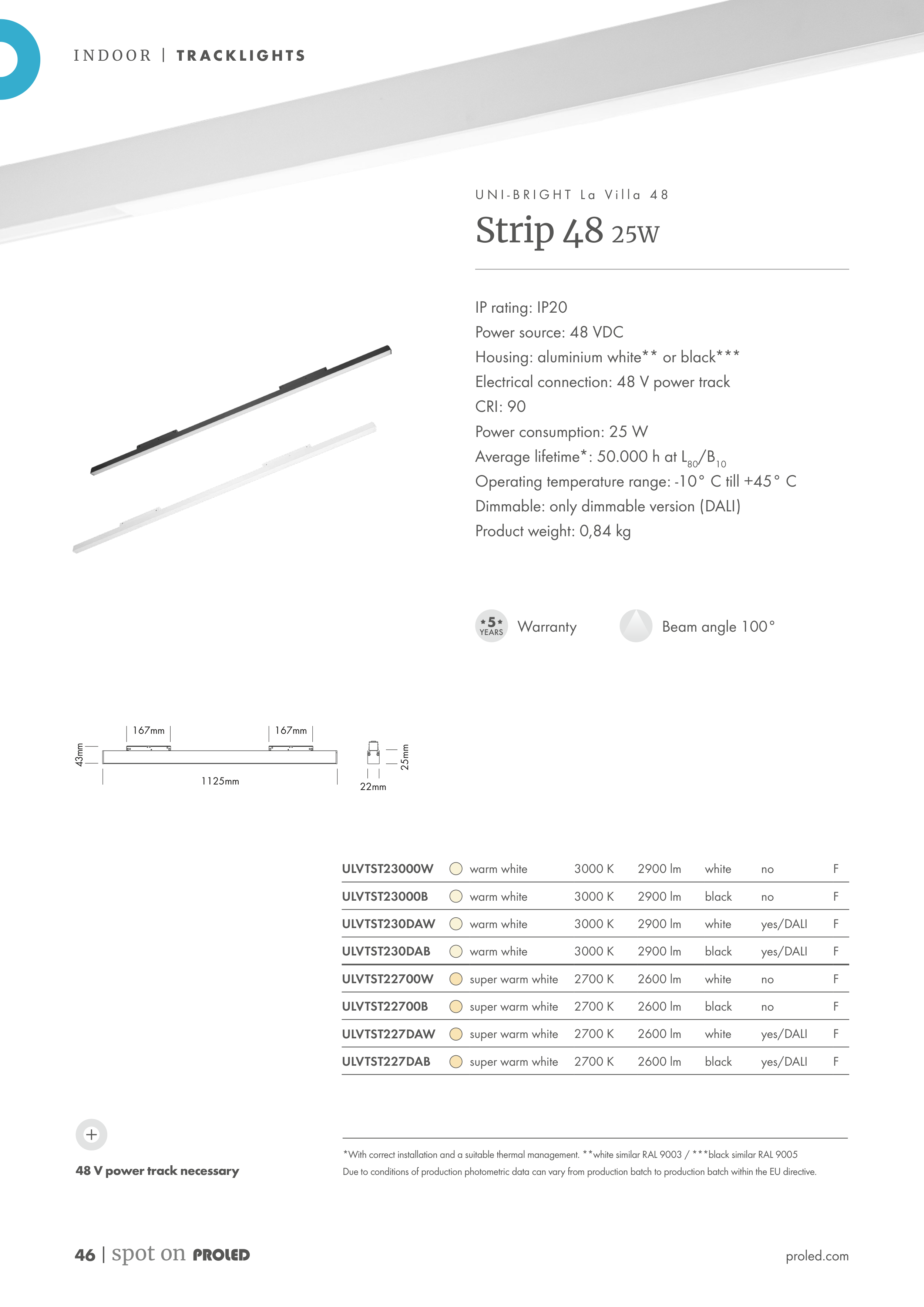

U N I - B R I G H T L a V i l l a 4 8
Strip 48 25W
IP rating: IP20
Power source: 48 VDC
Housing: aluminium white** or black***
Electrical connection: 48 V power track
CRI: 90
Power consumption: 25 W
Average lifetime*: 50.000 h at L80/B10
Operating temperature range: -10° C till +45° C
Dimmable: only dimmable version (DALI)
Product weight: 0,84 kg
*With correct installation and a suitable thermal management. **white similar RAL 9003 / ***black similar RAL 9005
Due to conditions of production photometric data can vary from production batch to production batch within the EU directive.
Warranty
5
YEARS
48 V power track necessary
ULVTST23000W
warm white
3000 K
2900 lm
white
no
F
ULVTST23000B
warm white
3000 K
2900 lm
black
no
F
ULVTST230DAW
warm white
3000 K
2900 lm
white
yes/DALI
F
ULVTST230DAB
warm white
3000 K
2900 lm
black
yes/DALI
F
ULVTST22700W
super warm white
2700 K
2600 lm
white
no
F
ULVTST22700B
super warm white
2700 K
2600 lm
black
no
F
ULVTST227DAW
super warm white
2700 K
2600 lm
white
yes/DALI
F
ULVTST227DAB
super warm white
2700 K
2600 lm
black
yes/DALI
F
Beam angle 100°
proled.com
I N D O O R | T R AC K L I G H T S
46 | spot on
