167mm
106mm
ø75mm

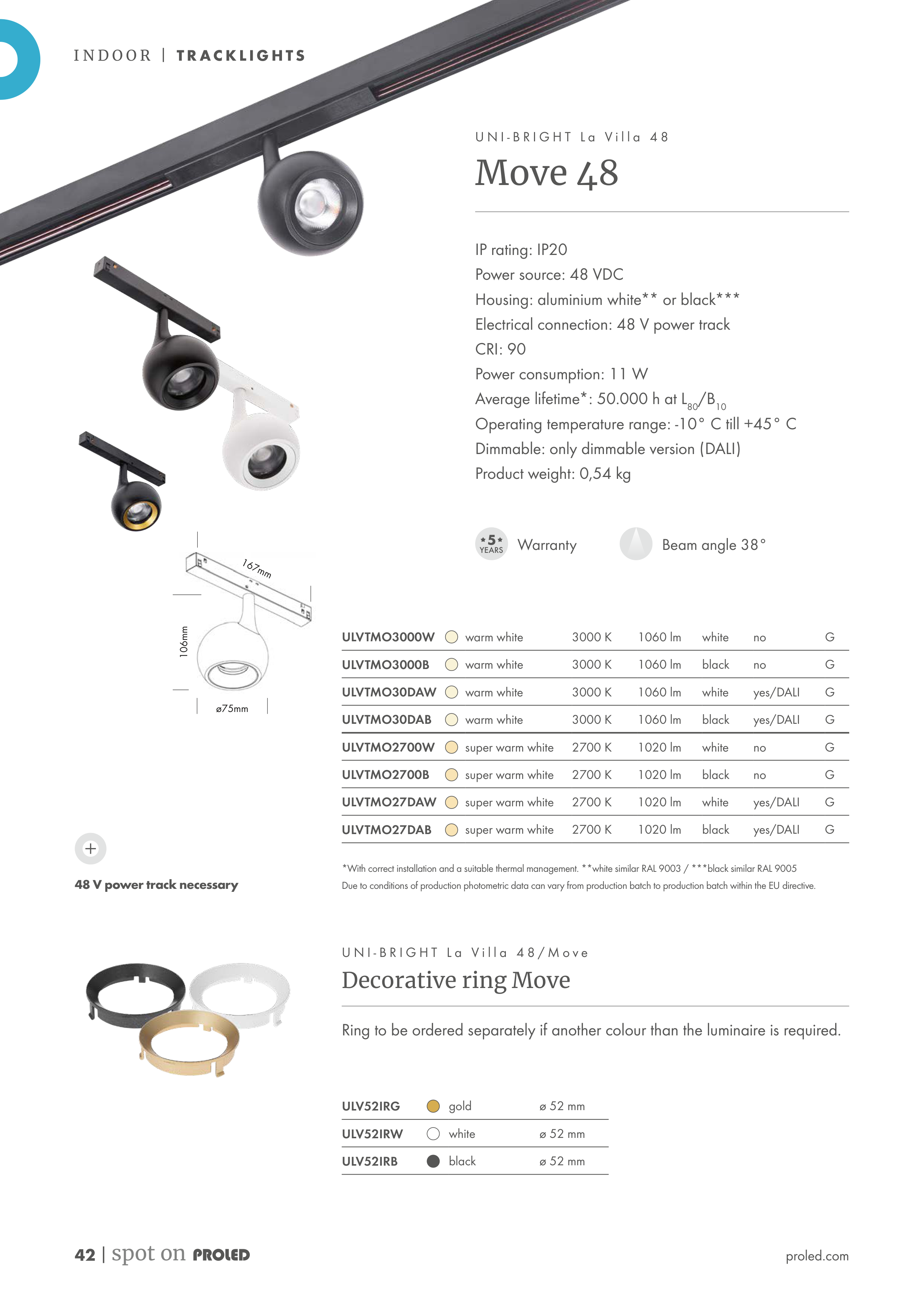

U N I - B R I G H T L a V i l l a 4 8
Move 48
IP rating: IP20
Power source: 48 VDC
Housing: aluminium white** or black***
Electrical connection: 48 V power track
CRI: 90
Power consumption: 11 W
Average lifetime*: 50.000 h at L80/B10
Operating temperature range: -10° C till +45° C
Dimmable: only dimmable version (DALI)
Product weight: 0,54 kg
ULVTMO3000W
warm white
3000 K
1060 lm
white
no
G
ULVTMO3000B
warm white
3000 K
1060 lm
black
no
G
ULVTMO30DAW
warm white
3000 K
1060 lm
white
yes/DALI
G
ULVTMO30DAB
warm white
3000 K
1060 lm
black
yes/DALI
G
ULVTMO2700W
super warm white
2700 K
1020 lm
white
no
G
ULVTMO2700B
super warm white
2700 K
1020 lm
black
no
G
ULVTMO27DAW
super warm white
2700 K
1020 lm
white
yes/DALI
G
ULVTMO27DAB
super warm white
2700 K
1020 lm
black
yes/DALI
G
*With correct installation and a suitable thermal management. **white similar RAL 9003 / ***black similar RAL 9005
Due to conditions of production photometric data can vary from production batch to production batch within the EU directive.
Warranty
5
YEARS
48 V power track necessary
Beam angle 38°
ULV52IRG
gold
ø 52 mm
ULV52IRW
white
ø 52 mm
ULV52IRB
black
ø 52 mm
U N I - B R I G H T L a V i l l a 4 8 / M o v e
Decorative ring Move
Ring to be ordered separately if another colour than the luminaire is required.
proled.com
I N D O O R | T R AC K L I G H T S
42 | spot on
